2853130000 - 32-Pole PCB Connector, 1.27mm Pitch, RoHS Compliant (Pack of 100)

2853130000 - 32-Pole PCB Connector, 1.27mm Pitch, RoHS Compliant (Pack of 100)

SKU: 2853130000 Download PDF

Variant:
  • 2853130000 - 32-Pole PCB Connector, 1.27mm Pitch, RoHS Compliant (Pack of 100)
Now $87.97
BEFORE   $0.00 Now $87.97
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

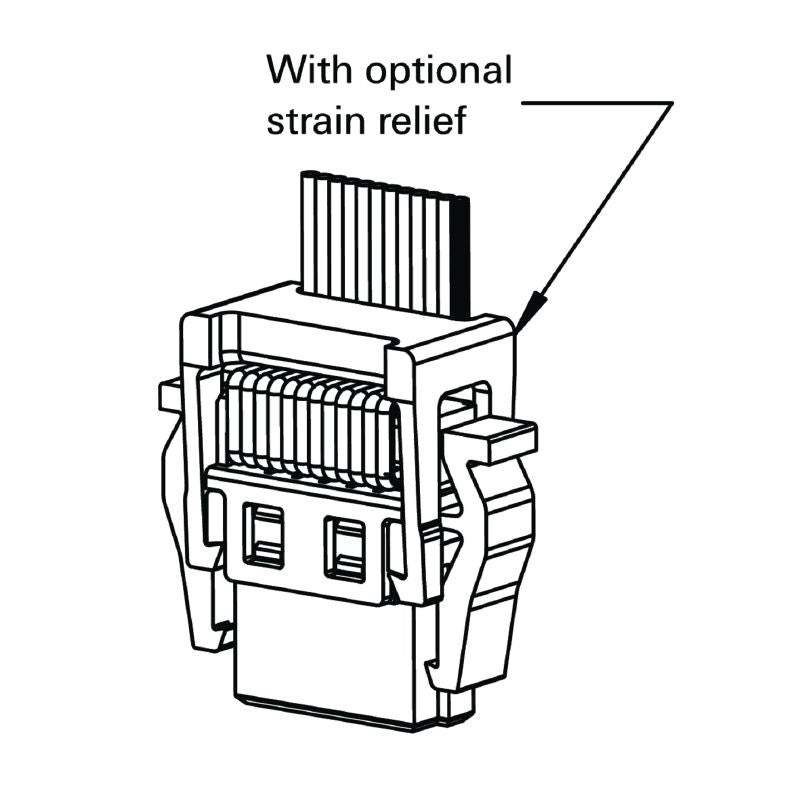

Introducing a versatile PCB plug-in connector, featuring a compact pitch of 127 mm and a robust configuration of 32 poles This item falls under general ordering data and is conveniently packaged in a box containing a total of 100 connectors It adheres to RoHS standards and comes with the necessary certifications for reliable use.

Features and Benefits:

    •UL listed.

    •Compliant without exemption to RoHS.

    •No SVHC above 0.1 wt% in REACH.

    •Developed following international standards and norms.

    •Fulfillment of properties according to IPC-A-610 "Class 2".

Specifications:

 Depth 6.3 mm
 Depth (inches) 0.248 inch
 Height 9.9 mm
 Height (inches) 0.39 inch
 Width 23.82 mm
 Width (inches) 0.938 inch
 Insulating material LCP
 Moisture Level (MSL) 1
 UL 94 flammability rating V-0
 Contact material Cu-alloy
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Operating temperature, min. -55 °C
 Operating temperature, max. 125 °C
 Packaging Box
 VPE length 120 mm
 VPE width 100 mm
 VPE height 80 mm
 ETIM Classification {'ETIM 6.0': 'EC002943', 'ETIM 7.0': 'EC002943', 'ETIM 8.0': 'EC002943', 'ETIM 9.0': 'EC002943', 'ETIM 10.0': 'EC002943'}
 ECLASS Classifications {'ECLASS 9.0': '27-44-04-92', 'ECLASS 9.1': '27-44-04-92', 'ECLASS 10.0': '27-44-04-92', 'ECLASS 11.0': '27-46-04-02', 'ECLASS 12.0': '27-46-04-02', 'ECLASS 13.0': '27-46-04-02', 'ECLASS 14.0': '27-46-04-02', 'ECLASS 15.0': '27-46-04-02'}
