2795100000 - IP67 Rated M8 PCB Connector with 90° Elbow and Solder Pins (Pack of 100)

Description:

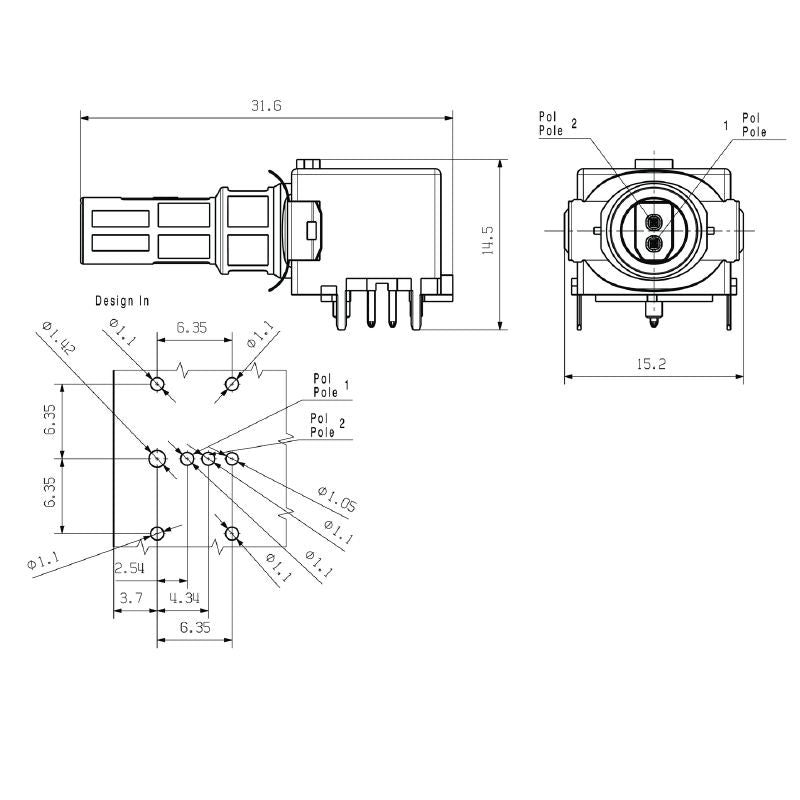

Introducing the IE-PCB-SPM-P-90-THR, a reliable electronic component designed for robust performance This product comes equipped with integrated M8 PCB plugs and a solder connection, achieving an impressive IP67 waterproof rating for added protection Featuring a 90° outgoing elbow, it is tailored for THT/THR soldering techniques and encompasses 2 poles Measurement-wise, it boasts a compact depth of 31.

6 mm, height of 145 mm, and width of 152 mm, with a lightweight construction of only 814 g This component functions efficiently within a temperature range of -40 °C to 85 °C Conveniently packaged on tape, it’s an excellent choice for your electronic assembly needs.

Features and Benefits:

•RoHS compliant without exemption.

•Suitable for solder connections with a performance category of T1-B, supporting data rates of 10/100/1000 MBit/s.

•Offers more than 100 plugging cycles.

•Includes shielding.

•Designed to accommodate various soldering processes including reflow, manual, and wave soldering.

Specifications:
