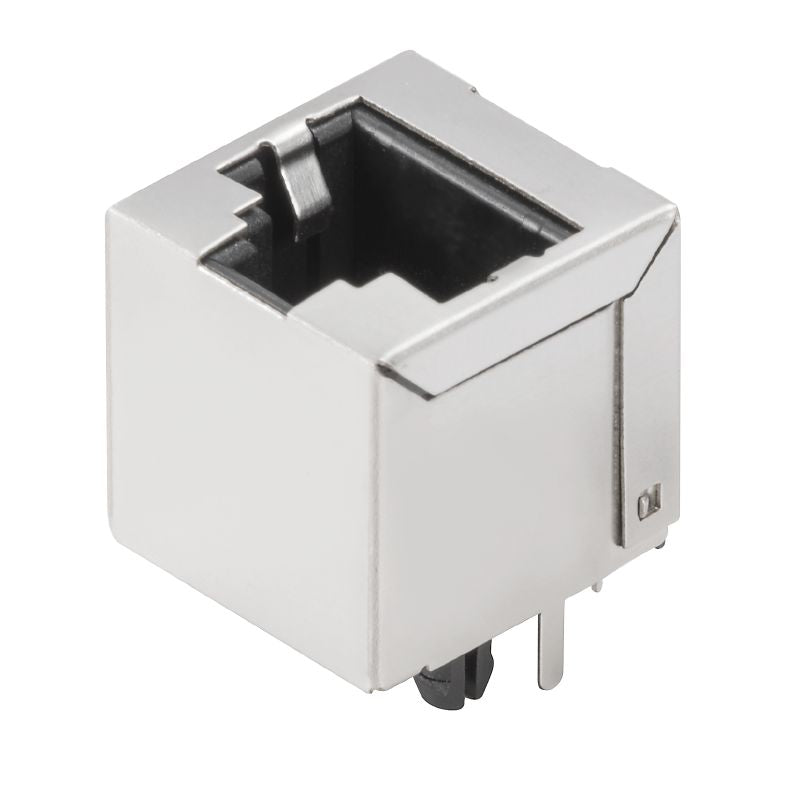

2562970000 - Cat. 5 PCB Modular Jack, 180° Angle, RoHS Compliant (Pack of 200)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust modular jack tailored for PCB applications, this Cat 5 connector features a convenient 180-degree angled design and is compatible with THT/THR soldering methods It is built to withstand up to 750 plugging cycles and incorporates 8 poles for reliable connectivity The jack showcases a nickel-plated, shielded construction crafted from brass, ensuring excellent protection without any tabs.

Fully compliant with RoHS regulations, it meets strict environmental standards, while its REACH status confirms that it contains no substances of very high concern (SVHC) exceeding 01 wt% Engineered for superior electrical performance, this jack boasts a dielectric strength of 1000 V DC from contact to contact and 1500 V DC from contact to shield Operating at a nominal voltage of 125 V, it also supports POE and POE+ functionalities as per IEEE 802.

3at specifications, facilitating a rated current of 15 A Upgrade your PCB connectivity solutions with this reliable modular jack.

Features and Benefits:

•Compliant with RoHS regulations.

•Designed for THT/THR solder connections.

•Operates at high dielectric strengths.

•Supports POE functionality.

Specifications:
