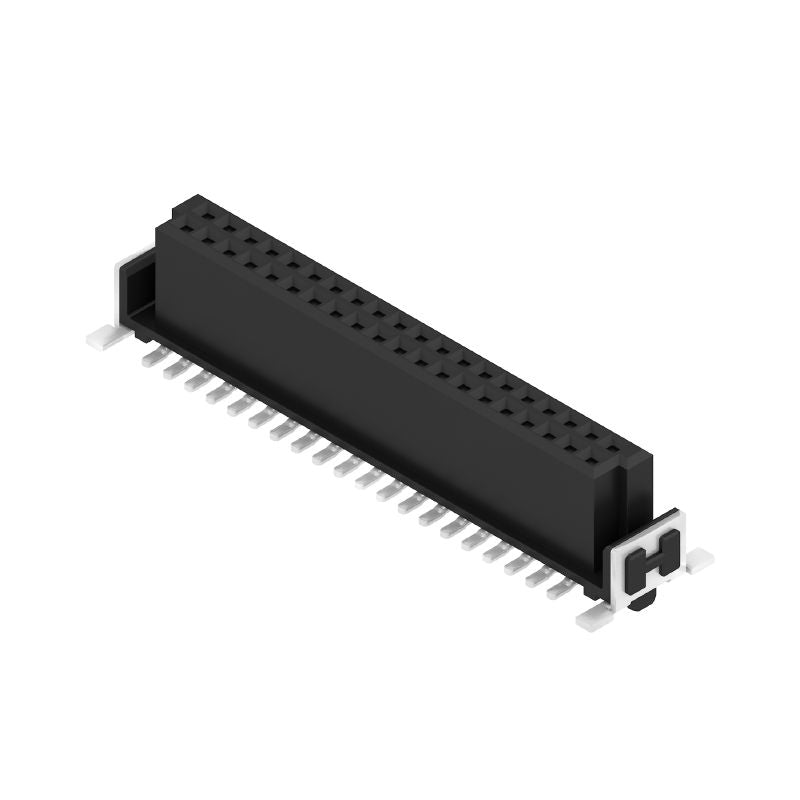

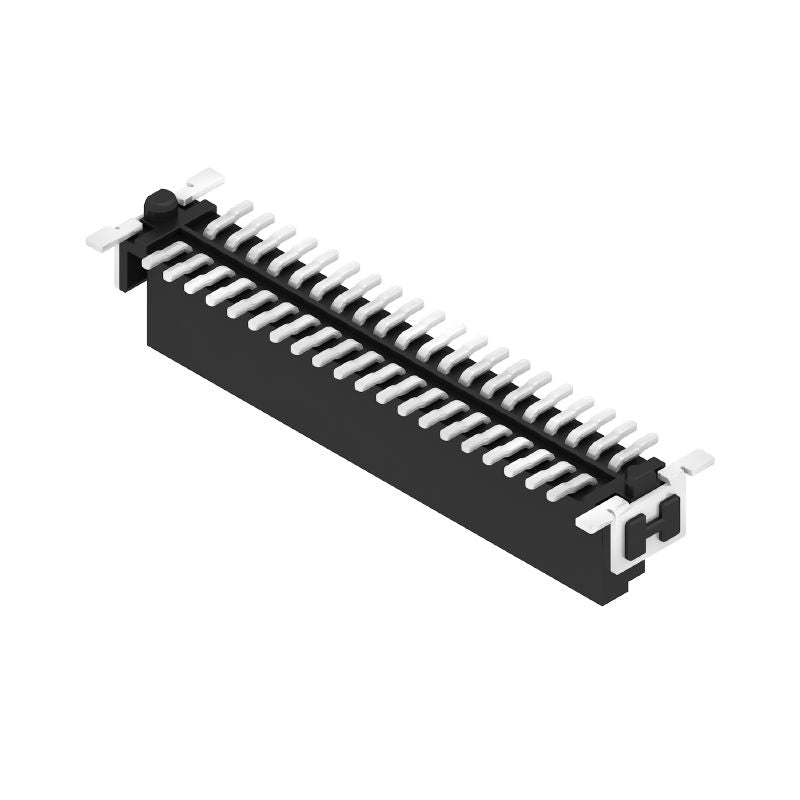

2747300000 - 40-Pole SMD Connector, 1.27mm Pitch, 7.8mm Depth (Pack of 280)

Description:

Optimize your connections with this PCB plug-in connector featuring a female header and SMD solder connection Designed with a compact 127 mm pitch, this connector supports 40 poles and includes a 180° outgoing elbow for versatile board-to-board applications It complies with RoHS standards and is provided in convenient tape packaging for easy handling The connector boasts an impressive transmission rate of 3.

125 Gbit/s and is part of the OMNIMATE Signal series, ensuring reliability in signal processing With dimensions of 3048 mm in width, 71 mm in height, and 78 mm in depth, it has a net weight of 6429 grams Engineered to perform within a temperature range of -55 °C to 125 °C, it also supports a rated current of 28 A in accordance with IEC standards.

Features and Benefits:

•Compliant with RoHS regulations.

•Tape packaging for efficient delivery.

•High transmission rate of 3.125 Gbit/s.

•Designed for board-to-board connections.

•Operates within a wide temperature range from -55 °C to 125 °C.

•Suitable for high-density applications.

•Used in electronic circuit connections.

•Compatible with board-to-board applications.

Specifications:
