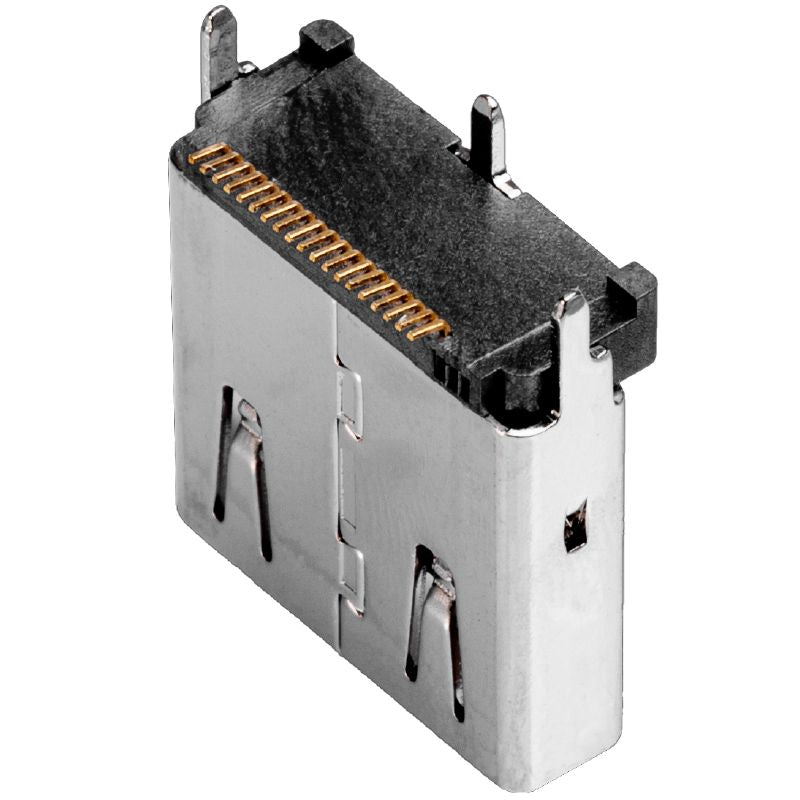

3107660000 - 5-Pole LCP HDMI Connector, 180° Angle, 100 MBit/s (Pack of 1600)

SKU: SKU: 3107660000 Download PDF

Select a Variant:

3107660000 - 5-Pole LCP HDMI Connector, 180° Angle, 100 MBit/s (Pack of 1600)

SET THE QTY:

Now $1,008.68 Web pricing policy

~~BEFORE $0.00~~ Now $1,008.68 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

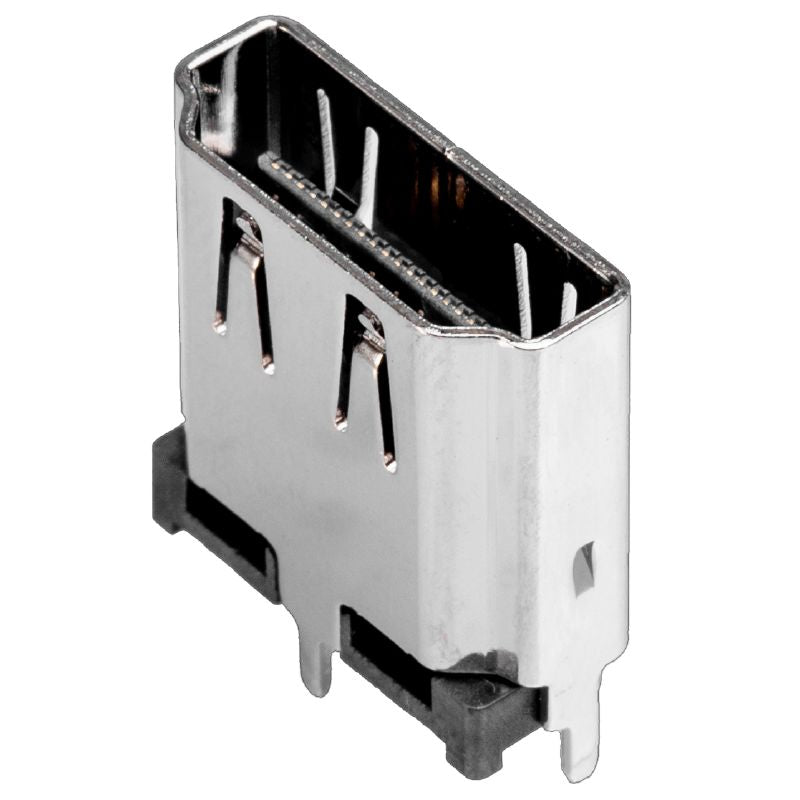

Introducing the HDMI A S1V 19N1 RL, featuring a female header engineered for SMD soldering at a 180-degree angle With an impressive data transfer rate of 100 MBit/s, this durable component can withstand more than 10,000 insertion cycles Constructed from LCP materials and finished with a gold over nickel coating, it boasts five poles for reliable performance in various applications Perfect for your electronic projects requiring enhanced connectivity.

Features and Benefits:

•Compliant with RoHS standards.

•LCP insulating material.

•IP20 protection degree.

•Suitable for both reflow and manual soldering.

•Low pulling force requirement of 10 N per pole.

•Stable insulation resistance of ≥ 100 MΩ.

•Nickel-plated shield surface for enhanced durability.

•Octagonal solder pin dimensions for better soldering.

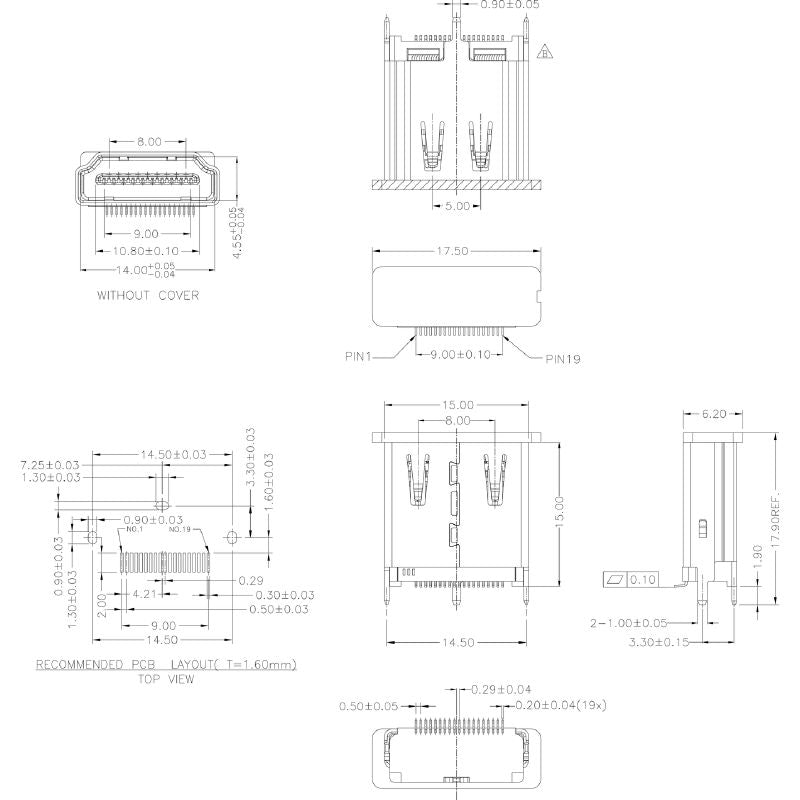

Specifications:

Depth	6.2 mm
Height	15 mm
Width	15 mm
Pitch (inches)	0.02
Pitch (mm)	0.5
Plugging cycles	≥ 10000
Plugging force/pole (max.)	35 N
Transmission rate	100 MBit/s
Dielectric strength (contact/contact)	500 V AC / 1 min
Volume resistance	≤10 mΩ
Moisture Level (MSL)	1
UL 94 flammability rating	V-0
Storage temperature (min)	-20 °C
Storage temperature (max)	65 °C
Operating temperature (min)	-20 °C
Operating temperature (max)	65 °C
