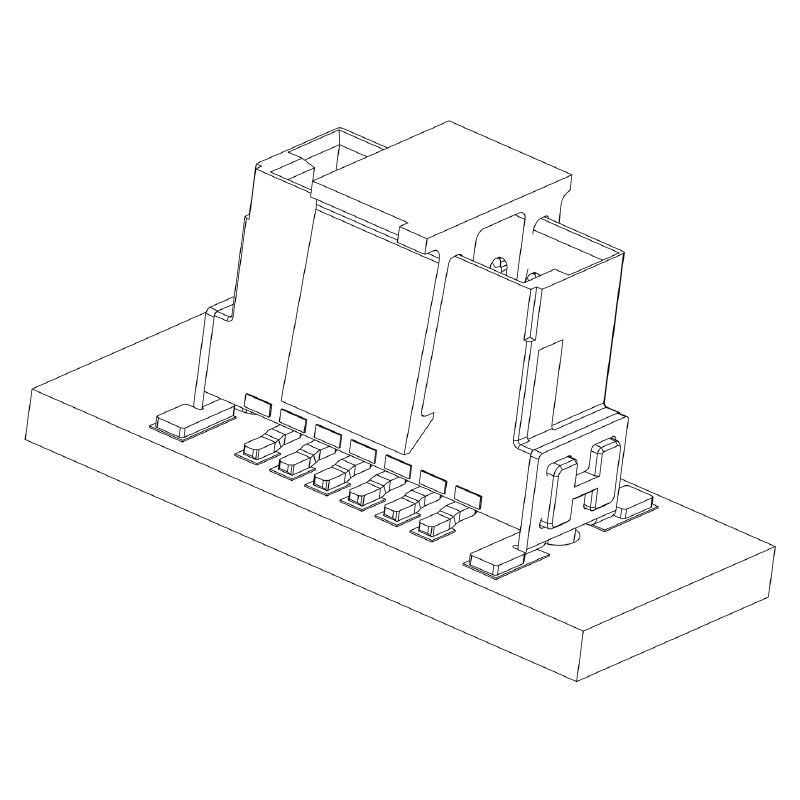

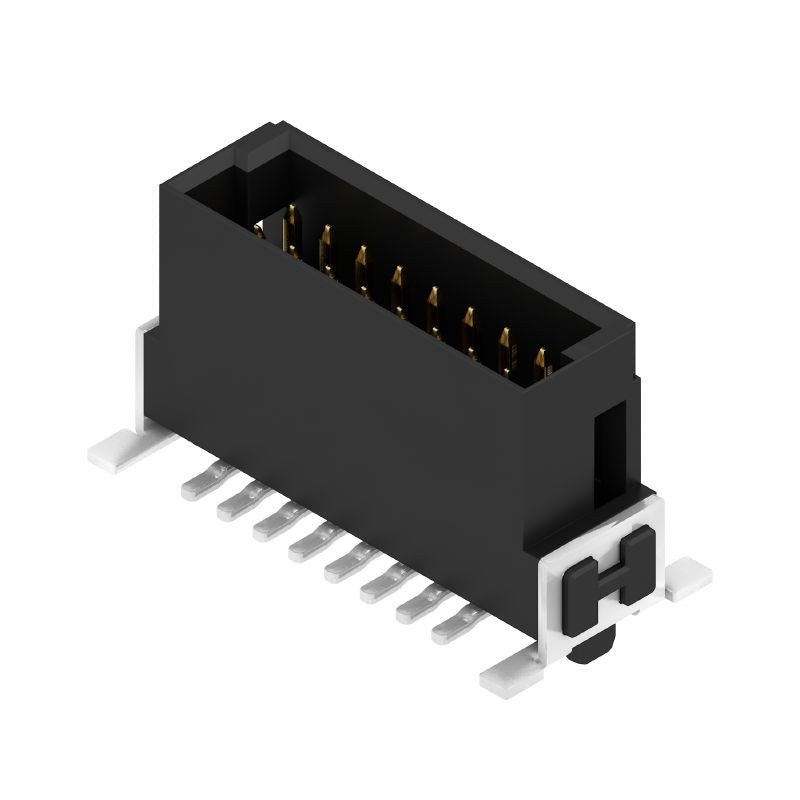

2747080000 - 16-Pole SMD PCB Connector, 1.27mm Pitch, 180° Elbow (Pack of 280)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FMH3 S1/16V F1 B RL male header PCB connector, engineered for efficient SMD solder connections with a compact 127 mm pitch This connector boasts 16 poles and comes with a 180° angled elbow for flexible wiring options It is delivered on tape packaging for easy handling Meeting RoHS and IEC compliance, this connector can carry up to 28 A of current and withstands voltage levels of up to 150 V, making it a reliable choice for various electronic applications.

Features and Benefits:

•Operating temperature range from -55 °C to 125 °C.

•Rated current of 2.8 A.

•180° outgoing elbow configuration.

•Volume resistance of less than 25 mΩ.

•500 plugging cycles.

•Insulation resistance of at least 10^10 Ω.

•IP20 protection degree.

•Conforms to IPC-A-610 Class 2 standards.

•Used in board-to-board connections.

Specifications:
