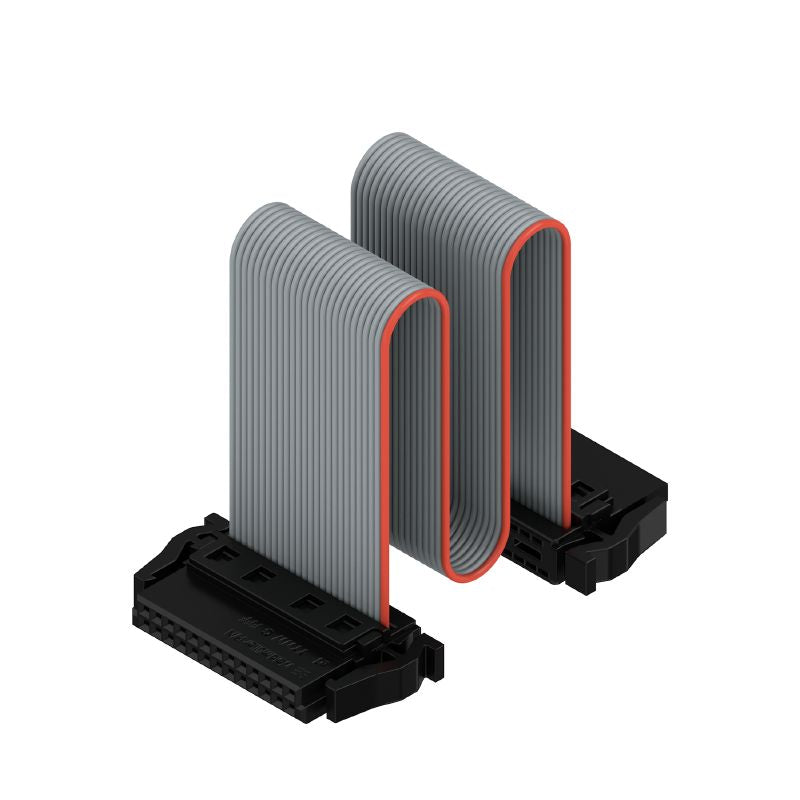

2827070000 - 26-Pole RoHS Female Plug PCB Connector, 1.27mm Pitch (Pack of 10)

SKU: SKU: 2827070000 Download PDF

Select a Variant:

2827070000 - 26-Pole RoHS Female Plug PCB Connector, 1.27mm Pitch (Pack of 10)

SET THE QTY:

Now $192.59 Web pricing policy

~~BEFORE $0.00~~ Now $192.59 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the convenience of this female plug PCB connector, featuring a compact pitch of 127 mm and a robust design with 26 poles Packaged in sets of 10, this connector adheres to RoHS standards, ensuring safe and eco-friendly use It utilizes insulation displacement connection (IDC) technology, making it ideal for board-to-board applications within the OMNIMATE Signal range.

Features and Benefits:

•Insulation displacement connection (IDC) method.

•Number of poles: 26.

•Protection degree: IP20.

•Plugging cycles: 500.

•Max. plugging force/pole: 0.6 N.

•Max. pulling force/pole: 0.6 N.

•Insulating material: LCP.

•Insulation resistance: ≥ 20 MΩ.

•Moisture Level (MSL): 1.

•UL 94 flammability rating: V-0.

•Net weight: 8.7 g.

•Board-to-board connections in electronics.

Specifications:

Length	12.2 mm
Length (inches)	0.48 inch
System Parameters	{'Number of rows': '2', 'Conductor outlet direction': '90°/270°', 'Cable length': '200 mm', 'Rated current, min. number of poles (Tu=20°C)': '1.9 A', 'Rated current, max. number of poles (Tu=40°C)': '1.65 A', 'Clearance, min.': '0.4 mm', 'Creepage distance, min.': '0.4 mm', 'Storage temperature, min.': '-40 °C', 'Storage temperature, max.': '70 °C', 'Operating temperature, min.': '-20 °C', 'Operating temperature, max.': '105 °C', 'Conductors suitable for connection': {'Wire connection cross section AWG, min.': 'AWG 30/1, 30/7', 'Wire connection cross section AWG, max.': 'AWG 30/1, 30/7'}}
Packaging	{'Packaging': 'Box', 'VPE length': '244 mm', 'VPE width': '104 mm', 'VPE height': '40 mm'}
Contact Base Material	Copper alloy
Contact Material	Cu-alloy
Contact Surface	Ni/Au
Layer structure of plug contact	≥ 2 µm Ni / ≥ 0.4 µm PdNi / ≥ 0.05 µm Au
