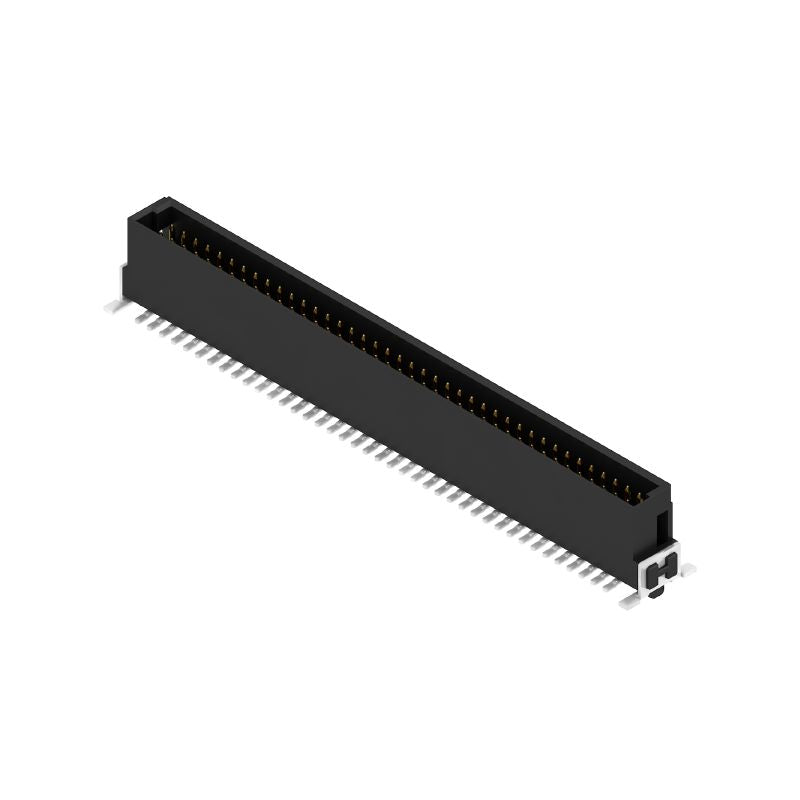

2747150000 - 80-Pole 1.27mm PCB Connector with 180° Elbow (Pack of 280)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile male header PCB plug-in connector tailored for SMD solder applications This connector boasts a compact 127 mm pitch and consists of 80 poles configured with a 180° outgoing elbow Part of the OMNIMATE Signal Board-to-Board series, it meets RoHS standards for environmental compliance Weighing in at 7964 grams, its dimensions are 5588 mm in width, 91 mm in height, and 74 mm in depth.

Built for longevity, this connector is designed to withstand up to 500 plugging cycles, ensuring reliable performance in various applications.

Features and Benefits:

•RoHS compliant without exemption.

•Insulating material type is LCP.

•Insulation resistance is ≥ 10¹⁰ Ω.

•Maximum storage temperature of 70 °C.

•Employed for board connections.

Specifications:
