3107650000 - 90° Female HDMI Connector, 19 Poles, Gold Finish (Pack of 3000)

3107650000 - 90° Female HDMI Connector, 19 Poles, Gold Finish (Pack of 3000)

SKU: 3107650000 Download PDF

Variant:
  • 3107650000 - 90° Female HDMI Connector, 19 Poles, Gold Finish (Pack of 3000)
Now $2,231.26
BEFORE   $0.00 Now $2,231.26
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

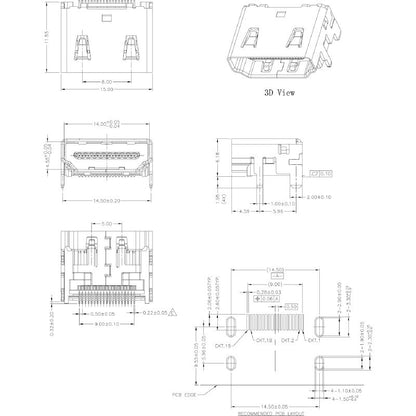

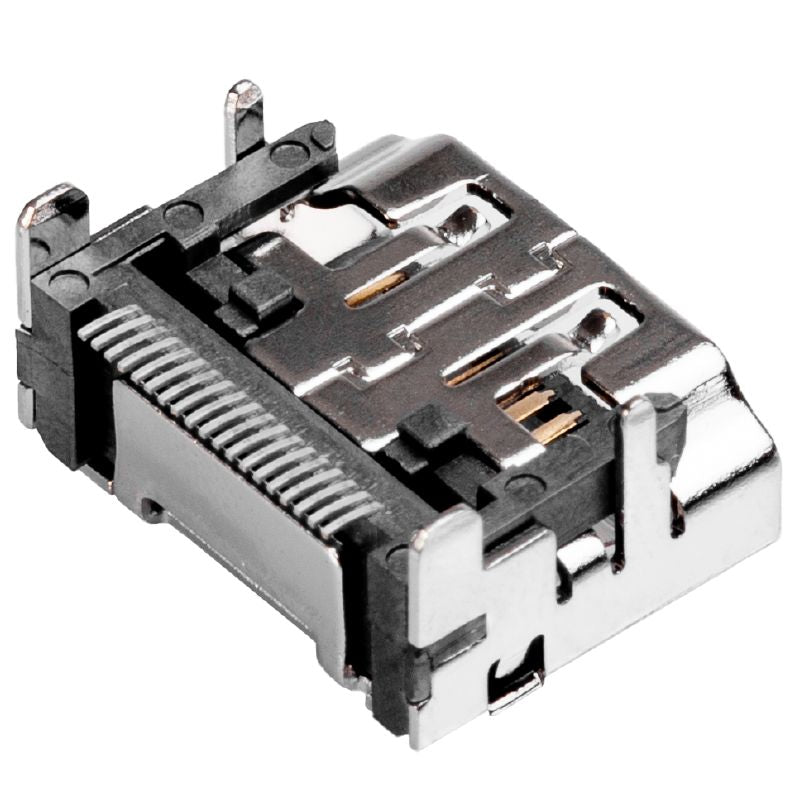

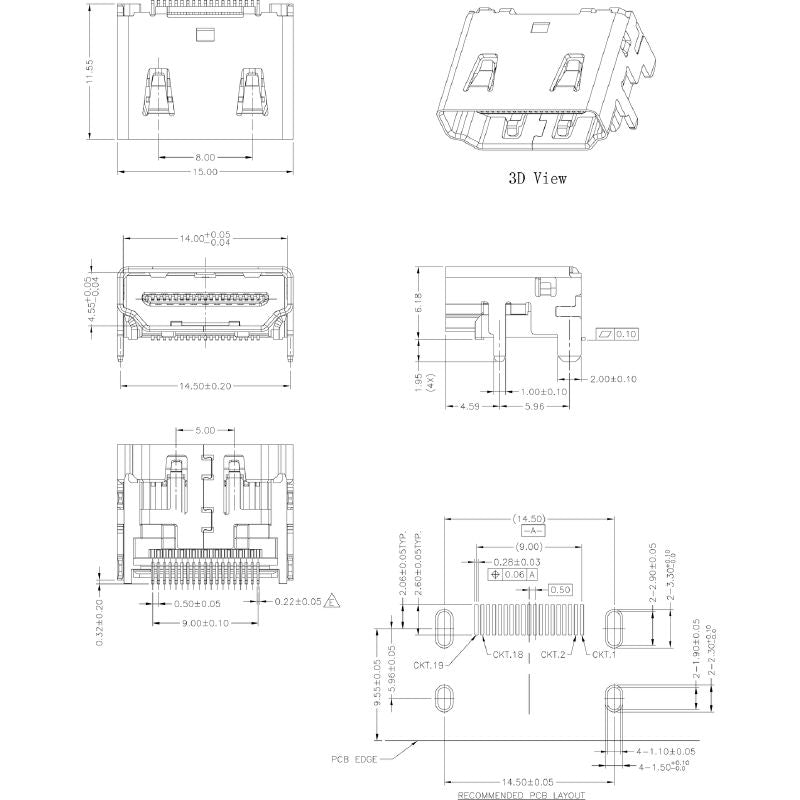

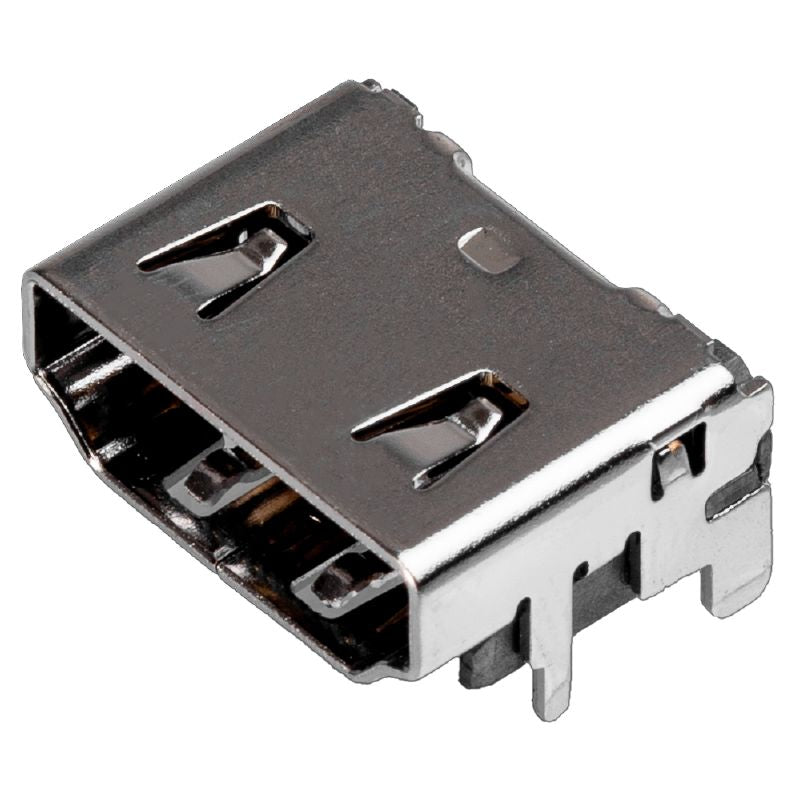

Introducing the HDMI A S1H 20N1 RL, a robust SMD solder connection model designed with a 90° female header This connector boasts an impressive durability of over 10,000 plugging cycles and features 19 pins for versatile connectivity Crafted from LCP and featuring a gold-over-nickel finish, it is both functional and reliable Conveniently packaged on a reel, it's perfect for your electronic assembly needs.

Features and Benefits:

    •Plugging cycles: ≥ 10000.

    •Depth of 11.55 mm (0.455 inch).

    •Height of 6.18 mm (0.243 inch).

    •Width of 15 mm (0.591 inch).

    •Net weight: 0.003 g.

    •RoHS compliant without exemption.

    •Moisture Level (MSL): 1.

    •UL 94 flammability rating: V-0.

Specifications:

 System specifications {'Mounting onto the PCB': 'SMD solder connection', 'Number of poles': '19', 'Number of solder pins per pole': '1', 'Outgoing elbow': '90°', 'Pitch in inches (P)': '0.02', 'Pitch in mm (P)': '0.5 mm', 'Protection degree': 'IP20', 'Shielding': 'Yes', 'Shielding material': 'Copper alloy', 'Type of connection': 'Solder connection'}
 Electrical properties {'Dielectric strength, contact / contact': '500 V AC / 1 min', 'Insulation resistance': '≥ 100 MΩ', 'Nominal voltage': '0.5 V'}
 Material data {'Insulating material': 'LCP', 'Contact base material': 'Copper alloy', 'Contact material': 'Copper alloy', 'Contact surface': 'Gold over nickel'}
 Temperature specifications {'Storage temperature, min.': '-20 °C', 'Storage temperature, max.': '65 °C', 'Operating temperature, min.': '-20 °C', 'Operating temperature, max.': '65 °C'}
 Packaging {'Packaging': 'Reel'}
 Approvals {'RoHS Compliance Status': 'Compliant without exemption', 'REACH SVHC': 'No SVHC above 0.1 wt%'}
