2661710000 - RJ45 PCB Connector, 10 Poles, 90° THT, RoHS Compliant (Pack of 200)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RJ45MP R1D 33E4N RL, a versatile PCB plug-in connector featuring a right-angle bottom connection ideal for THT/THR soldering applications With 10 pins and the capability of enduring up to 750 insertion cycles, this connector is built for longevity It’s constructed from durable PA 9T material and meets RoHS compliance requirements This model enables data transmission rates of 100 MBit/s and is also suitable for Power over Ethernet (PoE) applications, ensuring a strong and dependable connection.

Features and Benefits:

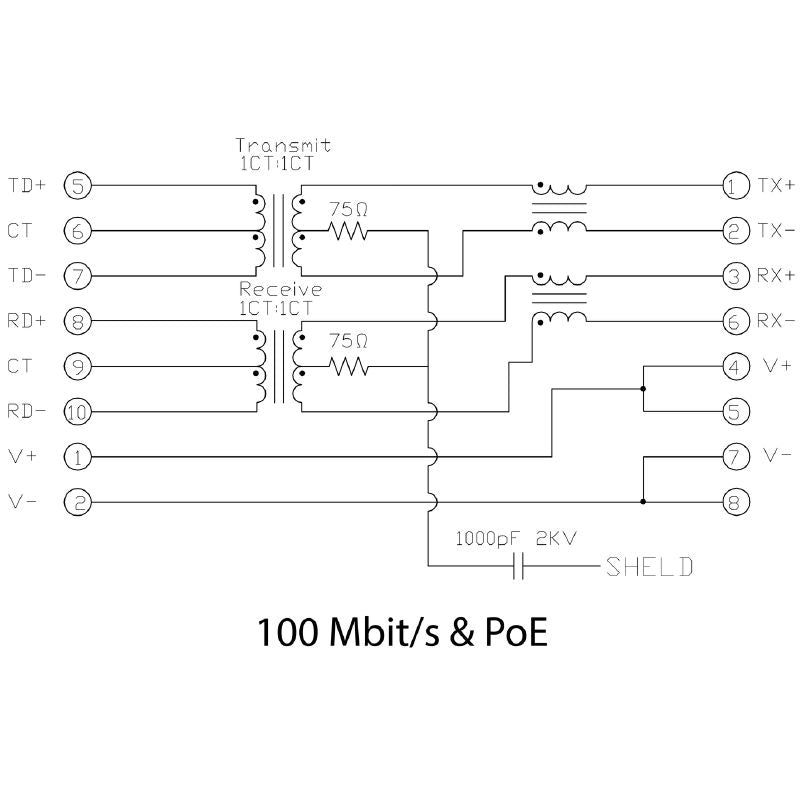

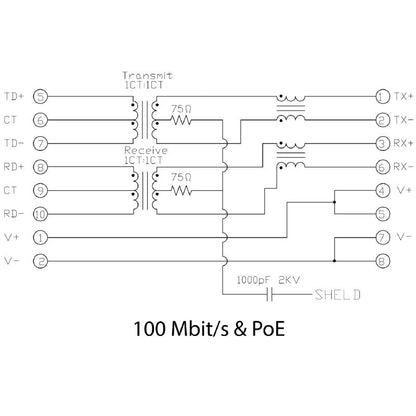

•Supports a transmission rate of 100 MBit/s and is compatible with PoE per IEEE 802.3af.

•Constructed for solder connection with octagonal solder pin dimensions and a length of 3.3 mm.

•Features IP20 protection degree and shielding for improved performance.

•Can withstand a dielectric strength of 1000 V DC contact to contact and 1500 V DC contact to shield.

•Material compliance with RoHS and REACH for environmental safety.

Specifications:
