2562940000 - 90° RJ45 Cat. 5e Modular Jack, 200-Pack (Pack of 200)

SKU: SKU: 2562940000 Download PDF

Variant:

2562940000 - 90° RJ45 Cat. 5e Modular Jack, 200-Pack (Pack of 200)

Now $371.07

~~BEFORE $0.00~~ Now $371.07

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

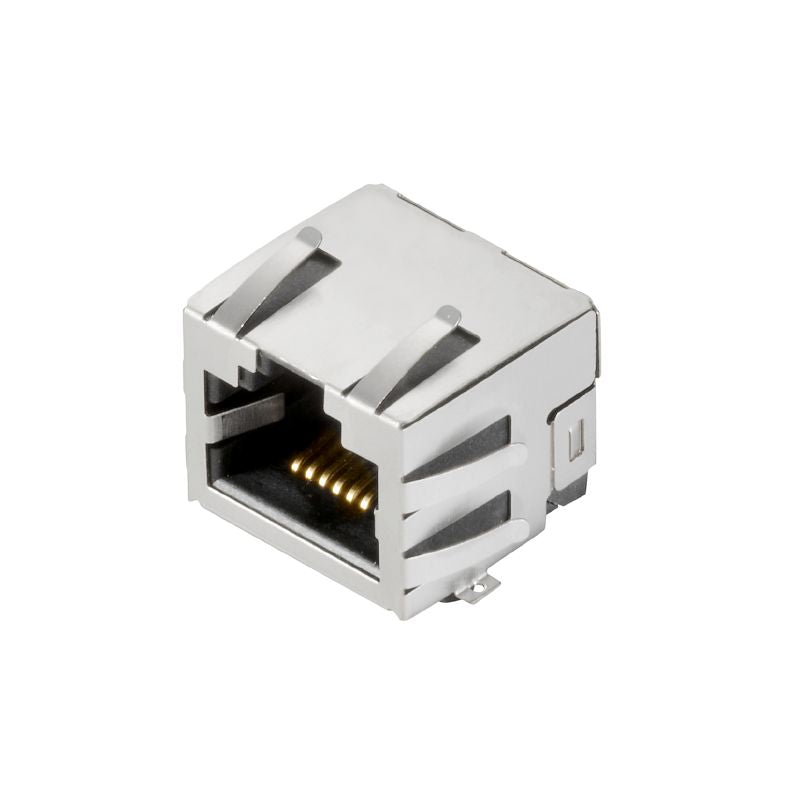

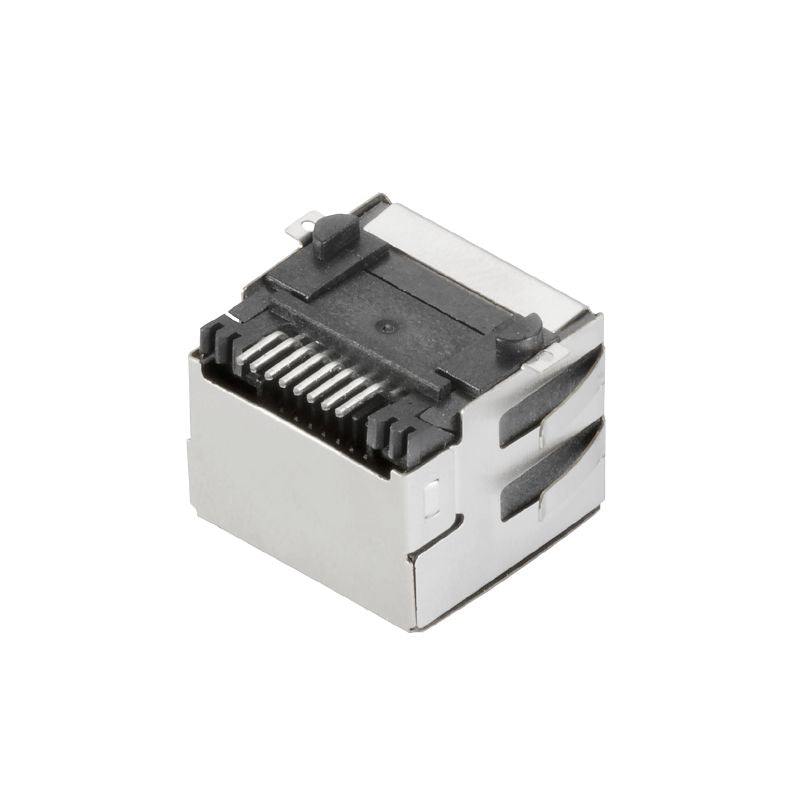

Introducing the OMNIMATE Data RJ45 modular jack, specifically built for PCB plug-in connections that meet the Cat 5e standards With a 90° SMD solder connection and six tabs, this modular jack promises exceptional durability, capable of withstanding up to 750 plugging cycles It is expertly designed for PCB mounting, providing reliable performance in a compact footprint Constructed from high-quality PA 9T material, this product adheres to RoHS compliance standards, ensuring a safe and eco-friendly choice.

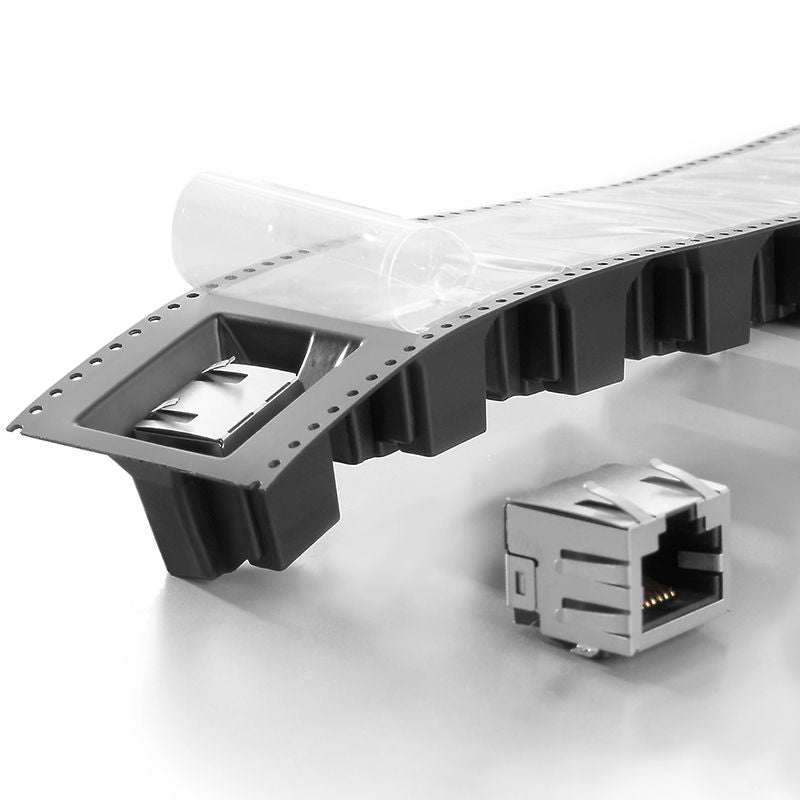

Each package contains 200 units, conveniently arranged on tape for easy handling.

Features and Benefits:

•Compliant with RoHS standards.

•Designed for Cat. 5e category applications.

•SMD solder connection for easy PCB integration.

•Contains 8 poles for enhanced connectivity.

•Features 750 plugging cycles ensuring durability.

•Compact protective design with IP20 rating.

•Suitable for both manual and reflow soldering processes.

•Constructed with a nickel-plated shield for better conductivity.

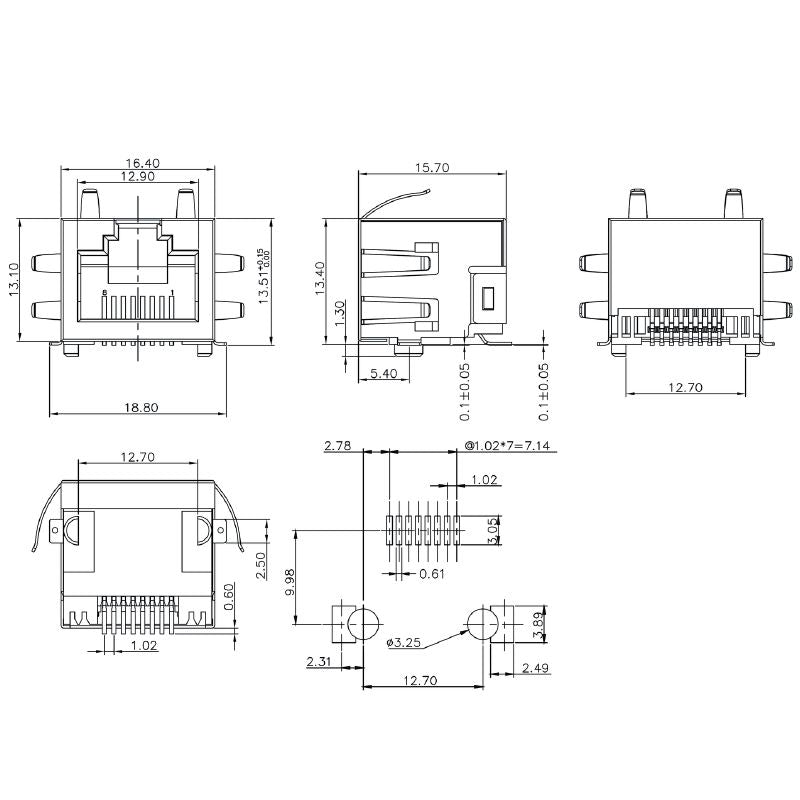

Specifications:

Depth	15.7 mm
Height	14.71 mm
Width	18.8 mm
Pitch in inches (P)	0.05
Pitch in mm (P)	1.27 mm
Plugging cycles	750
Number of solder pins per pole	1
Outgoing elbow	90°
Electrical properties	{'Dielectric strength, contact / contact': '1000 V DC', 'Dielectric strength, contact / shield': '1500 V DC', 'Insulation resistance': '≥ 500 MΩ', 'Nominal voltage': '125 V', 'Rated current': '1.5 A', 'Volume resistance': '<25 mΩ'}
Storage temperature	{'min': '-40 °C', 'max': '85 °C'}
Operating temperature	{'max': '85 °C'}
Material data	{'Insulating material': 'PA 9T', 'Contact base material': 'Phosphorus bronze', 'Contact material': 'Cu-alloy', 'Contact surface': 'Gold over nickel', 'Layer structure of plug contact': '30...80 µ" Ni / ≥ 30 µ" Au'}
Protection degree	IP20
