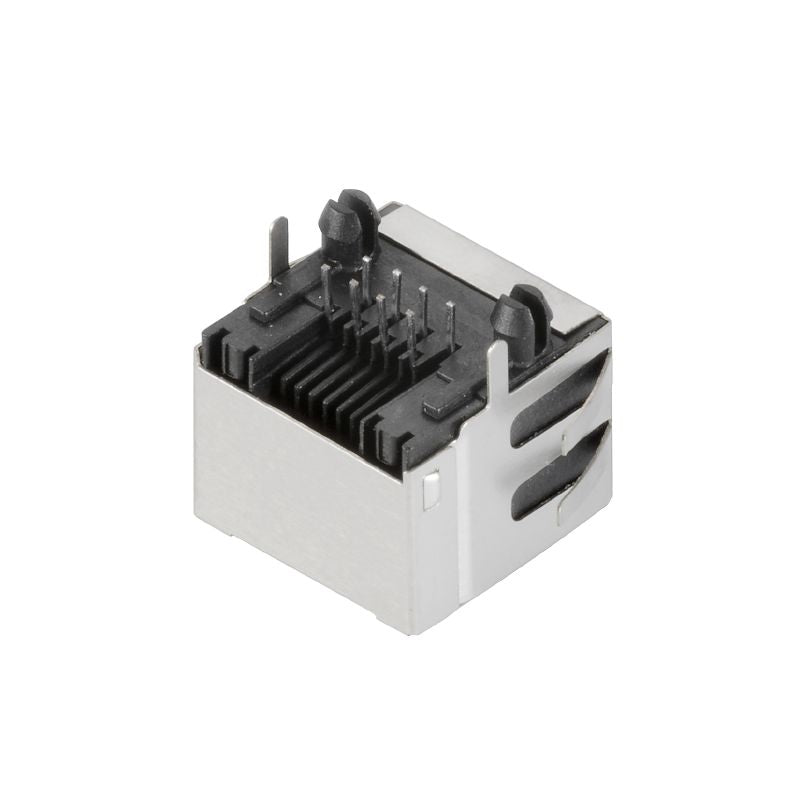

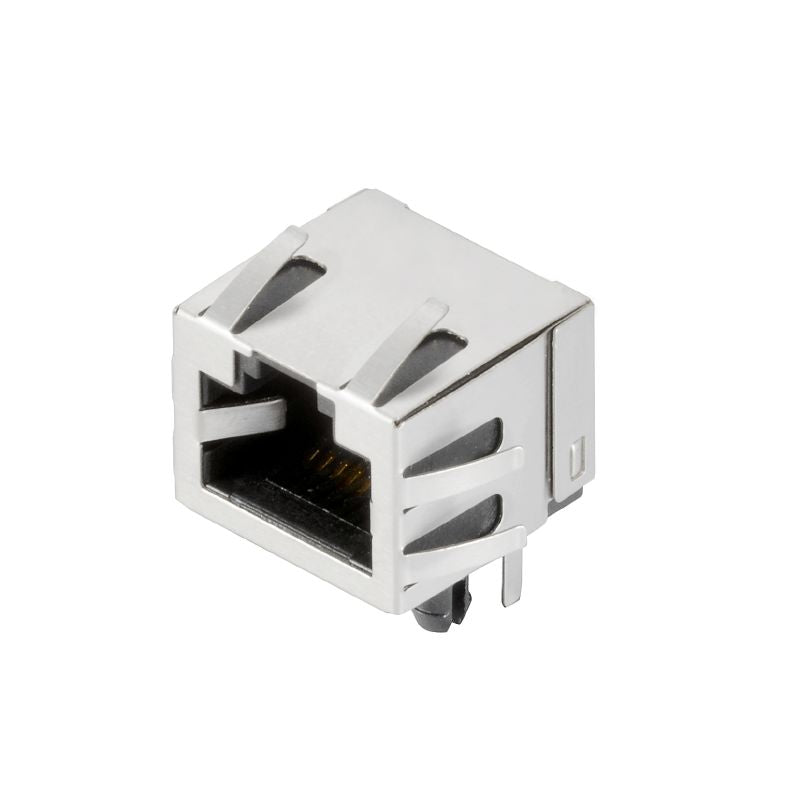

2562930000 - Cat. 5 RJ45 Modular Jack 90° for PCB Connections (Pack of 200)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RJ45 modular jack, expertly crafted for PCB plug-in applications and boasting a Cat 5 certification This connector features a 90-degree angle for through-hole solder connections, equipped with six sturdy tabs for optimal performance With a robust capacity for 750 plugging cycles and eight poles, it’s constructed from high-quality PA 9T material The contacts are plated with 30 to 80 micro inches of nickel, along with a minimum of 30 micro inches of gold, ensuring reliability and longevity.

Ideal for various networking needs!.

Features and Benefits:

•Meets RoHS compliance standards.

•Compliant with REACH regulations, with no SVHC above 0.1 wt%.

•90-degree outgoing elbow.

•IP20 protection degree.

•Supports PoE / PoE+ conforming to IEEE 802.3at.

•Compatible with THT/THR solder connections.

Specifications:
