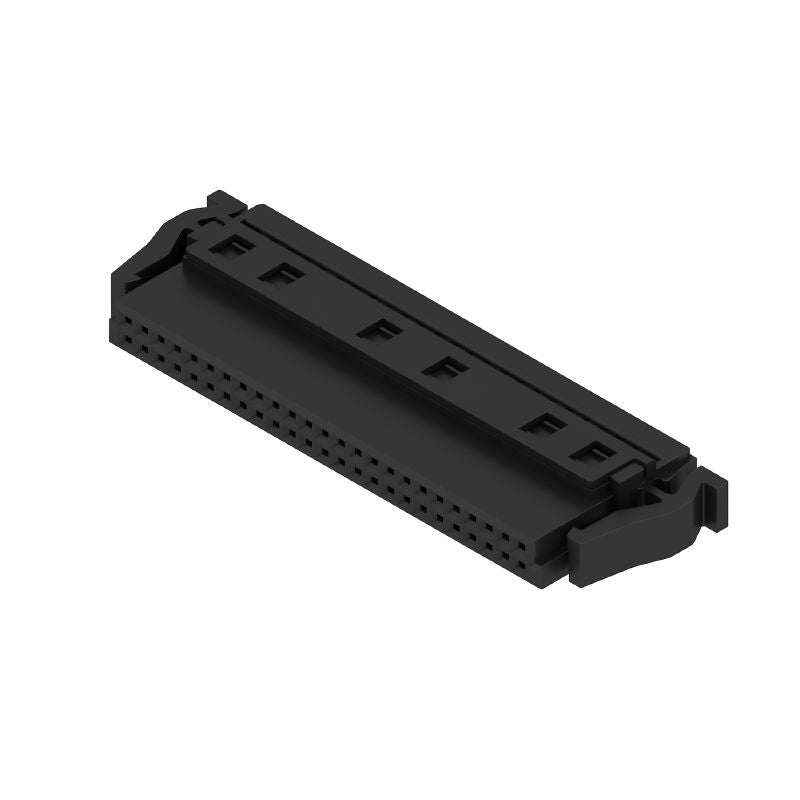

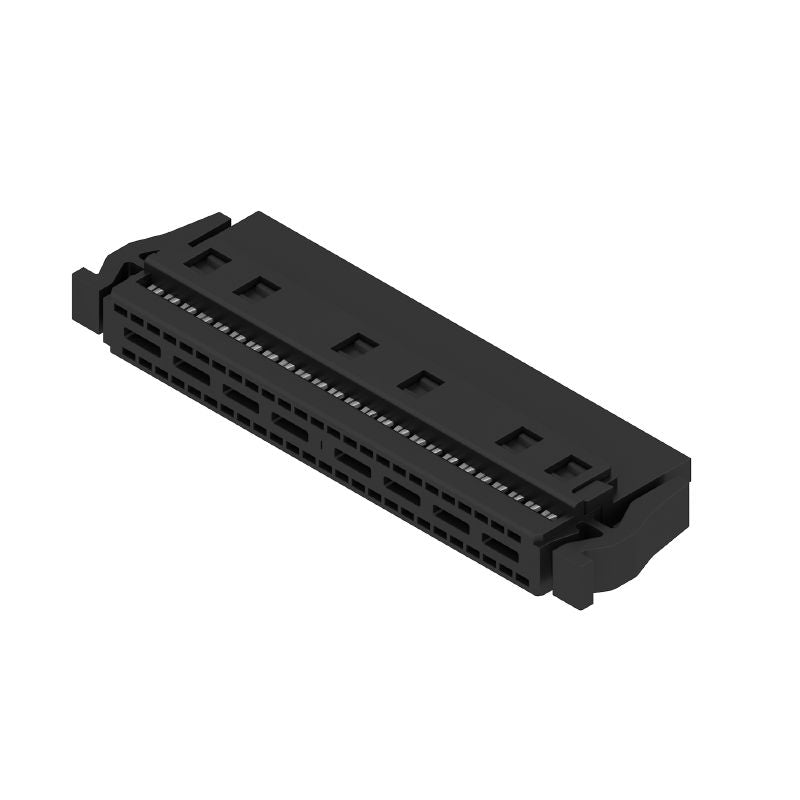

2747580000 - 1.27mm Pitch 50-Pole PCB Female Plug Connector (Pack of 75)

2747580000 - 1.27mm Pitch 50-Pole PCB Female Plug Connector (Pack of 75)

SKU: SKU: 2747580000   Download PDF

Select a Variant:
  • 2747580000 - 1.27mm Pitch 50-Pole PCB Female Plug Connector (Pack of 75)
Qty:
Regular price Now $467.60   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $467.60 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

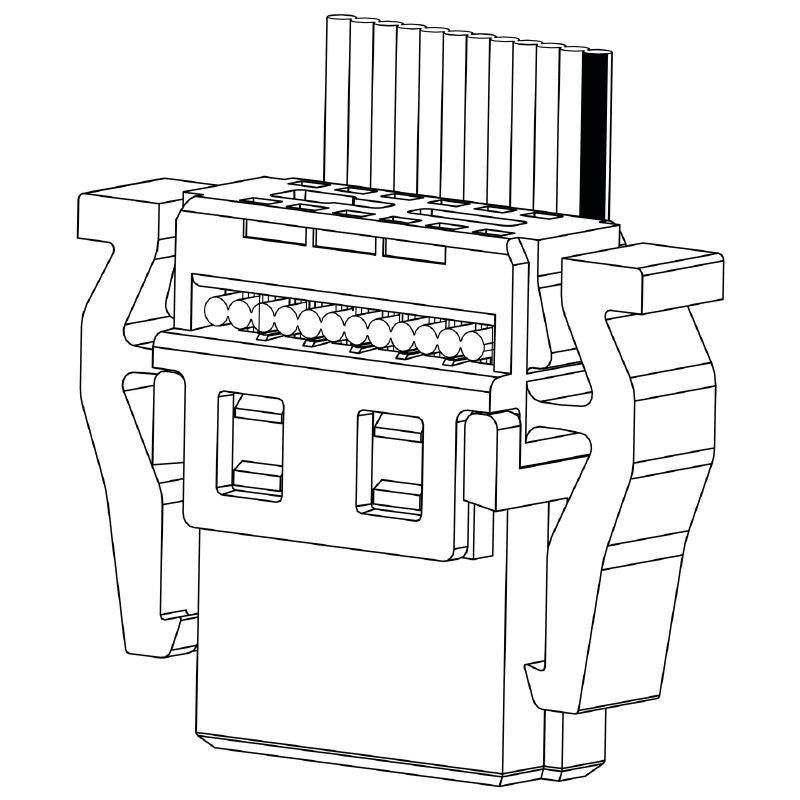

Introducing a female plug-in connector tailored for PCB applications, featuring a precise 127 mm pitch and supporting up to 50 poles This component is neatly organized in trays to facilitate manual assembly It is compliant with RoHS regulations and adheres to UL cURus standards, verified by certification number E92202.

Features and Benefits:

    •Insulation displacement connection (IDC) type.

    •50 poles and 1 row.

    •Volume resistance is less than 25 mΩ.

    •Suitable for 500 plugging cycles.

    •IP20 protection degree.

    •Uses copper alloy for contacts with nickel and gold surface plating.

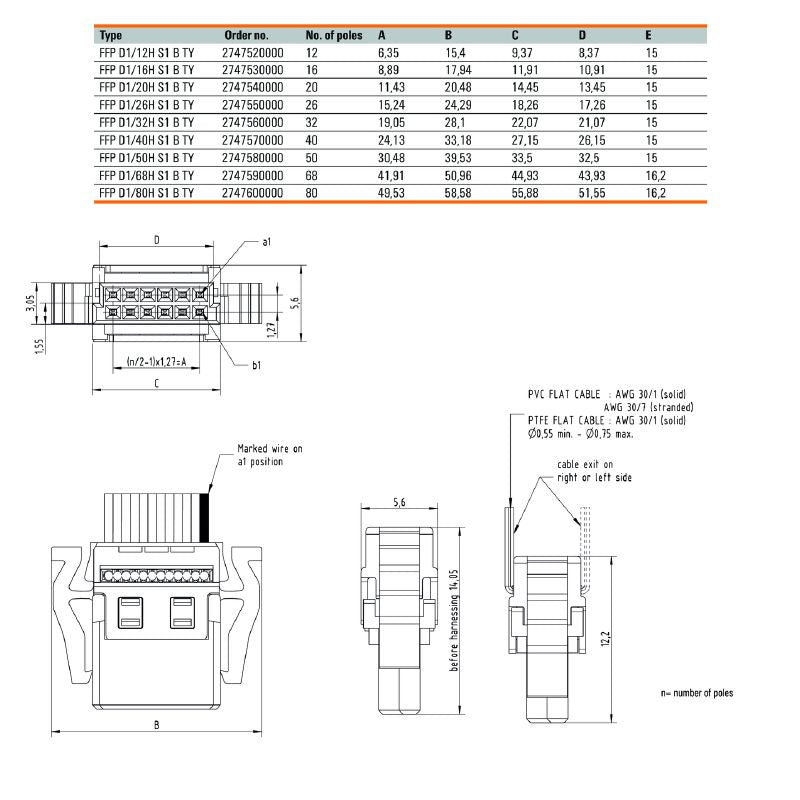

Specifications:

 Depth 5.6 mm
 Height 14.05 mm
 Width 39.53 mm
 Rated current, min. number of poles (Tu=20°C) 1.9 A
 Rated voltage (UL 1977) 150 V
 Insulation resistance ≥ 10¹⁰ Ω
 Operating temperature, min. -55 °C
 Operating temperature, max. 125 °C
 Insulating material LCP
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
