2638490000 - 90° RJ45 Modular Jack for Cat. 5 PCB Connections (Pack of 200)

SKU: SKU: 2638490000 Download PDF

Variant:

2638490000 - 90° RJ45 Modular Jack for Cat. 5 PCB Connections (Pack of 200)

Now $344.82

~~BEFORE $0.00~~ Now $344.82

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RJ45 modular jack, specifically crafted for PCB plug-in connections within Category 5 applications This component features a 90° angle design with THT/THR soldering options, ensuring a secure connection With 8 poles and a robust plugging cycle longevity of up to 750 cycles, it promises reliability Made from PA 9T material and equipped with nickel plating on its shielded surface, it omits shield tabs for a streamlined design.

This connector is compatible with manual, wave, and reflow soldering techniques, making it ideal for various assembly processes.

Features and Benefits:

•Compliant with RoHS regulations.

•IP20 protection degree.

•Nickel-plated shield surface.

•Brass shielding material.

•Application in Cat. 5 systems.

•Compatible with PoE / PoE+ standards adhering to IEEE 802.3at.

Specifications:

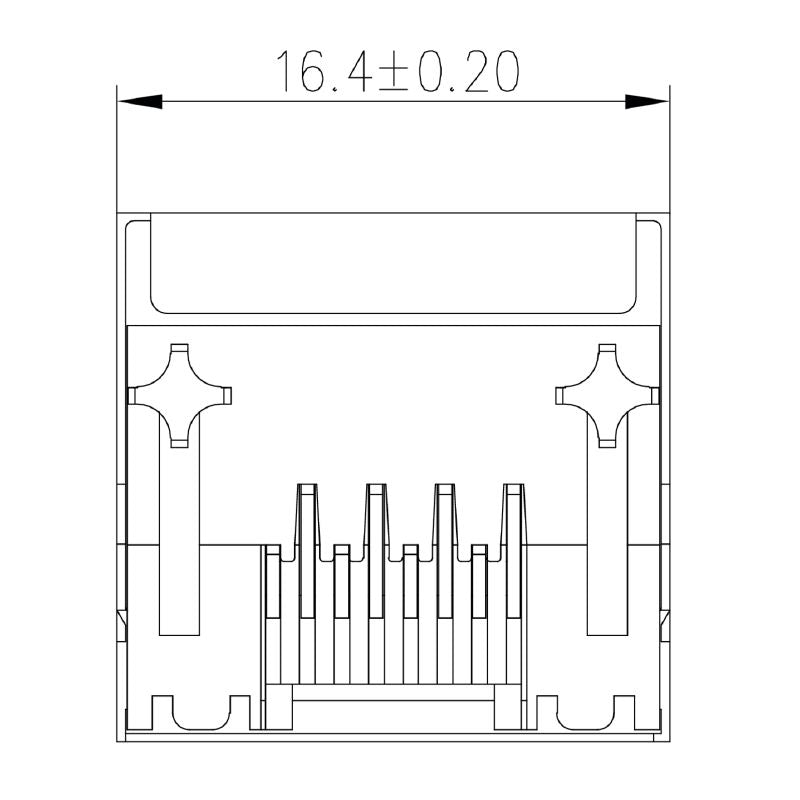

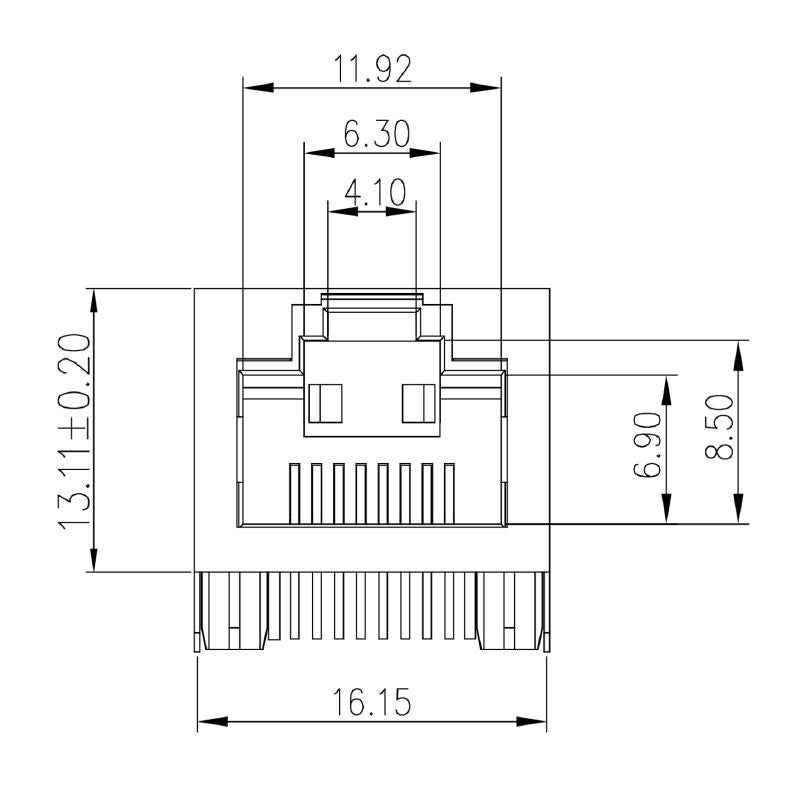

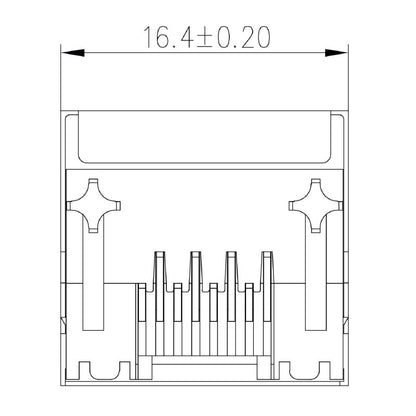

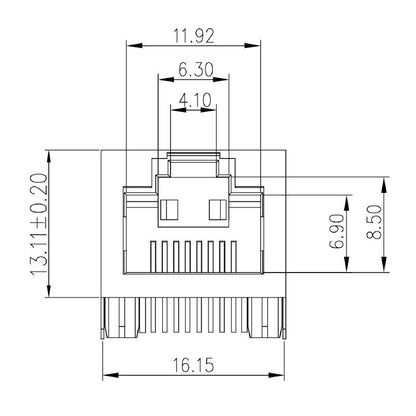

Dimensions	{'Depth': '15.7 mm', 'Height': '13.11 mm', 'Width': '16.4 mm'}
Electrical Properties	{'Dielectric Strength (Contact/Contact)': '1000 V DC', 'Dielectric Strength (Contact/Shield)': '1500 V DC', 'Insulation Resistance': '≥ 500 MΩ', 'Nominal Voltage': '125 V', 'Rated Current': '1.5 A', 'Volume Resistance': '<25 mΩ'}
Material Data	{'Insulating Material': 'PA 9T', 'Contact Base Material': 'Phosphor bronze alloy', 'Contact Material': 'Cu-alloy', 'Contact Surface': 'Gold over nickel'}
Storage and Operating Conditions	{'Storage Temperature (Min)': '-40 °C', 'Storage Temperature (Max)': '85 °C', 'Operating Temperature (Max)': '85 °C'}
Performance Category	Cat. 5
Number of Poles	8

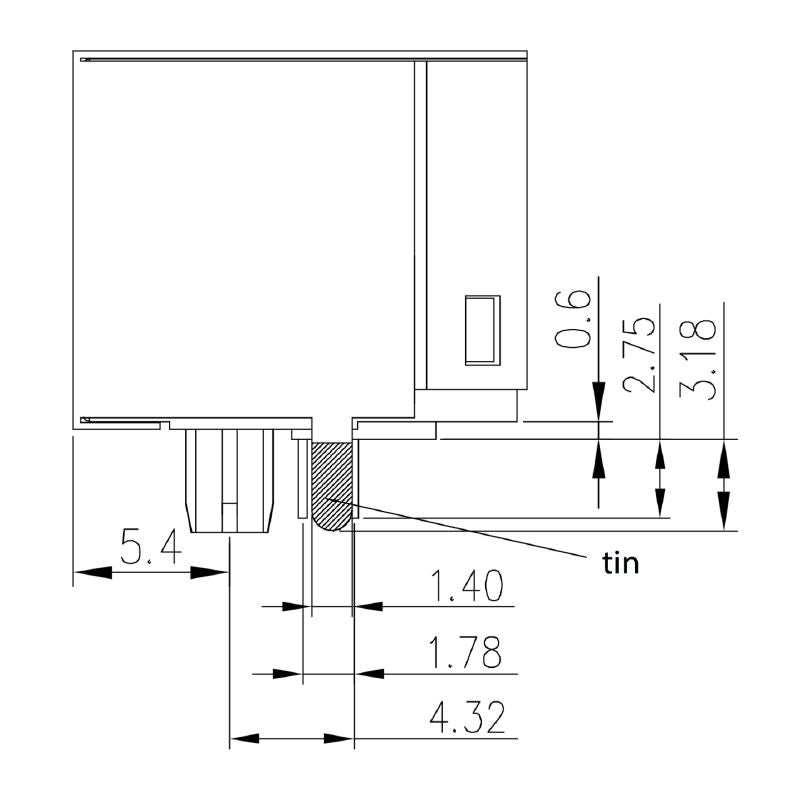

Solder Pin Length	2.8 mm

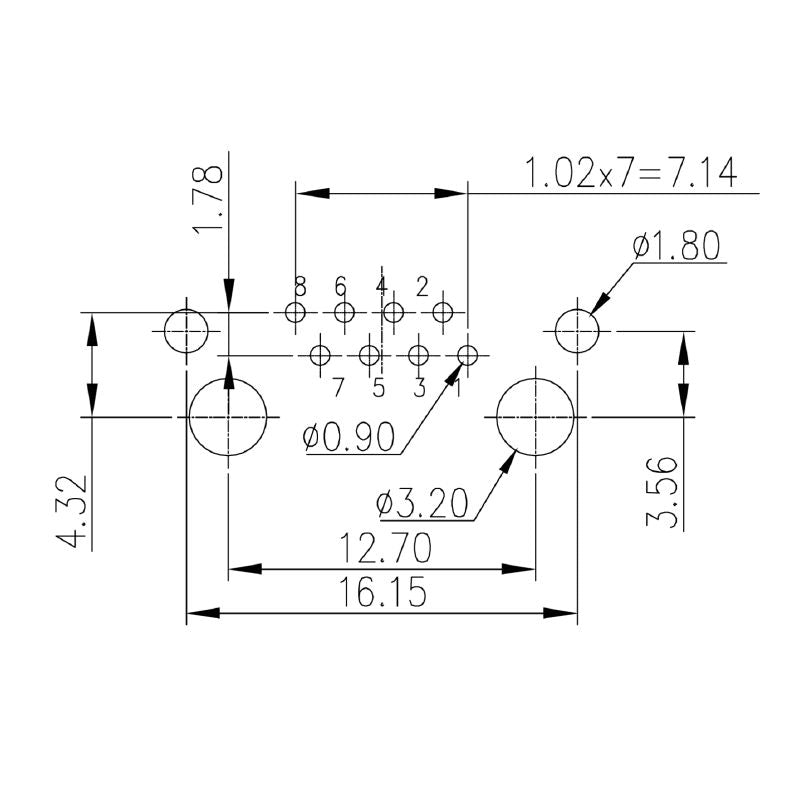

Pitch	{'Inches': '0.05 "', 'mm': '1.02 mm'}
Solder Connection	{'Type': 'Solder connection', 'Tolerance of Solder Pin Position': '± 0.1 mm'}
Packaging	Tape
