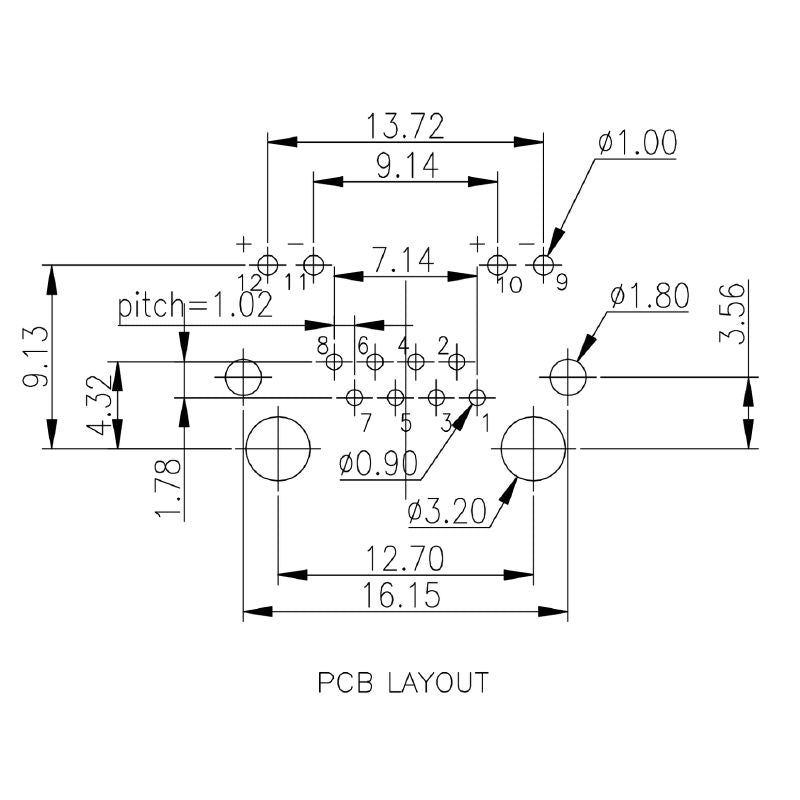

2562950000 - 12-Pin RJ45 Modular Jack for PCB, OMNIMATE Data Series (Pack of 200)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

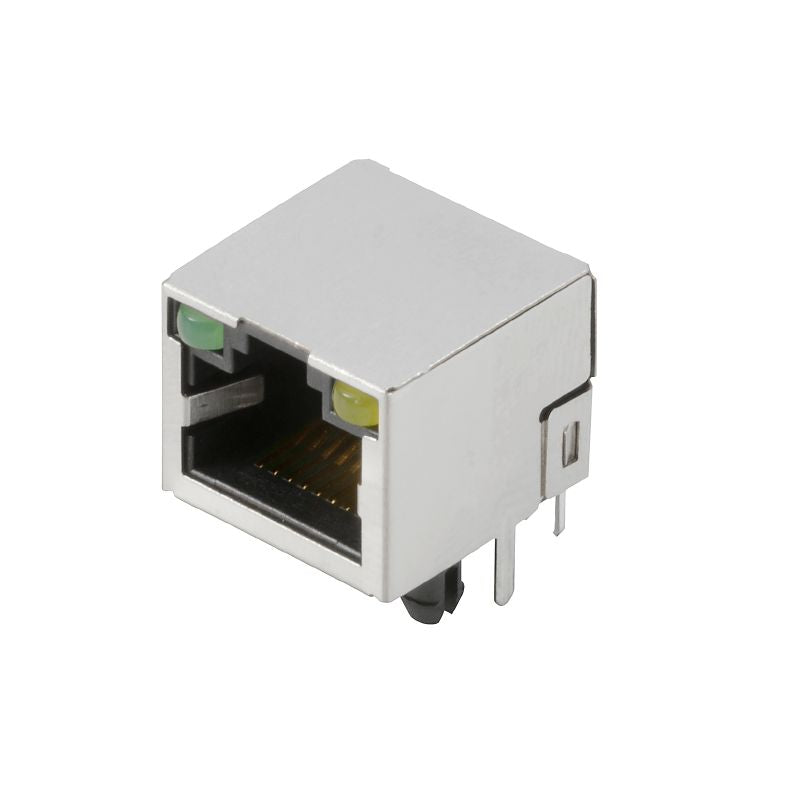

Introducing the RJ45 modular jack, tailored for PCB plug-in connections and part of the OMNIMATE Data series, optimized for Category 5 applications This connector is engineered with a top soldering design and a 90° orientation, providing reliability with an impressive durability of up to 750 plugging cycles Featuring 12 pins, it is made from high-quality PA 9T plastic and coated with nickel and gold plating, ensuring a thickness of 30 to 80 microinches.

For added convenience during assembly, this connector comes supplied in a tape format.

Features and Benefits:

•Compliant with RoHS without exemptions.

•No SVHC present above 0.1 weight percent.

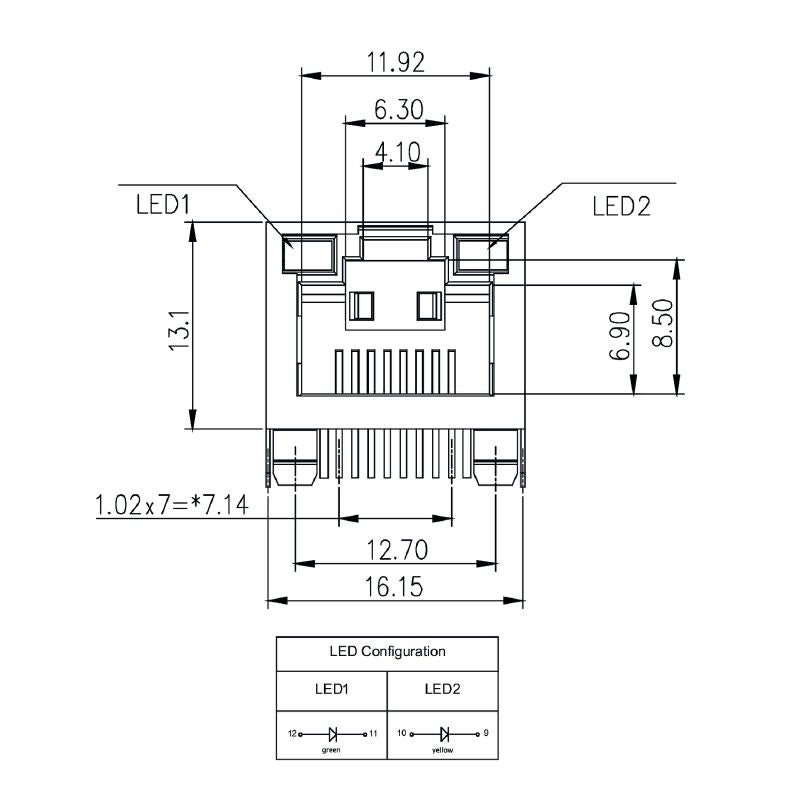

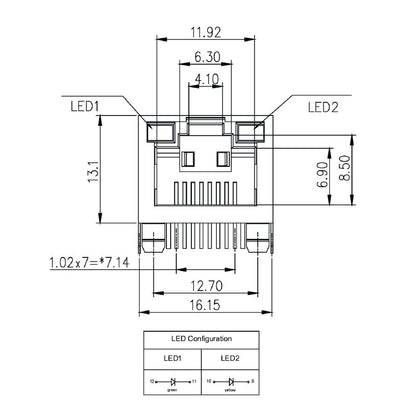

•LED indicators in green and yellow.

•Capable of handling a forward current of 20 mA.

•Supports PoE / PoE+ according to IEEE 802.3at.

Specifications:
