2826990000 - 16-Pole 1.27mm IDC Female Connector, RoHS Compliant (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

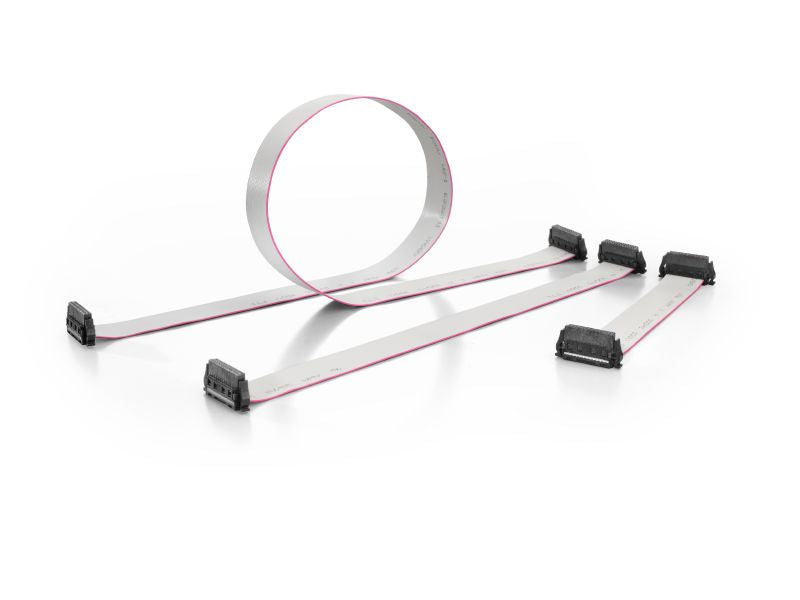

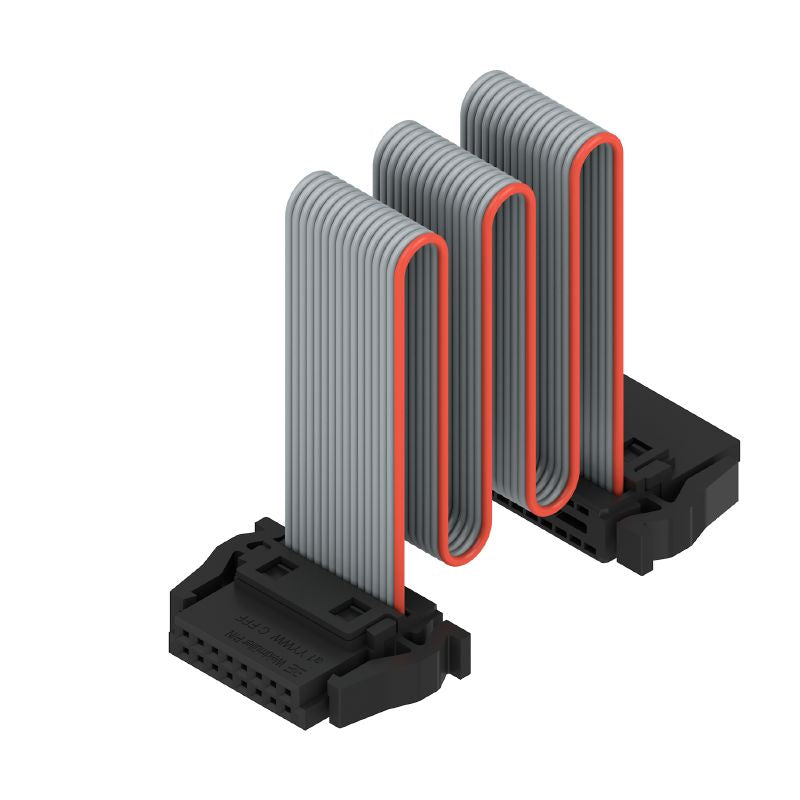

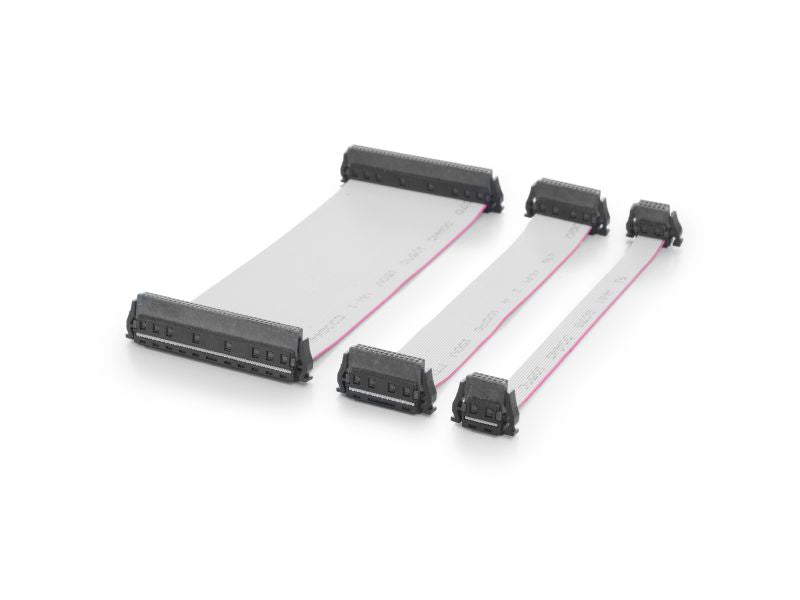

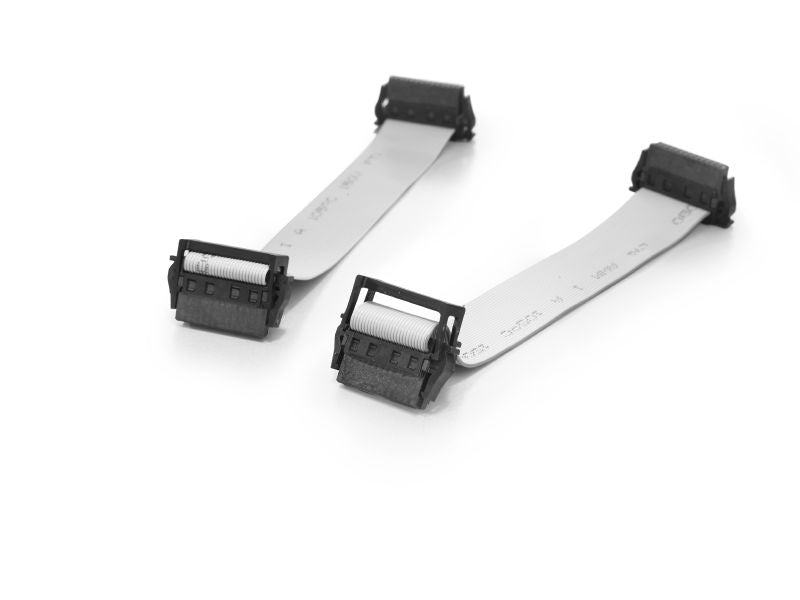

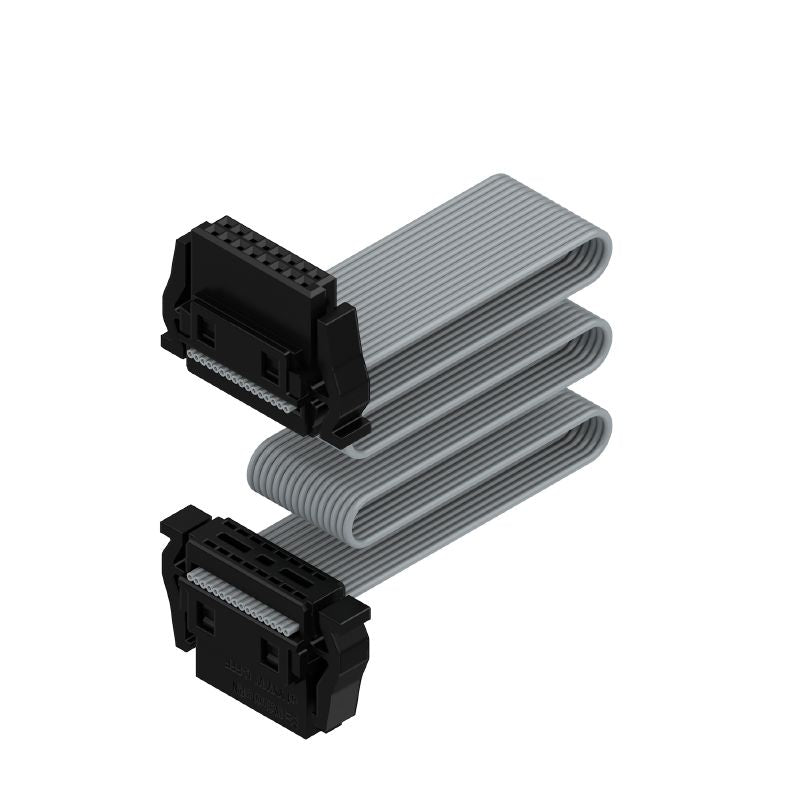

Introducing the FC50 TN/16A S1 B BX PCB plug-in connector, a reliable solution for your wiring needs This female connector boasts a compact pitch of 127 mm and features 16 poles, making it ideal for insulation displacement connections (IDC) Designed with RoHS compliance, it ensures safety and environmental standards Each package contains 10 connectors, providing an ample supply for your projects Crafted from high-quality LCP insulating material and finished in a light grey color (RAL 7035), this connector combines durability with functionality for all your electronic applications.

Features and Benefits:

•Compliant with RoHS without exemption.

•Suitable for 500 plugging cycles.

•Operating temperature range from -40 °C to 125 °C.

•Moisture Level (MSL) of 1.

•Insulation resistance of ≥ 20 MΩ.

•UL 94 V-0 flammability rating.

Specifications:
