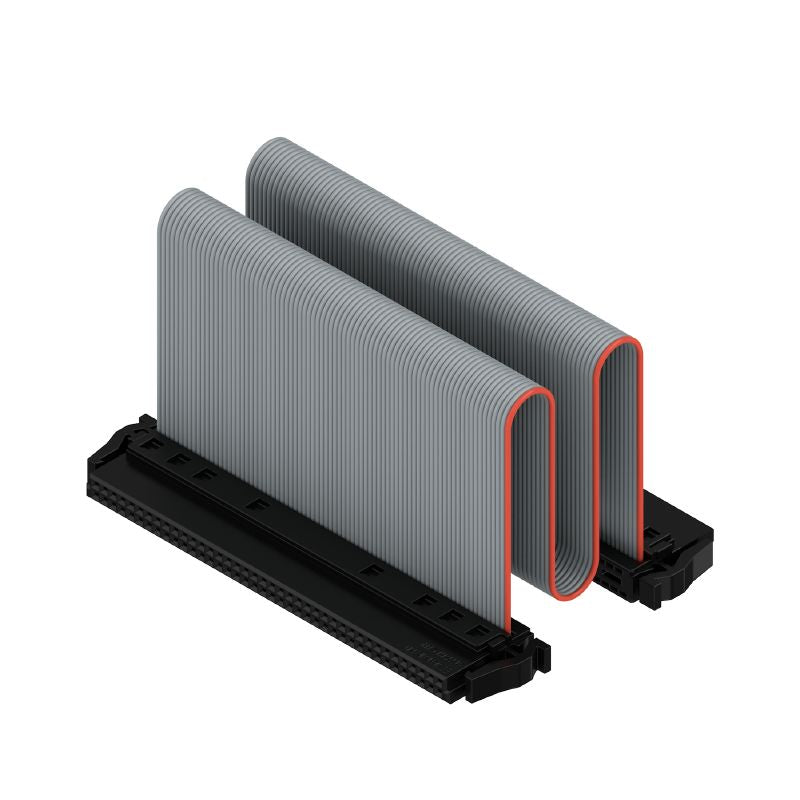

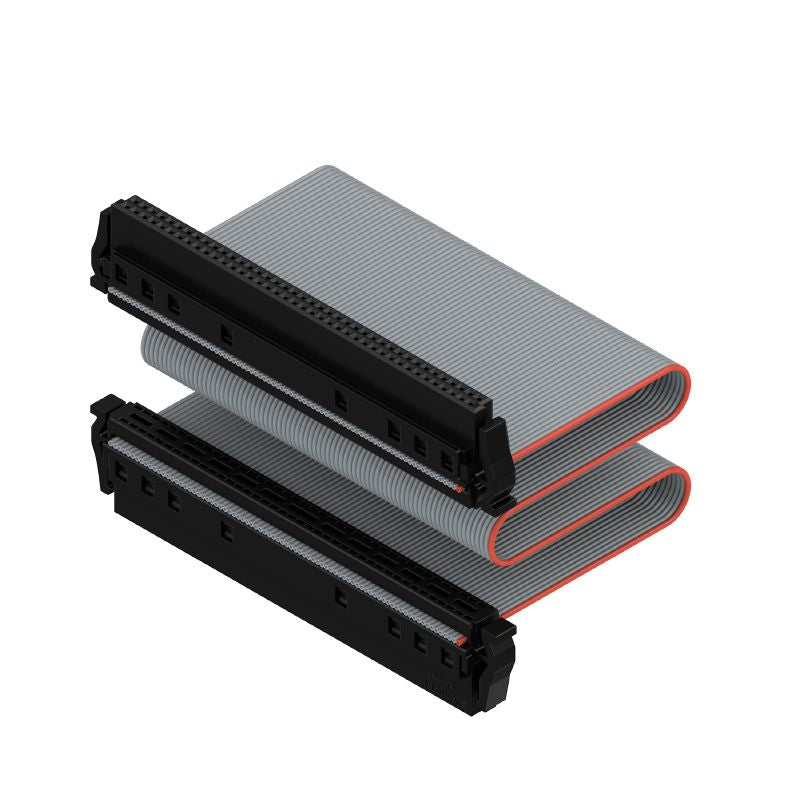

2827370000 - 80-Pole PCB Female Connector, 1.27mm Pitch, 12.2mm Length (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable PCB plug-in connector featuring a female plug, designed with a precise 127 mm pitch This component boasts 80 poles and comes securely packaged in a box for your convenience Measuring 122 mm in length (about 048 inches) and weighing in at 17 grams, it offers a compact solution for your electronic needs Adhering to RoHS standards, this connector is free from any SVHC substances exceeding the designated limits.

Additionally, its assembly meets international quality standards, conforming to IPC-A-610 'Class 2' specifications for assured performance and reliability.

Features and Benefits:

•Insulation displacement connection (IDC) method for wire connection.

•Suitable for connecting conductors with AWG 30/1 and 30/7 cross-section.

•Can handle a maximum plugging force of 0.6 N per pole.

•Able to perform up to 500 plugging cycles.

•IP20 protection degree ensures basic environmental protection.

•Offered in grey color, RAL 7035.

Specifications:
