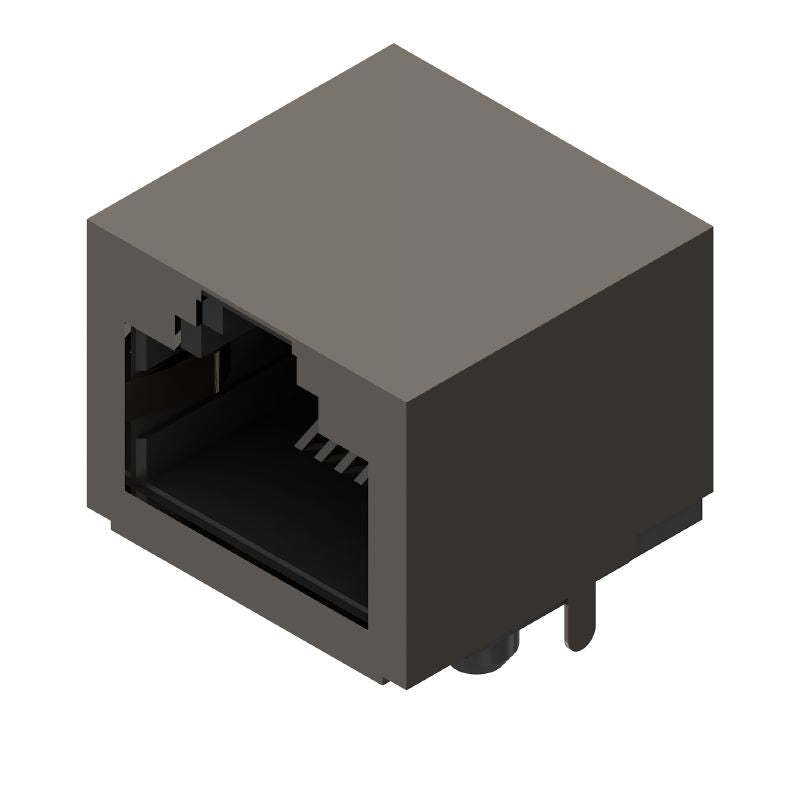

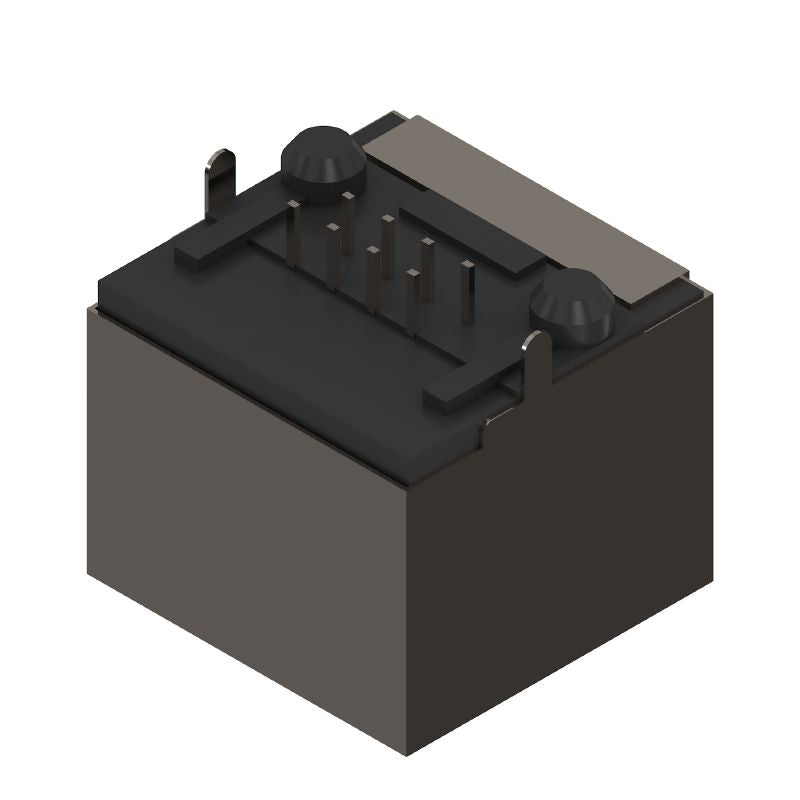

3066290000 - Cat. 5 RJ45 Modular Jack, 15.7mm Depth, Top Mount (Pack of 240)
3066290000 - Cat. 5 RJ45 Modular Jack, 15.7mm Depth, Top Mount (Pack of 240)
SKU: SKU: 3066290000 Download PDF
- 3066290000 - Cat. 5 RJ45 Modular Jack, 15.7mm Depth, Top Mount (Pack of 240)
- 3066290000 - Cat. 5 RJ45 Modular Jack, 15.7mm Depth, Top Mount (Pack of 240)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the RJ45 modular jack, a reliable PCB plug-in connector engineered for Cat 5 applications This connector boasts a top mounting option and a solder connection angle of 90°, ensuring robust performance With the capability to handle up to 750 plugging cycles, it features 8 poles and is constructed from durable PA 9T material with a nickel-plated shield surface for added protection Complying with RoHS standards without any exemptions, this connector is free from any SVHC above 0.
1 wt% Its compact dimensions of 157 mm depth, 164 mm width, and 1311 mm height, along with a weight of 8192 g, make it an excellent choice for your connectivity needs.
Features and Benefits:
•Compliant with RoHS regulations.
•Made with high-quality materials for durability.
•Supports multiple soldering processes including reflow, manual, and wave soldering.
•IP20 protection degree.

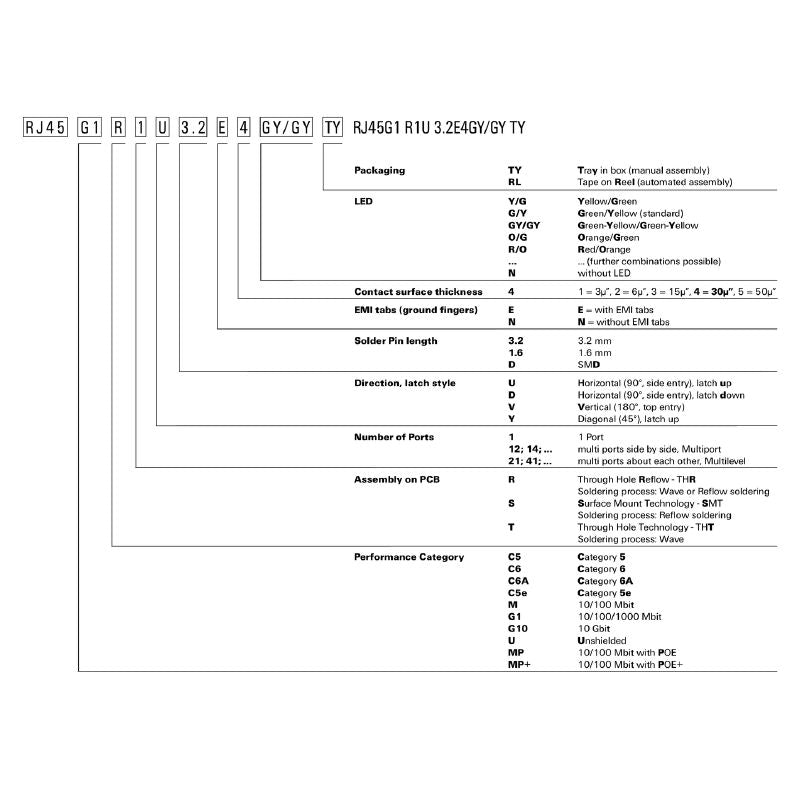

Specifications:
| Order No. | 3066290000 |
| Category | Cat. 5 |
| Latch option | top |
| LED | No |
| Mounting onto the PCB | THT/THR solder connection |
| Number of poles | 8 |
| Number of solder pins per pole | 1 |
| Outgoing elbow | 90° |
| Performance-Category | Cat. 5 |
| Pitch in inches (P) | 0.05 " |
| Pitch in mm (P) | 1.02 mm |
| Plugging cycles | 750 |
| Product family | OMNIMATE Data - RJ45 modular jack |
| Protection degree | IP20 |
| Shield surface | nickel-plated |
| Shield tabs | none |
| Shielding | Yes |
| Shielding material | Brass |
| Side termination, characteristic | Solder flange |
| Solder eyelet hole diameter tolerance (D) | ± 0.1 mm |
| Solder pin dimensions | Octagonal |
| Solder pin length (l) | 2.2 mm |
| Soldering process | Reflow soldering, Manual soldering, Wave soldering |
| Type of connection | Solder connection |
| Dielectric strength, contact / contact | 1000 V DC |
| Dielectric strength, contact / shield | 1500 V DC |
| Insulation resistance | ≥ 500 MΩ |
| Nominal voltage | 125 V |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Volume resistance | <25 mΩ |
| Connector standard | IEC 60603-7 |
| Insulating material | PA 9T |
| Insulating material group | II |
| Comparative Tracking Index (CTI) | ≥ 500 |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact base material | Phosphor bronze alloy |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Layer structure of solder connection | 30...80 µ" |
| Layer structure of plug contact | 30...80 µ" / ≥ 30 µ" |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
