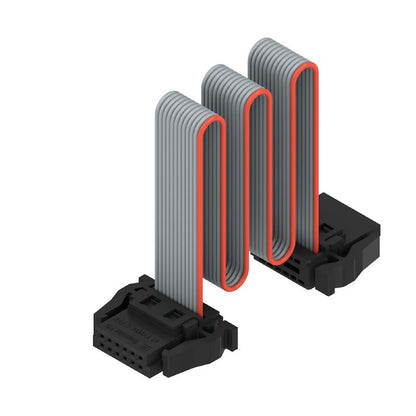

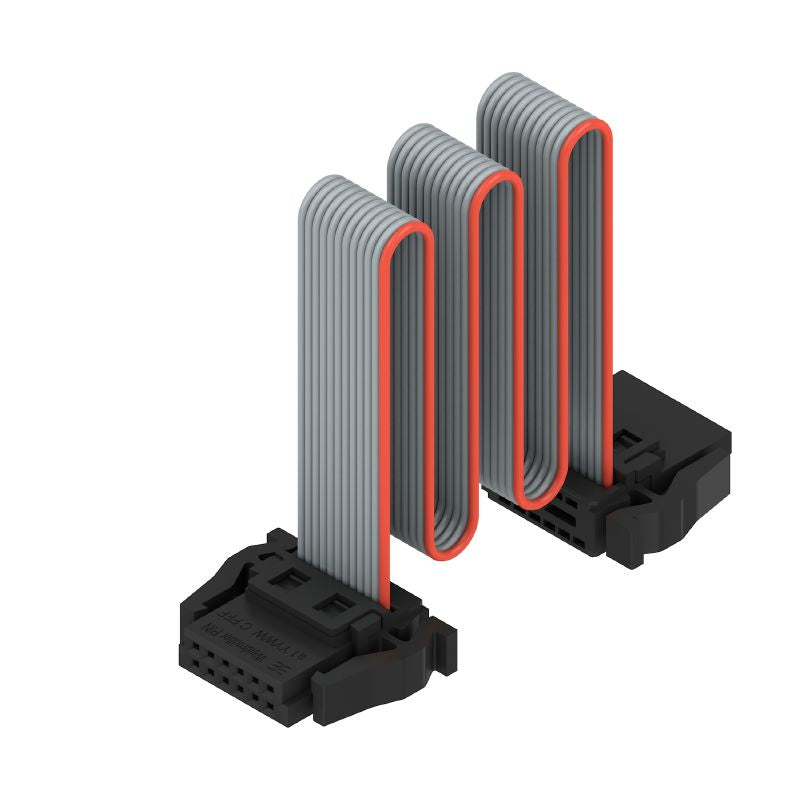

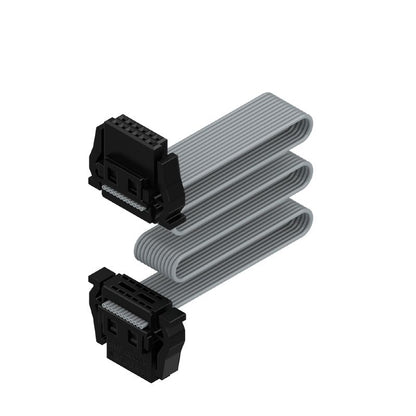

2826930000 - Compact 12-Pole Female PCB Connector with 1.27mm Pitch (Pack of 10)

2826930000 - Compact 12-Pole Female PCB Connector with 1.27mm Pitch (Pack of 10)

SKU: SKU: 2826930000   Download PDF

Select a Variant:
  • 2826930000 - Compact 12-Pole Female PCB Connector with 1.27mm Pitch (Pack of 10)
Qty:
Regular price Now $169.85   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $169.85 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the FC50 TN/12A S1 B BX, a high-performance PCB plug-in female connector designed for efficiency and reliability With a compact size and a pitch of just 127 mm, this connector accommodates up to 12 poles It is packaged in a box and is compliant with RoHS standards, ensuring it contains no restricted materials Perfect for insulation displacement connection (IDC), this connector supports specified AWG wiring sizes.

It is a part of the OMNIMATE Signal product line, ideal for board-to-board applications.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Suitable for insulation displacement connection (IDC).

    •Designed for a long lifespan with up to 500 plugging cycles.

    •Constructed from durable materials including copper alloy and LCP.

Specifications:

 Length 12.2 mm
 Number of poles 12
 Pitch in mm 1.27 mm
 Conductor outlet direction 90°/270°
 Protection degree IP20
 Volume resistance <25 mΩ
 Max. plugging force per pole 0.6 N
 Max. pulling force per pole 0.6 N
 Insulation resistance ≥ 20 MΩ
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Operating temperature, min. -40 °C
 Operating temperature, max. 125 °C
 Rated current 1.9 A
 Clearance, min. 0.4 mm
 Creepage distance, min. 0.4 mm
 Insulating material LCP
