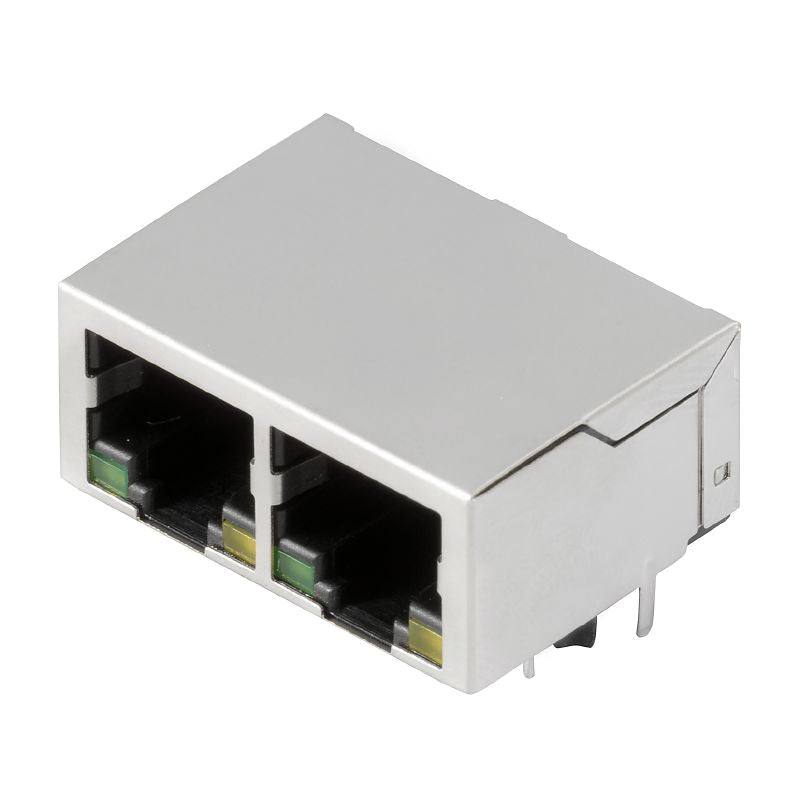

2551900000 - 90° PCB Transformer Jack, 8 Poles, UL Certified (Pack of 200)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RJ45M R12D 32N4G/Y RL transformer jack, an ideal solution for PCB plug-in applications This component features a THT/THR solder connection with a 90° outgoing elbow, ensuring a compact design With 8 poles, it can withstand up to 750 plugging cycles, making it both reliable and efficient The product meets various standards, boasting RoHS compliance and a UL certification (cURus) number E471884.

For ease of use, it comes packaged in tape form, perfect for streamlined handling and installation.

Features and Benefits:

•LED indicators with green and yellow colors.

•Suitable for various soldering processes including manual, wave, and reflow soldering.

•IP20 protection degree.

•Transmission rate supporting 10/100 MBit/s.

•Contains shielding with a nickel-plated surface.

•Constructed from durable materials ensuring a long lifespan.

Specifications:
