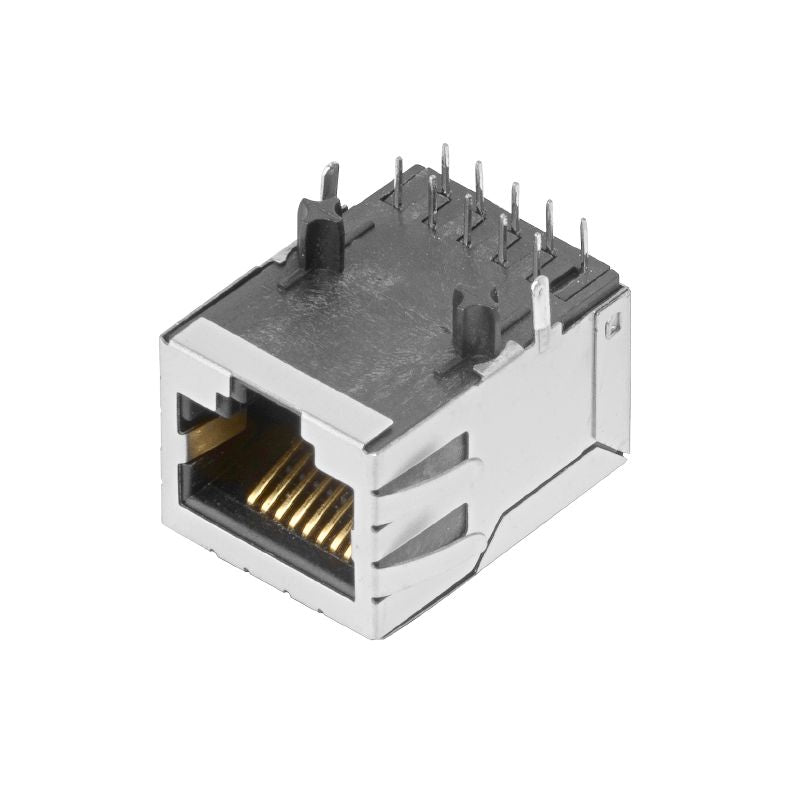

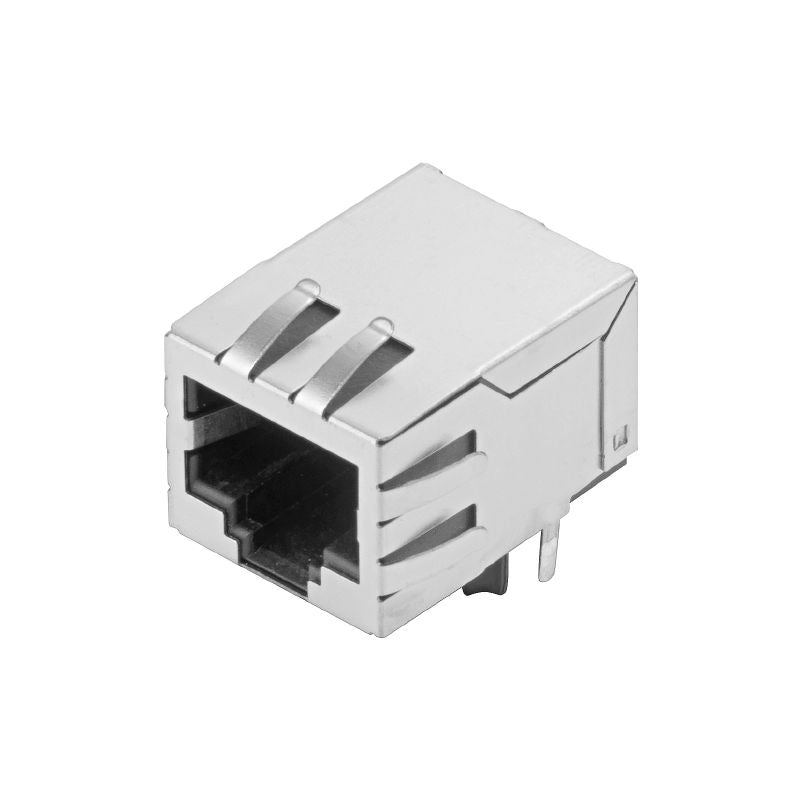

2564440000 - 90° RJ45 Transformer Jack for PCB, 750 Cycles, 1000 Mbps (Pack of 200)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

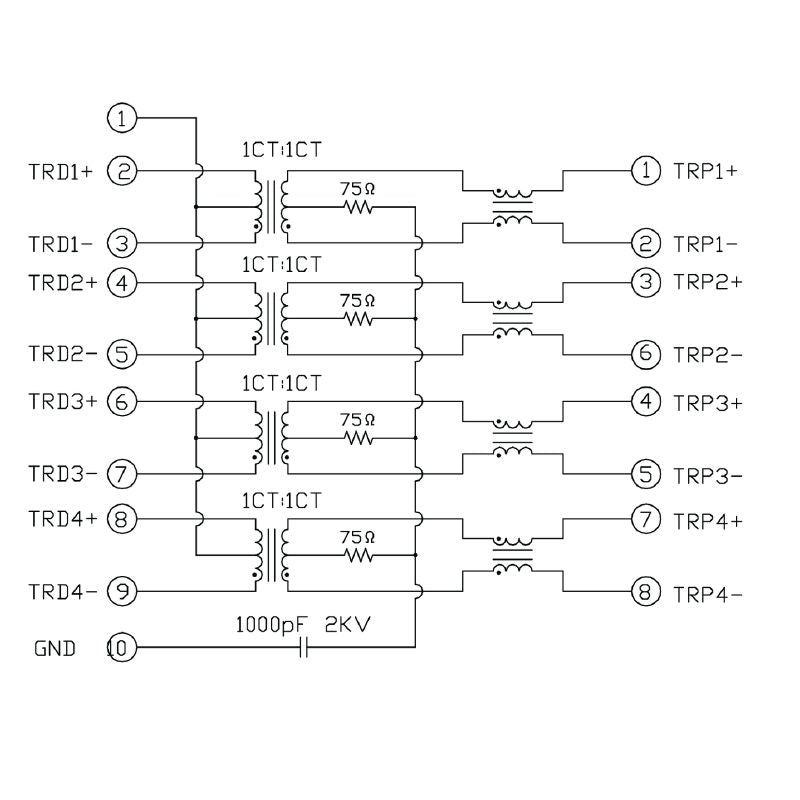

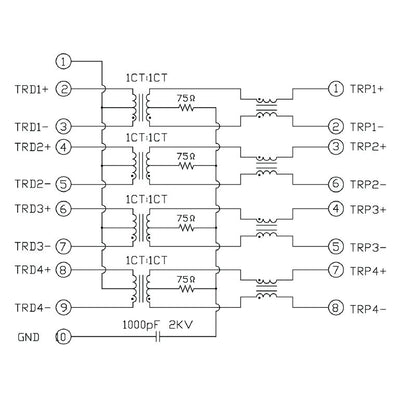

Introducing the OMNIMATE Data RJ45 transformer jack, an ideal choice for PCB insertion featuring THT and THR solder connections With its 90-degree outgoing elbow design and six secure tabs, this component is built to withstand up to 750 plugging cycles Crafted from durable PA 9T material, it boasts a nickel plating with a gold contact layer ranging from 30 to 80 micro inches Designed for high-performance data applications, this transformer jack supports data transmission speeds of up to 1000 Mbps and has a nominal voltage rating of 125V, making it an excellent option for your connectivity needs.

Features and Benefits:

•Compliant with RoHS without exemption.

•Suitable for various soldering processes including reflow and manual soldering.

•IP20 rated protection degree.

•Offers a robust contact material of phosphorus bronze.

•Insulation resistance of at least 500 MΩ.

•Suitable storage temperature ranges from -40°C to 85°C.

Specifications:
