2827410000 - 80-Pole 1.27mm PCB Connector with IDC Terminals (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

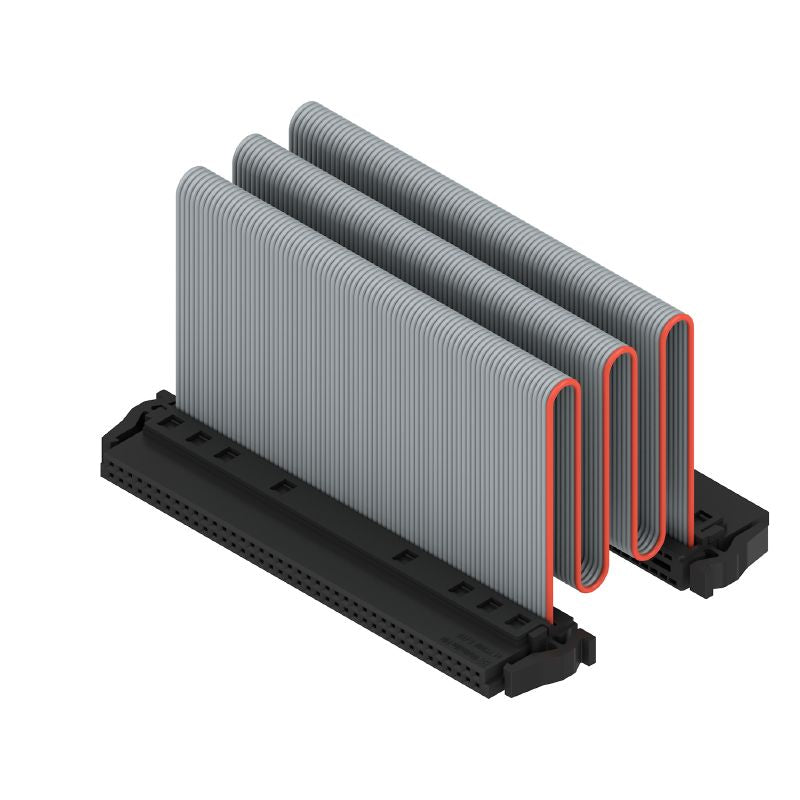

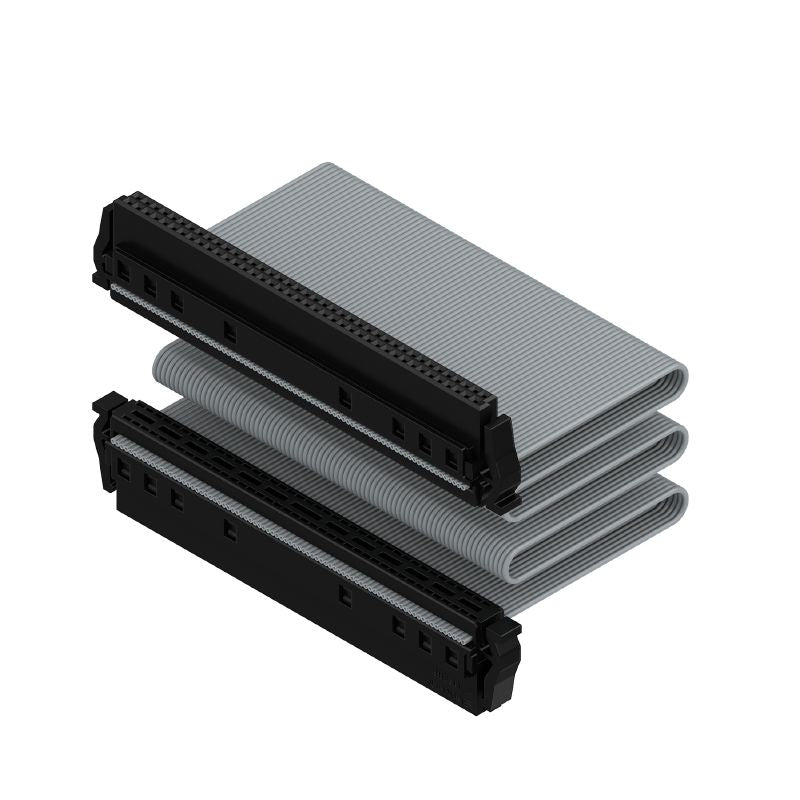

Introducing the FC50 TN/80A S1 B BX, a high-performance PCB plug-in connector specifically crafted for female plugs featuring an 127 mm pitch with a total of 80 poles Each unit is conveniently packaged in boxes and adheres to RoHS standards, ensuring compliance with environmental regulations This connector employs insulation displacement connections through its IDC terminals, making installation straightforward and efficient.

It is designed with a conductor outlet direction of 90°/270° and is structured in a two-row configuration, capable of withstanding a maximum pulling and plugging force of 06 N Additionally, it operates at a rated current of up to 19 A in accordance with IEC specifications, making it a robust choice for various applications.

Features and Benefits:

•RoHS compliant without exemption.

•Operating temperature range from -40 °C to 125 °C.

•Storage temperature range from -40 °C to 70 °C.

•Enhanced insulation material made from LCP.

•Features a volume resistance of less than 25 mΩ.

•Supports a maximum of 500 plugging cycles.

Specifications:
