2747210000 - 1.27mm 40-Pole Male Header Connector, RoHS Compliant (Pack of 560)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

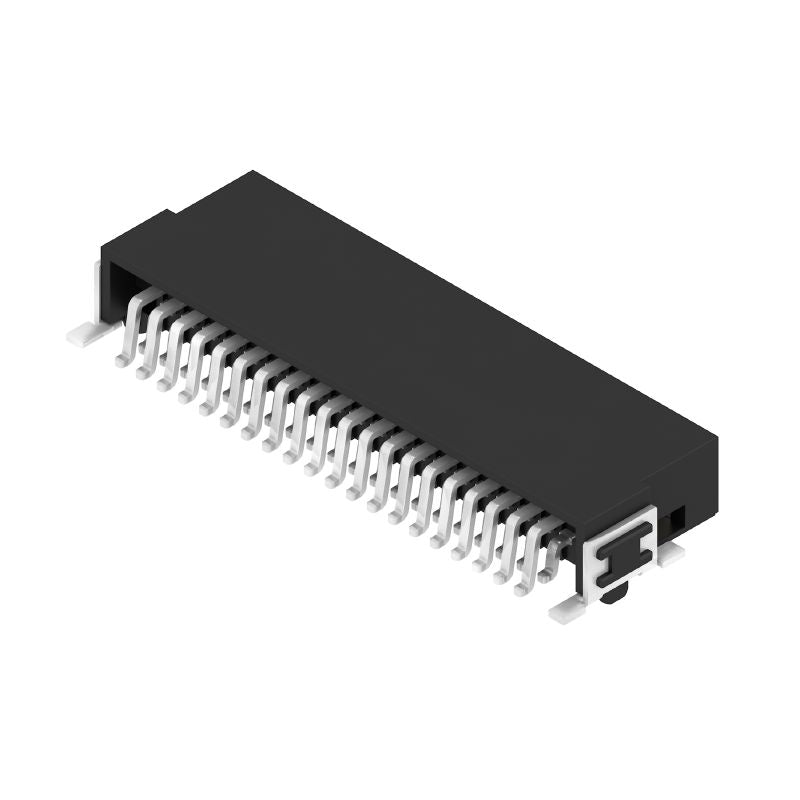

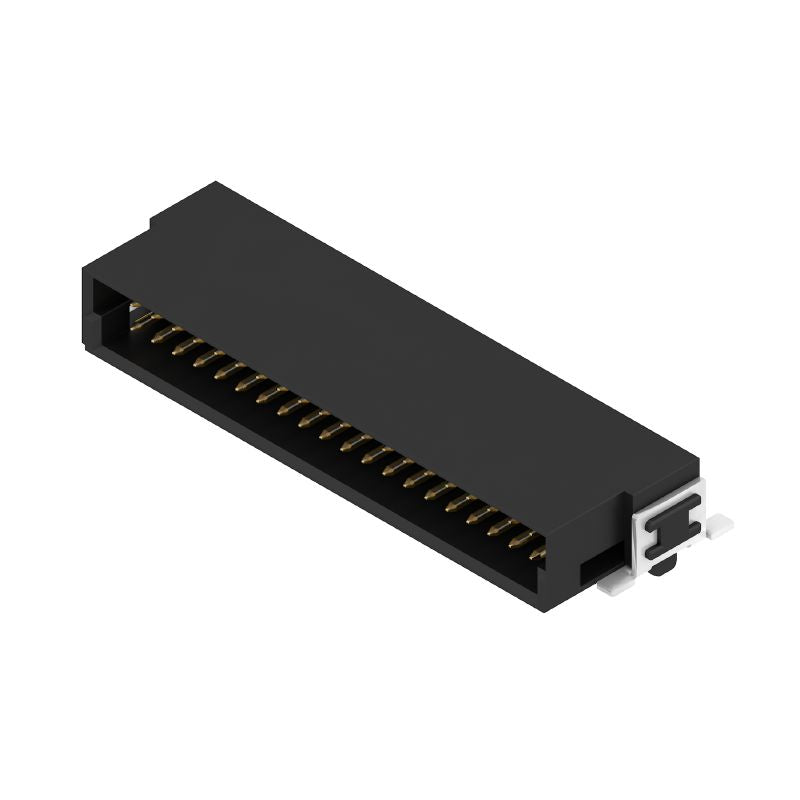

Introducing the FMH S1/40H F1 B RL, an efficient male header PCB plug-in connector specifically crafted for SMD solder connections This connector boasts a compact 127 mm pitch and is configured with 40 poles arranged at a 90° angle, all neatly supplied on tape for easy handling Adhering to IEC standards for 28 A, it operates safely at a rated voltage of 150 V in accordance with UL specifications With a commitment to environmental responsibility, this component is fully RoHS compliant, ensuring it meets sustainability standards without any exemptions.

Features and Benefits:

•Designed for SMD solder connections.

•90° outgoing elbow configuration.

•Suitable for a variety of applications with a compact design.

•Low volume resistance of <25 mΩ.

•Capable of withstanding up to 500 plugging cycles.

Specifications:
