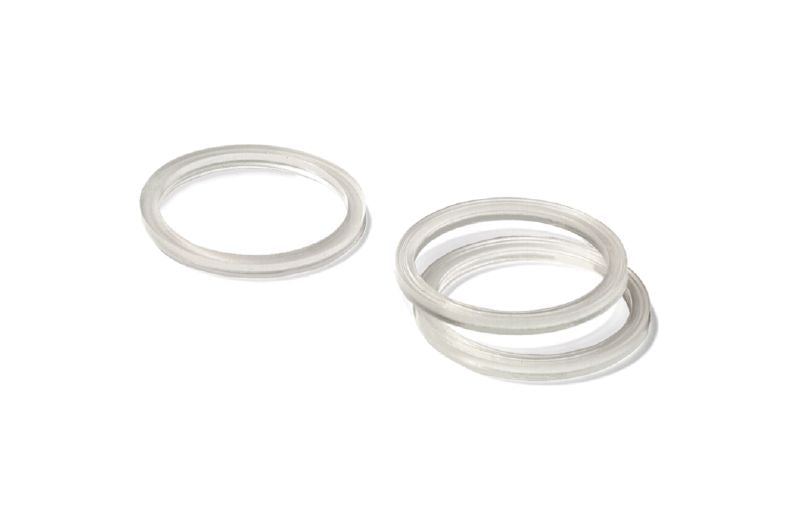

1777960000 - M32 Polythene Gasket with 36mm Sealing Ring (Pack of 50)

SKU: SKU: 1777960000 Download PDF

Variant:

1777960000 - M32 Polythene Gasket with 36mm Sealing Ring (Pack of 50)

Now $25.66

~~BEFORE $0.00~~ Now $25.66

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure a tight seal with the GWDR M32-PO flat gasket, crafted from durable polyethylene This gasket is equipped with a sealing ring that measures 36 mm in diameter and adheres to RoHS standards Featuring a standard M32 external thread alongside an internal diameter of 32 mm, it accommodates a single wire Designed to perform efficiently within a temperature range of -30 °C to 90 °C, this product is made from PE-HD material and incorporates silicone to provide superior sealing capability.

Features and Benefits:

•Flat gasket made from polyethylene.

•Sealing ring diameter of 36 mm.

•Operates in temperatures from -30 °C to 90 °C.

•Constructed with PE-HD material.

•Includes silicone for improved sealing.

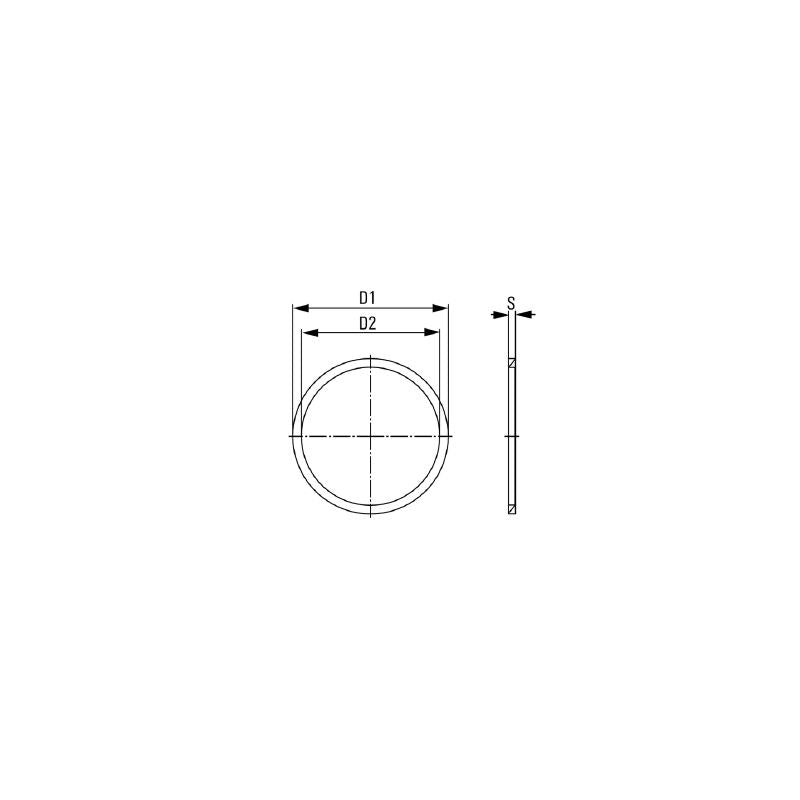

Specifications:

Height	2 mm
Height (inches)	0.079 inch
Net weight	0.352 g
Operating temperature range, max.	90 °C
Operating temperature range, min.	-30 °C
Diameter of sealing ring	36 mm
Inside diameter D2	32 mm
Pitch of thread	1.5 mm
Classifications	{'ETIM 6.0': 'EC001181', 'ETIM 7.0': 'EC001181', 'ETIM 8.0': 'EC001181', 'ETIM 9.0': 'EC001181', 'ETIM 10.0': 'EC001181', 'ECLASS 9.0': '27-43-03-19', 'ECLASS 9.1': '27-14-44-90', 'ECLASS 10.0': '27-43-03-19', 'ECLASS 11.0': '27-43-03-19', 'ECLASS 12.0': '27-43-03-19', 'ECLASS 13.0': '27-43-03-19', 'ECLASS 14.0': '27-43-03-19', 'ECLASS 15.0': '27-43-03-19'}
