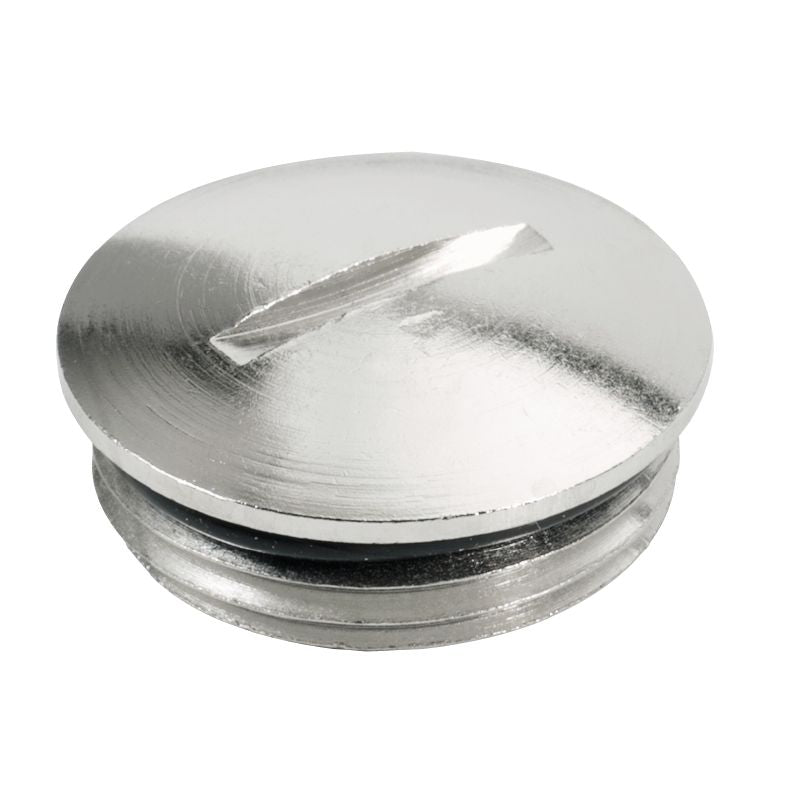

1777730000 - Brass M16 Blanking Plug, 18mm Diameter, RoHS Compliant (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

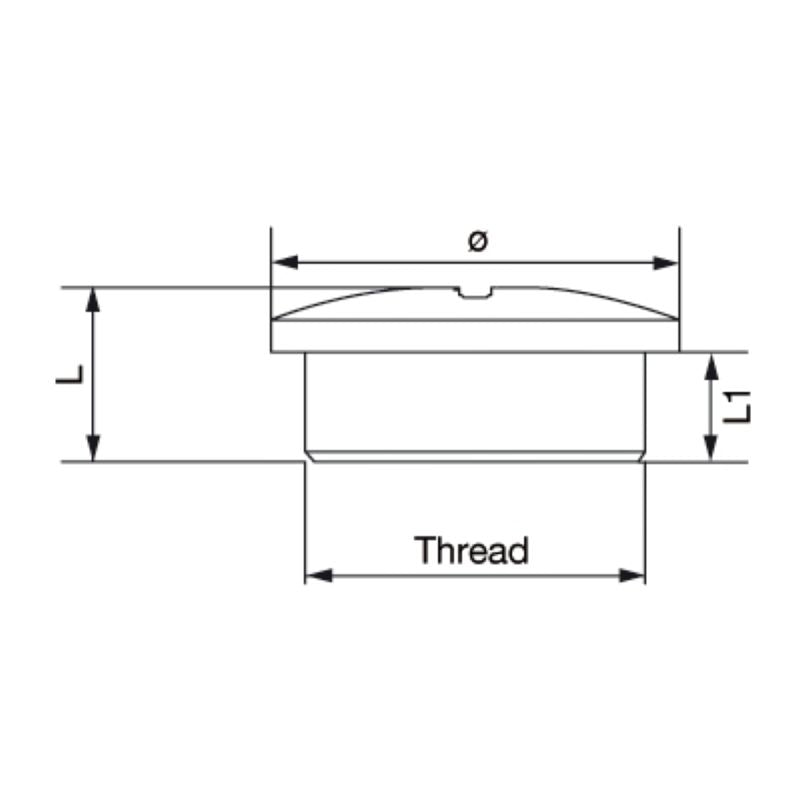

Introducing the VP M16-MS65, a robust closed-state blanking plug crafted from durable brass and enhanced with a sleek nickel plating This plug is equipped with an M16 external thread and a sealing ring diameter of 16 mm, making it highly functional Its dimensions are compact, measuring 8 mm in height and length, with a diameter of 18 mm, and a wall thickness that ranges from a minimum of 05 mm to a maximum of 4 mm.

Engineered to perform optimally in temperatures between -40 °C and 100 °C, this product also adheres to RoHS standards, making it both reliable and environmentally compliant.

Features and Benefits:

•Made from brass with nickel plating.

•IP68 protection rating, suitable for up to 5 bar (30 minutes).

•No halogen content.

•Threads with a pitch of 1.5 mm.

•Includes an NBR O-Ring for sealing.
