1776950000 - IP65 40mm Sealing Plug - Durable PA6 Design (Pack of 25)

1776950000 - IP65 40mm Sealing Plug - Durable PA6 Design (Pack of 25)

SKU: SKU: 1776950000 Download PDF

Variant:
  • 1776950000 - IP65 40mm Sealing Plug - Durable PA6 Design (Pack of 25)
Regular price Now $38.86
Regular price BEFORE   $0.00 Sale price Now $38.86
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

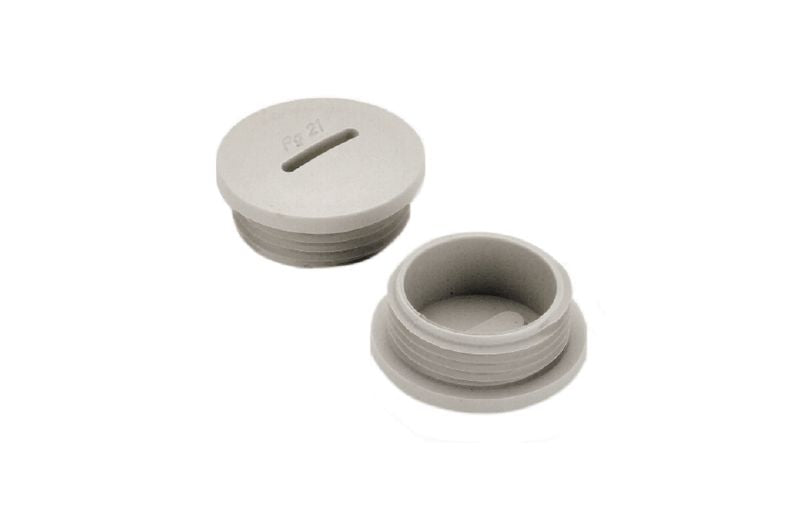

Introducing the VP M40 K54 blanking plug, expertly crafted from Polyamide 6 (PA6 - GF30) This component features a 40 mm diameter and a sturdy minimum wall thickness of 05 mm, designed to function effectively in a closed position With its IP65 compliance, this plug offers reliable protection against dust and water, ensuring outstanding durability Tailored for metric applications, it fits M 40 external threads seamlessly and can endure temperatures between -40 °C and 100 °C.

This plug is ideal for any setting that requires strong, effective sealing solutions.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •IP65 protection degree for high durability.

    •Operates within a temperature range of -40 °C to 100 °C.

    •Constructed from durable Polyamid 6 (PA6 - GF30).

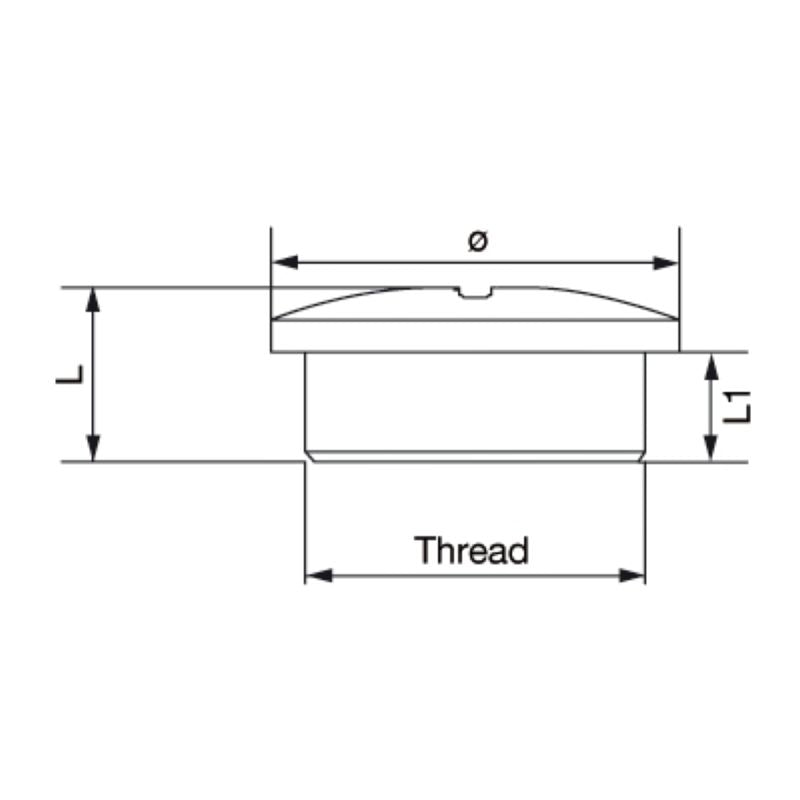

Specifications:

 Height 5 mm
 Length 7 mm
 Diameter 40 mm
 Wall thickness, min. 0.5 mm
 Wall thickness, max. 12 mm
 Operating temperature range, max. 100 °C
 Operating temperature range, min. -40 °C
 Head diameter 46 mm
 Length of thread 13 mm
 Pitch of thread 1.5 mm
 Protection degree IP54
 Protection degree with GWDR IP65
 UL 94 flammability rating V-2
 General material Polyamid 6 (PA6 - GF30)
 Cable gland metric
