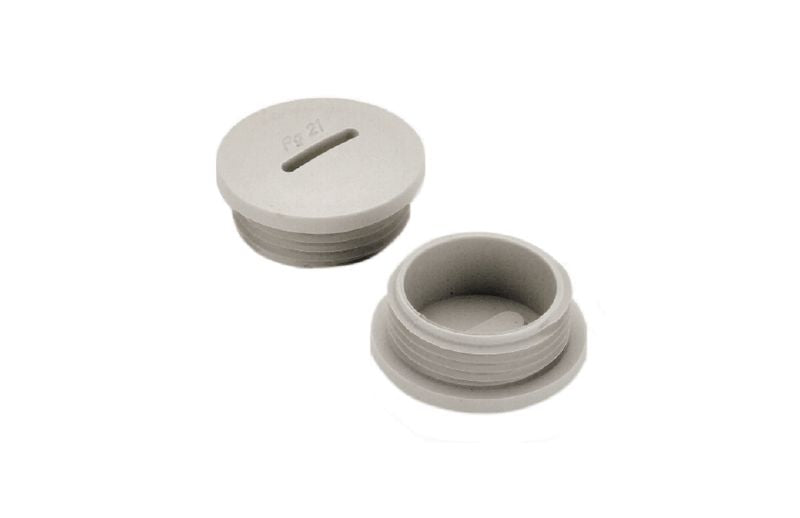

1776920000 - M16 Blanking Plug, 16mm Diameter, IP65 Protection, Polyamid 6 (Pack of 100)

1776920000 - M16 Blanking Plug, 16mm Diameter, IP65 Protection, Polyamid 6 (Pack of 100)

SKU: SKU: 1776920000 Download PDF

Variant:
  • 1776920000 - M16 Blanking Plug, 16mm Diameter, IP65 Protection, Polyamid 6 (Pack of 100)
Regular price Now $28.08
Regular price BEFORE   $0.00 Sale price Now $28.08
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Meet the VP M16 K54 blanking plug, expertly crafted for M16 applications Made from Polyamid 6 with a glass fiber blend, this plug is not only durable but also offers impressive IP65 protection It's engineered to operate efficiently in temperature conditions ranging from -40 °C to 100 °C The wall thickness ranges from 05 mm to 6 mm, enhancing its strength for various settings Additionally, it complies with RoHS regulations, ensuring that it contains no substances of very high concern (SVHC) above 0.

1 weight percent Ideal for reliable functionality in various environments.

Features and Benefits:

    •IP65 protection degree.

    •Compliant with RoHS.

    •No SVHC above 0.1 wt%.

    •Constructed from Polyamid 6 (PA6 - GF30).

    •Metric cable gland.

    •Protection against environmental factors.

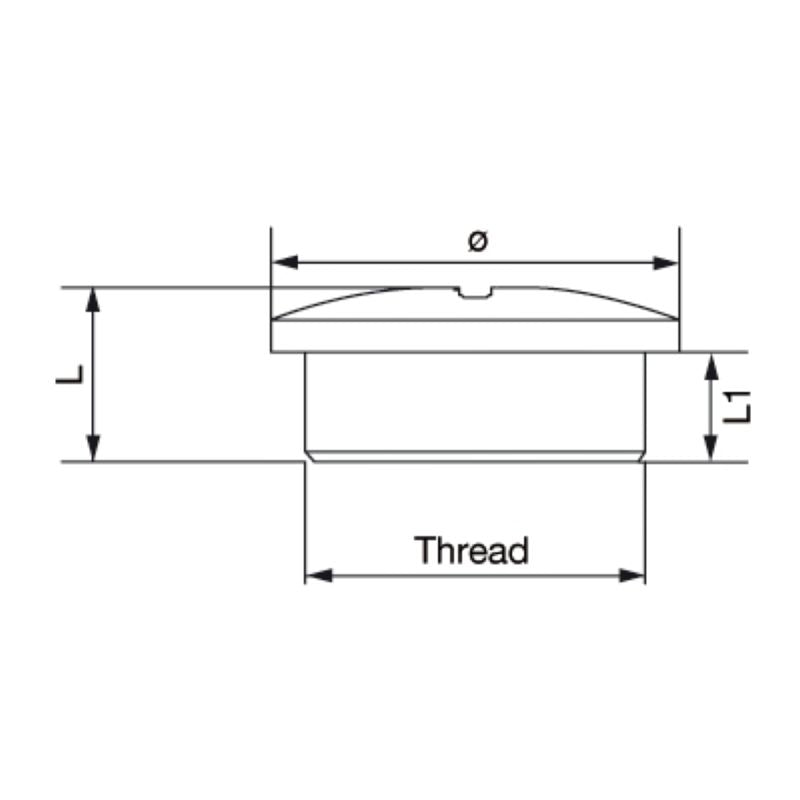

Specifications:

 Height 4.5 mm
 Length 5.5 mm
 Diameter 16 mm
 Operating temperature -40 °C to 100 °C
 Wall thickness, min. 0.5 mm
 Wall thickness, max. 6 mm
 Head diameter 20 mm
 Length of thread 7 mm
 Pitch of thread 1.5 mm
 Protection degree IP54
 Protection degree with GWDR IP65
 UL 94 flammability rating V-2
 General material Polyamid 6 (PA6 - GF30)
 Diameter of sealing ring 16 mm
 External thread M 16
