Home / CABLE ENTRY SYSTEMS AND COMPONENTS / 1218990000 - M50 Brass Blanking Plug, Hexagonal Head, 22mm Length (Pack of 6)
1 1

1218990000 - M50 Brass Blanking Plug, Hexagonal Head, 22mm Length (Pack of 6)

1218990000 - M50 Brass Blanking Plug, Hexagonal Head, 22mm Length (Pack of 6)

SKU: 1218990000 Download PDF

Variant:
  • 1218990000 - M50 Brass Blanking Plug, Hexagonal Head, 22mm Length (Pack of 6)
Now $188.93
BEFORE   $0.00 Now $188.93
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

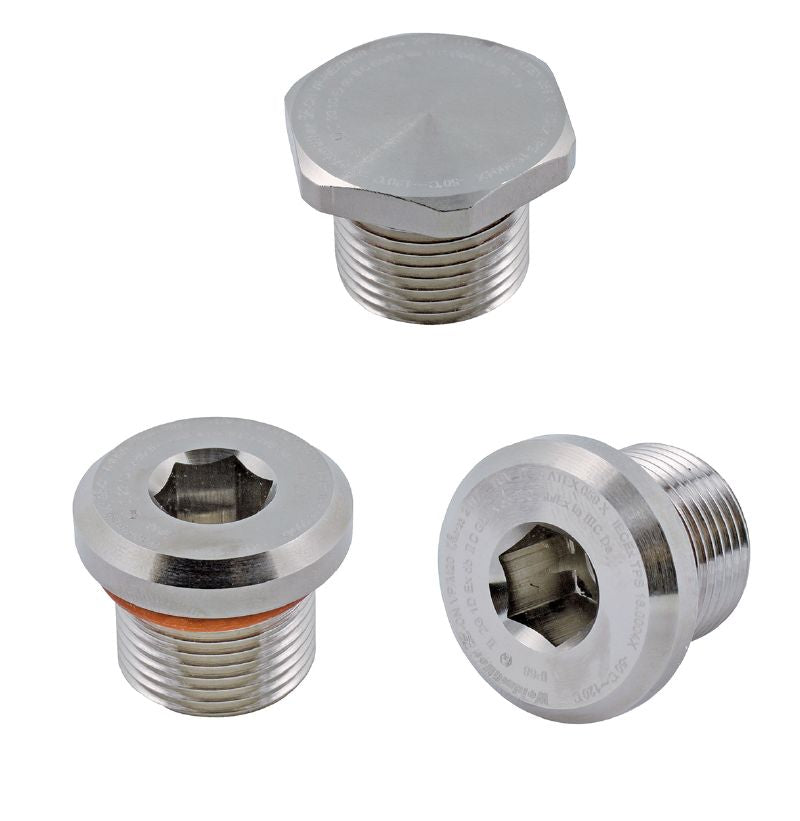

Introducing the VP-HEX, a reliable blanking plug engineered with a hexagonal head, optimized for a nominal size of M 50 x 15 With a compact length of 22 mm and a diameter of 50 mm, this plug is crafted from robust brass and is elegantly nickel-plated to enhance its longevity and resistance to wear, making it an excellent choice for various applications.

Features and Benefits:

    •Halogen-free.

    •Impact resistance rated at 7.00 J.

    •Meets IP66 and IP68 protection degrees.

    •Silicone O-ring for improved sealing.

    •Compliant with multiple safety standards including EN 60079 and IEC 60079.

Specifications:

 Height 22 mm
 Width 66 mm
 Length 22 mm
 Diameter 50 mm
 Wall thickness, min. 0.5 mm
 Wall thickness, max. 15 mm
 Operating temperature -50 °C...120 °C
 Basic material Brass, nickel-plated
 Cable gland M 50
 Diameter of sealing ring 50 mm
 Explosion protection type Ex d - flameproof, Ex e - increased safety
 External thread M 50 x 1.5
 Length of thread 16 mm
 Pitch of thread 1.5 mm
 Tightening torque 100 Nm
 RoHS Compliance Status Compliant with exemption
 REACH SVHC Lead 7439-92-1
 Certificate No. (IECEX) IECEXTPS16.0004X
 Certificate no. cable gland (ATEX) TÜV IT 16ATEX 059X
 Certificate no. cable gland (CCC) 2020322313000069
 Certificate no. cable gland (IECEx) IECEx TPS 16.0004X
 Identification II 2G 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
 Environmental Product Compliance RoHS Compliance Status
 SCIP 0c0edf9f-b35a-4d1f-b8f0-99d4b22ac203
 AF size 1 60 mm
 Silicone Yes
