Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

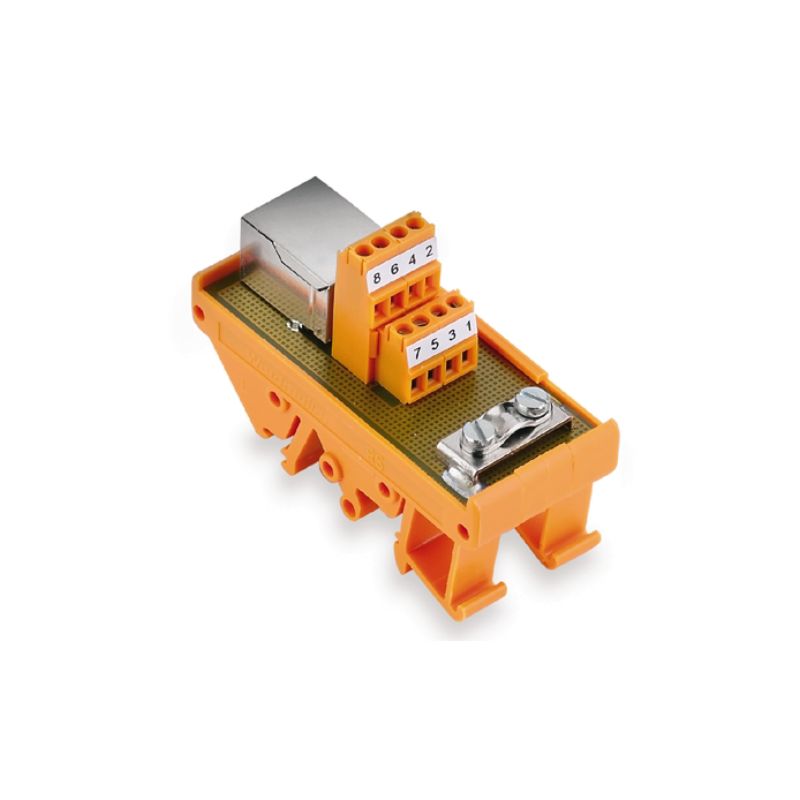

Introducing the RS RJ45 interface, equipped with 8-pole RJ45 plug connectors adorned with a secure screw connection This product adheres to RoHS standards and is completely free from any exemptions It is built to operate efficiently within a temperature range of -25 °C to 50 °C With a rated voltage of 50 V and a current rating of 1 A, it supports a maximum total operating current of 15 A This interface boasts a remarkable transmission rate of up to 100 MBit/s and meets the specifications of Cat.

5 classification, ensuring reliable connectivity for your networking needs.

Features and Benefits:

•Compliant with RoHS.

•Operating temperature range: -40 °C to 70 °C.

•Connection on control side features RJ45 plug-in connectors.

•Earthing capability.

•Transmission rate up to 100 MBit/s.

Specifications:

Depth	48 mm
Height	70 mm
Width	30 mm
Net weight	34.879 g
Rated current I N	1 A
Rated voltage U N	50 V
Operation temperature UL, max	50 °C
Operation temperature UL, min	-25 °C
Rated current per connection	1 A
Total operating current	1.5 A
Insulation coordination	According to DIN EN 50178
Surge voltage category	III
Pollution severity level	2
Tightening torque, max	0.25 Nm
Tightening torque, min	0.2 Nm
Rated insulation voltage	<50 V AC
Contact material (control side)	Phosphor-bronze 6μ AU
Number of poles (control side)	8-pole
Connection (field side)	LM2N 3.5mm
Type of connection	Screw connection
Transmission rate	Cat. 5, 100 MBit/s
Clamping range, max	2.08 mm²
Clamping range, min	0.08 mm²
Flexible with sleeve, min	0.5 mm²
Flexible, max	H05(07) V-K 1.5 mm²
Flexible, min	H05(07) V-K 0.5 mm²
Max. wire cross-section	AWG 14
Min. wire cross-section	AWG 28
Sleeve with plastic collar, max	0.75 mm²
Solid, max	H05(07) V-U 1.5 mm²
Solid, min	H05(07) V-U 0.5 mm²
Stripping length	5 mm
Pulse voltage test	0.8 kV
Insulation test voltage AC	0.35 kV
