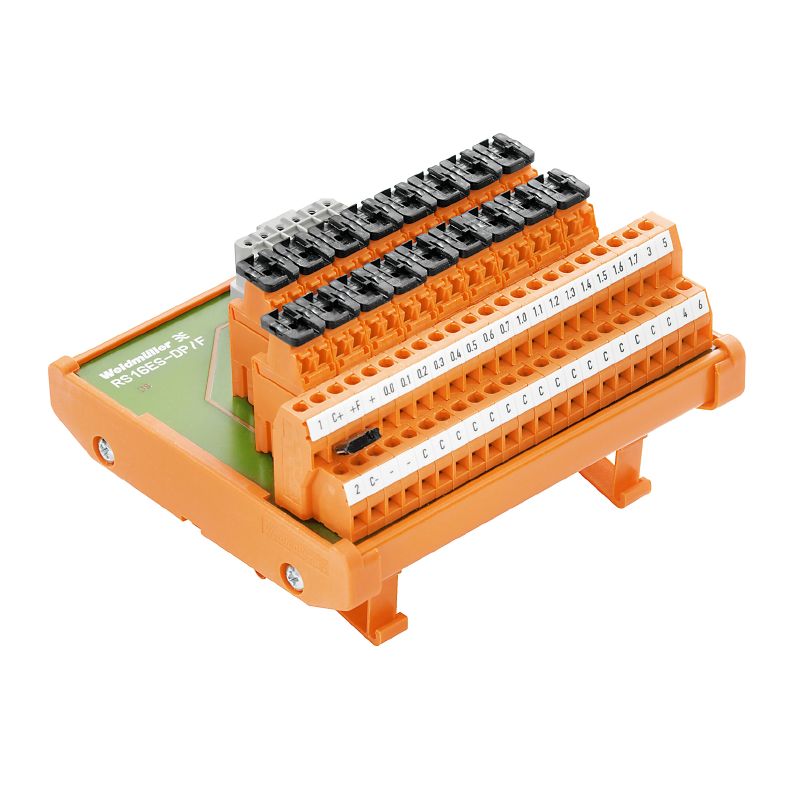

9441560000 - Compact 2-Wire Interface Unit, 72mm Depth, UL Certified

9441560000 - Compact 2-Wire Interface Unit, 72mm Depth, UL Certified

SKU: 9441560000   Download PDF

Select a Variant:
  • 9441560000 - Compact 2-Wire Interface Unit, 72mm Depth, UL Certified
Qty:
Now $156.33   Web pricing policy
BEFORE   $0.00 Now $156.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RS 16IO 2W F R S, a reliable 2-wire interface unit specifically crafted for screw connection applications This unit meets RoHS compliance standards and proudly holds UL certification, with the certificate number E141197 With compact dimensions of 72 mm in depth, 109 mm in height, and 123 mm in width, it has a net weight of 35024 g Engineered to operate under diverse conditions, it can withstand storage temperatures ranging from -40 to 60 °C and operational temperatures between -25 to 50 °C, making it a versatile choice for various environments.

Features and Benefits:

    •Screw connection interface.

    •RoHS compliant.

    •UL certified.

    •Compact dimensions.

Specifications:

 Depth 72 mm
 Height 109 mm
 Width 123 mm
 Net weight 350.24 g
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated current I N 1 A
 Rated current I max 1 A
 Rated voltage U N 142 V
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 3 A
 Rated voltage fuse U N (supply) 250 V
 Rated current fuse (supply) 3.15 A
 Rated voltage fuse U N (channel) 250 V
 Rated current fuse (channel) 1 A
 Max. current per channel 1 A
 Total operating current 3 A
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage <150 V AC
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 1.5 kV
 Insulation test voltage AC 1.1 kV
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.2 mm²
 Max. wire cross-section, AWG AWG 14
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
