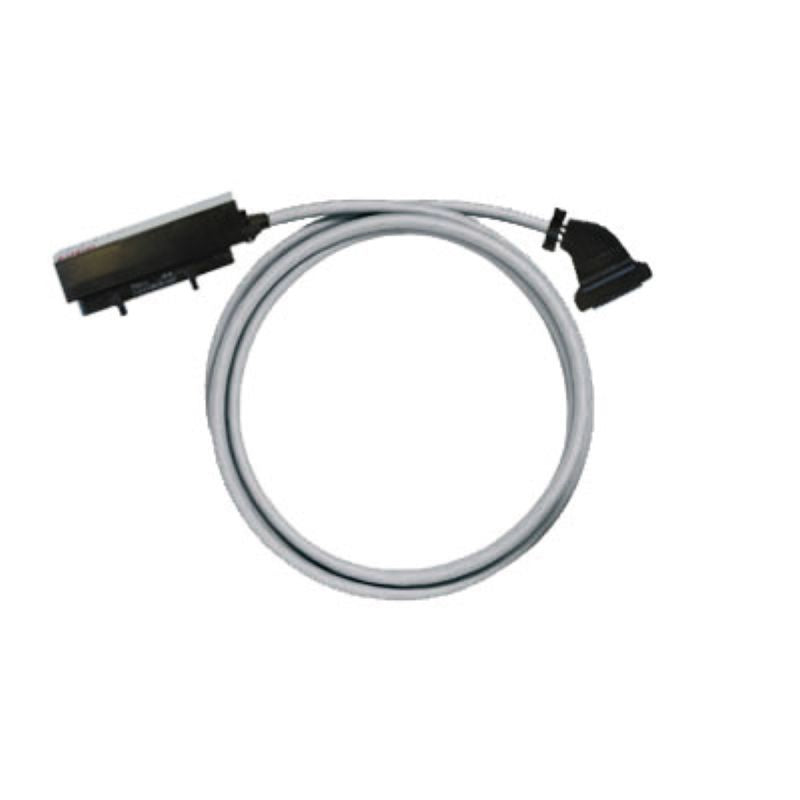

7789059020 - 2m LiYY 0.25mm² Cable with HE10 Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Presenting a pre-assembled LiYY cable, featuring a cross-section of 025 mm², specifically crafted for digital signal transmission This reliable cable operates optimally within a temperature spectrum of -10°C to 50°C and can be stored safely at temperatures between -10°C and 60°C It is equipped with a 20-pole HE10 interface connector, making it compatible with the ROCKWELL CONTROL LOGIX 1756-TBCH 36P system.

Features and Benefits:

•Compliant with RoHS exemptions.

•Low resistance of ≤ 80 mΩ/m.

•Permissible maximum current strength of 1 A per path.

•Total maximum current of 3 A.

•Outer diameter of 8.6 ± 1 mm.

•High voltage test capability of 1 KV for 1 second.

•Cable capacity of 300 pF/m for both wire/shield and wire/wires.

•Rated voltage up to 60 Vdc and 25 Vac.

•Suitable for digital signals.

Specifications:
