9447000000 - RSM-8 Tension-Clamp Connector for Compact Applications

9447000000 - RSM-8 Tension-Clamp Connector for Compact Applications

SKU: 9447000000 Download PDF

Variant:
  • 9447000000 - RSM-8 Tension-Clamp Connector for Compact Applications
Now $164.70
BEFORE   $0.00 Now $164.70
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

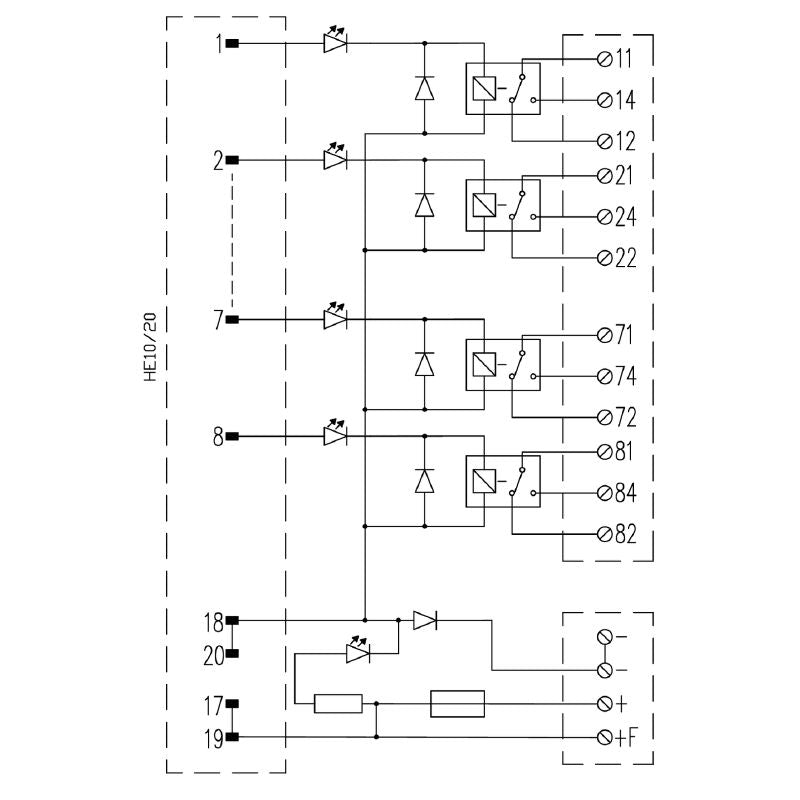

Description:

Introducing the RSM-8 C 1CO Z, engineered for compact connections through its innovative RCL tension-clamp interface This device excels in various applications that demand specific operational standards and adhere to environmental regulations It holds essential certifications like RoHS, emphasizing its commitment to environmental safety With a design that promotes optimal performance across diverse operating conditions, this product is a reliable choice for your connectivity needs.

Features and Benefits:

    •LED status indicators for both the relay and power supply.

    •No fuse per relay.

    •Mechanical service life of 3 million switching cycles.

    •Utilizes tension-clamp connections for field and supply connections.

    •Use in control systems and other electronic applications requiring reliable relay contacts.

Specifications:

 Depth 68 mm
 Height 109 mm
 Width 110 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Input voltage 24 V DC ± 10%
 Input current 20 mA
 Power rating 0.4 VA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 Vdc ≤ 250 Vac
 Max. AC continuous current 5 A
 AC peak current 16 A
 Minimum contact current 0.01 A
 Minimum contact voltage 10 V
 Insulation coordinates (EN50178) According to DIN EN 50178
 Rated input insulation voltage < 50 V AC
 Rated output insulation voltage < 250 V AC
 Overvoltage category input/input III
 Overvoltage category input/output III
 Overvoltage category output/output II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Clearance input/output ≥ 5.5 mm
 Clearance input/input ≥ 0.2 mm
 Clearance output/output ≥ 1.17 mm
 Clamping range (max) 2.5 mm²
 Clamping range (min) 0.13 mm²
 Stripping length 7 mm
