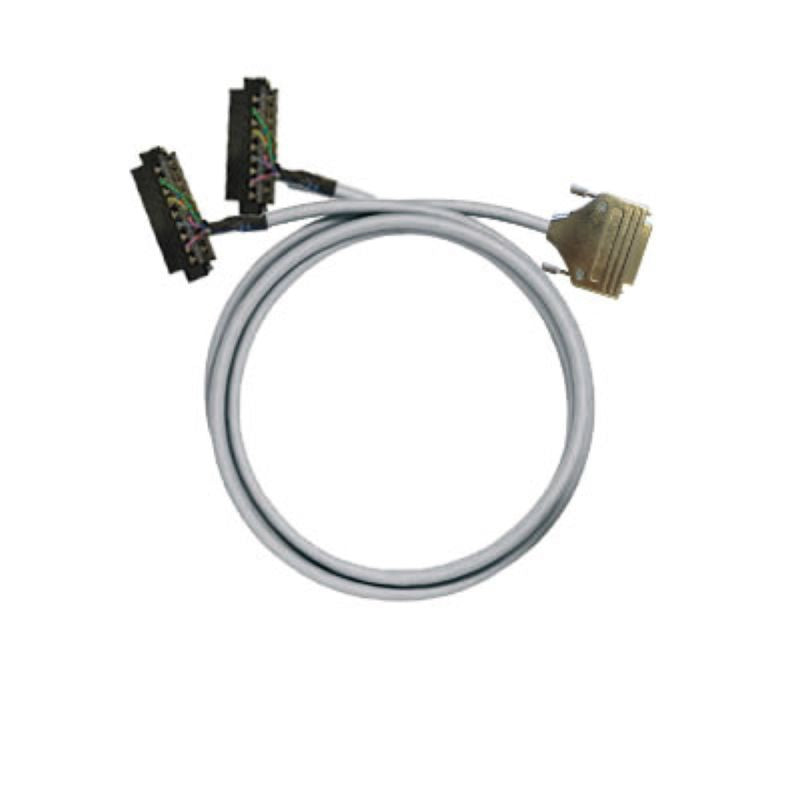

7789045030 - 3m LiYCY Pre-Assembled Cable for Analogue Signals

7789045030 - 3m LiYCY Pre-Assembled Cable for Analogue Signals

SKU: SKU: 7789045030   Download PDF

Select a Variant:
  • 7789045030 - 3m LiYCY Pre-Assembled Cable for Analogue Signals
Qty:
Regular price Now $380.64   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $380.64 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PAC-CMLX-SD25-V2-3M pre-assembled cable, expertly crafted for analogue signal applications This robust cable is made from high-quality LiYCY material and boasts a wire cross-section of 025 mm² Spanning a length of 3 meters, it features a minimum of 25 poles and has an outer diameter of approximately 1015 mm Additionally, it complies with RoHS standards, making it a reliable choice for your connectivity needs.

Features and Benefits:

    •Made from PVC material.

    •Compliant with RoHS and REACH regulations.

    •Suitable for analogue signals.

    •High voltage test rating of 1 KV for 1 second.

    •Performs with a total current of up to 3 A.

Specifications:

 Cable length 3 m
 Connector PLC side ROCKWELL 2xCOMPACT LOGIX 1769-RTBN 18P
 Interface connector SUB-D FEMALE 25P
 Outer diameter 10.15 ± 1 mm
 Capacity wire / shield 300 pF/m
 Capacity wire / wires 300 pF/m
 Permissible current strength per path, max 1 A
 Rated voltage ≤ 60 Vdc ≤ 25 Vac
 Resistance ≤ 80 mΩ/m
 Net weight 716 g
 Storage temperature -10...60 °C
 Operating temperature -10...50 °C
