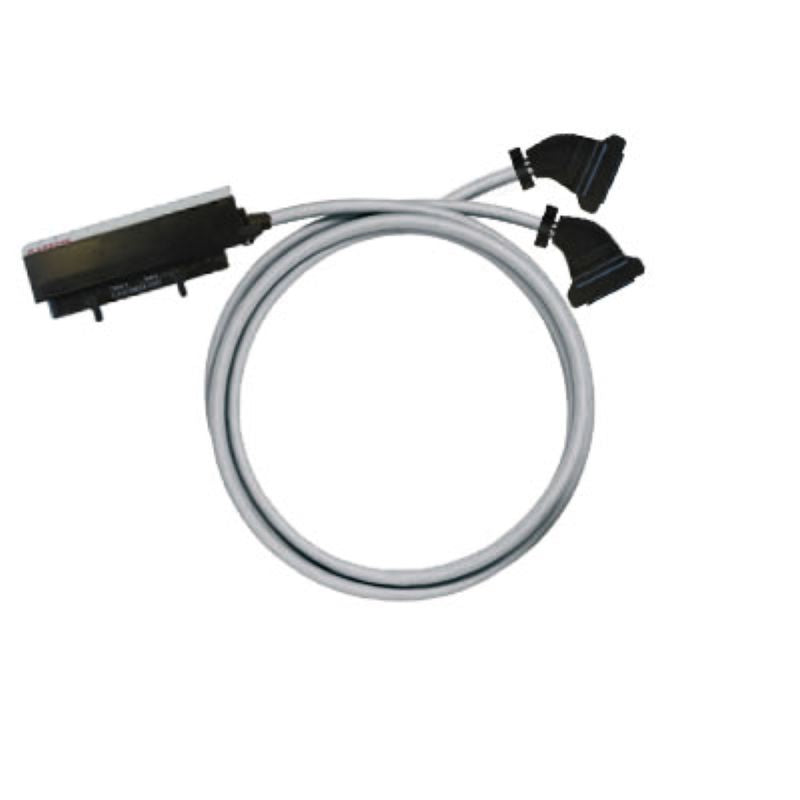

7789042040 - 4m LiYY Cable with Control Logix & HE10 Connectors

7789042040 - 4m LiYY Cable with Control Logix & HE10 Connectors

SKU: SKU: 7789042040   Download PDF

Select a Variant:
  • 7789042040 - 4m LiYY Cable with Control Logix & HE10 Connectors
Qty:
Regular price Now $408.61   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $408.61 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the pre-assembled PAC cable, crafted with a LiYY cable type showcasing a 025 mm² wire cross-section Measuring 4 meters in length, this cable features an outer diameter of 86 ± 1 mm, making it suitable for a variety of applications One end is fitted with a Rockwell Control Logix connector while the opposite end has a flat HE10 connector This cable is engineered for efficient digital signal transmission and comes with multiple relevant certifications for assurance.

Features and Benefits:

    •Net weight of 1,220 g.

    •Storage temperature ranging from -10 to 60 °C.

    •Operating temperature from -10 to 50 °C.

    •Compliant with RoHS and REACH regulations.

    •Suitable for digital signals.

Specifications:

 Cable length 4 m
 Number of poles, min. 20-pole
 Wire cross-section 0.25 mm²
 Permissible current strength per path, max. 1 A
 Rated voltage ≤ 60 Vdc ≤ 25 Vac
 Resistance ≤ 80 mΩ/m
 Total current, max. 3 A
 High voltage test 1 KV/1s
 Capacity wire / shield 300 pF/m
 Capacity wire / wires 300 pF/m
 Outer diameter 8.6 ± 1 mm
 Basic material PVC
