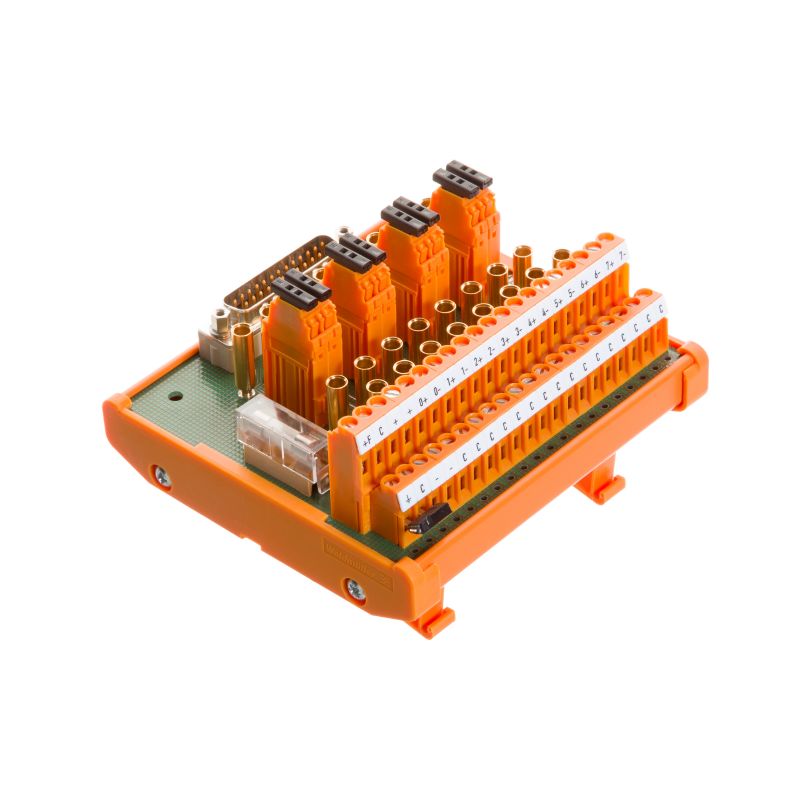

9449110000 - 2-Wire Interface Module, 81mm Depth, RoHS Compliant

9449110000 - 2-Wire Interface Module, 81mm Depth, RoHS Compliant

SKU: 9449110000   Download PDF

Select a Variant:
  • 9449110000 - 2-Wire Interface Module, 81mm Depth, RoHS Compliant
Qty:
Now $165.33   Web pricing policy
BEFORE   $0.00 Now $165.33 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a sophisticated 2-wire interface device equipped with a reliable tension-clamp connection With dimensions measuring 81 mm in depth (3189 inches), 109 mm in height (4291 inches), and 114 mm in width (4488 inches), this product is both compact and efficient Weighing in at 327 grams, it is built to operate effectively in a range of temperatures, from -20 to 50 °C during use, and can be safely stored between -40 to 60 °C.

This device meets stringent RoHS requirements and carries UL certification, ensuring it adheres to high safety standards It supports a rated voltage of up to 25 V AC and 50 V DC, with a maximum channel current of 05 A and a total supply current of 3 A This product is designed to meet a variety of functional needs while maintaining safety and reliability.

Features and Benefits:

    •Tension-clamp connection for easy wiring.

    •LED status display not available.

    •Disconnection capability per channel.

    •Current-measuring test point present.

    •Common pole polarity can be selected.

    •Rated current fuse of 3.15 A.

Specifications:

 Operating voltage <= 25 V AC / 50 V DC
 Max current for common pole 3.15 A
 Max current per channel 0.5 A
 Insulation coordination According to DIN EN 50178
 Rated insulation voltage <50 V AC
 Surge voltage category III
 Pollution severity level 2
 Pulse voltage test 0.8 kV
 Insulation test voltage AC 0.35 kV
 Clamping range max (field side) 2.5 mm²
 Clamping range min (field side) 0.13 mm²
 Solid wire max 1.5 mm²
 Flexible wire min 0.5 mm²
 Wire cross-section AWG max AWG 14
 Wire cross-section AWG min AWG 26
 Stripping length 7 mm
 Type of connection Tension-clamp connection
 Power supply fuse 3.15 A
 Connection supply clamping range min 0.13 mm²
 Connection supply clamping range max 2.5 mm²
