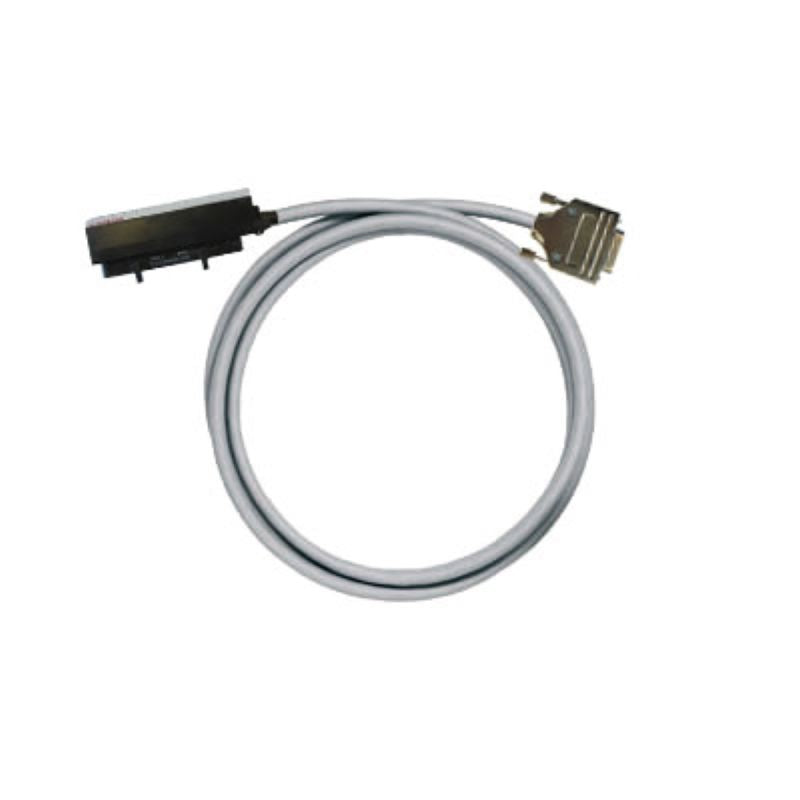

7789033030 - 3m PVC Cable with ROCKWELL 20P & SUB-D 15P Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the pre-configured PAC-CTLX-SD15-V0-3M cable, designed to cater to your analogue signal needs Measuring 3 meters in length, this cable features a robust PVC construction with a cross-section of 025 mm² One end is equipped with a ROCKWELL CONTROL LOGIX 1756-TBNH 20P connector, while the opposite end has a SUB-D FEMALE 15P connector Engineered for efficiency, this cable complies with RoHS standards and operates well in temperatures ranging from -10°C to +50°C, with a storage tolerance of up to +60°C.

It has an outer diameter of roughly 87 mm and weighs 506 grams With electrical specifications including a rated voltage of 60 Vdc and a maximum current of 1 A per path—boasting a total current capacity of 3 A—this cable is the ideal choice for reliable connectivity.

Features and Benefits:

•Compliant with RoHS standards.

•Suitable for analogue signals.

•PVC basic material.

•Outer diameter of 8.7 mm.

Specifications:
