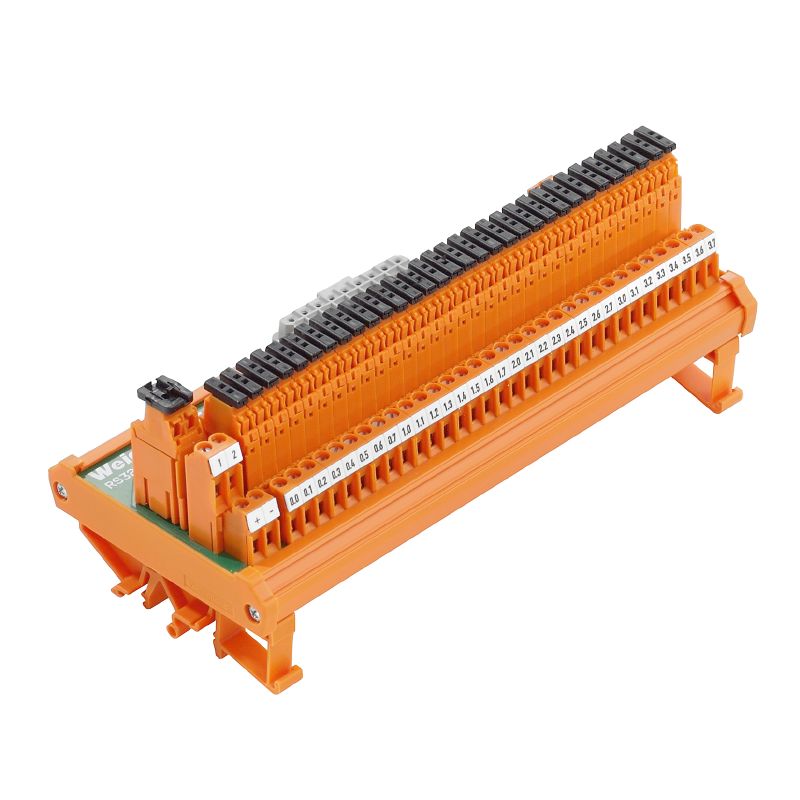

9441870000 - 1-Wire Interface Module, 188mm Width, 3A Max Current

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RS 32IO 1W I R S, an advanced device crafted for a reliable 1-wire interface featuring screw connections, ideal for a wide range of uses This compact unit measures 188 mm in width, 87 mm in height, and 72 mm in depth, weighing approximately 38016 g Engineered to function within a temperature span of -25 to 50 °C, it meets RoHS compliance standards, with certain exemptions Operating with a rated voltage of 250 V AC and a supply voltage of 24 V DC, this model supports up to 3 A for power supply while allowing 1 A per individual channel.

The design incorporates channel disconnection capabilities and conforms to Standard EN 50178 for insulation coordination, ensuring a dependable total operating current of 3 A.

Features and Benefits:

•Screw connection type.

•LED status display not available per channel.

•Disconnection capability per channel.

•No fuse per channel.

•Power supply fuse rating at 3.15 A.

•Max. tightening torque of 0.6 Nm.

Specifications:
