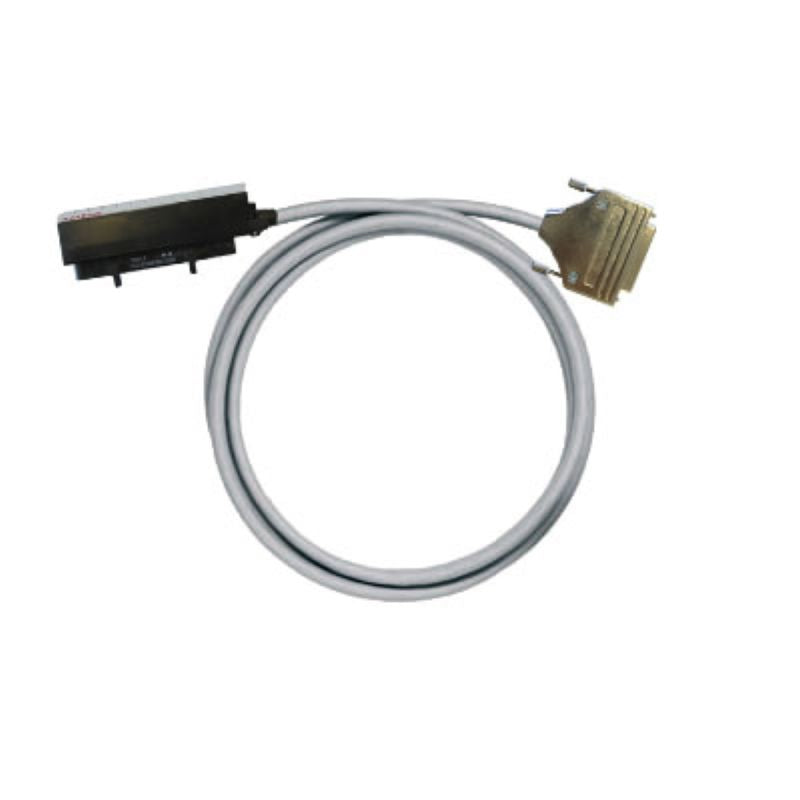

7789037025 - 2.5m Pre-assembled Cable with 0.25mm² for Analog Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Optimize your connectivity with the pre-assembled cable model PAC-CTLX-SD25-V2-2M5, designed for reliable analog signal transmission Measuring 25 meters in length and constructed with a 025 mm² size, this cable is equipped with a ROCKWELL CONTROL LOGIX 1756-TBNH 20P connector on one end and a SUB-D FEMALE 25P interface connector on the opposite end Compliant with RoHS standards, it operates effectively within a temperature range of -10 to 50 °C and has a weight of 624 grams, making it a practical choice for your electronic needs.

Features and Benefits:

•Complies with RoHS compliance status.

•Suitable for analog signals.

•Cable LiYCY material.

•Outer diameter of 10.15 ± 1 mm.

•Capacity of 300 pF/m for both wire/shield and wire/wires.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Maximum permissible current strength of 1 A.

•Total maximum current of 3 A.

•High voltage test at 1 KV for 1 second.

Specifications:
