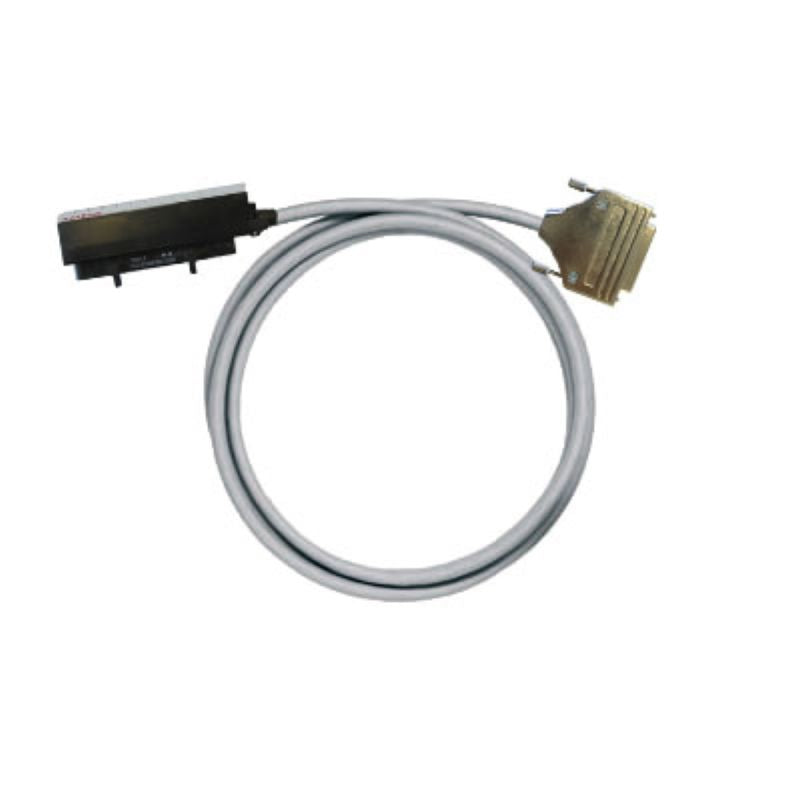

7789035025 - 2.5m Pre-Assembled Cable with 0.25 mm² Wire & Connectors

SKU: SKU: 7789035025 Download PDF

Select a Variant:

7789035025 - 2.5m Pre-Assembled Cable with 0.25 mm² Wire & Connectors

SET THE QTY:

Now $402.09 Web pricing policy

~~BEFORE $0.00~~ Now $402.09 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PAC-CTLX-SD25-V0-2M5 pre-assembled cable, a reliable choice for your connection needs Measuring 25 meters in length, this cable features a 025 mm² wire cross-section and a durable PVC material On one end, you'll find a ROCKWELL CONTROL LOGIX 1756-TBCH 36P connector, while the other side is equipped with a SUB-D FEMALE 25P interface connector Designed specifically for analogue signals, this cable boasts an outer diameter of 10.

15 ± 1 mm and meets RoHS compliance standards, making it ideal for a variety of applications.

Features and Benefits:

•Compliant with RoHS exemption.

•Has a net weight of 632 g.

•Storage temperature range of -10 to 60 °C.

•Operating temperature range of -10 to 50 °C.

•Suitable for analogue signals.

Specifications:

Cable	Cable LiYCY
Cable length	2.5 m
Connector PLC side	ROCKWELL CONTROL LOGIX 1756-TBCH 36P
Interface connector	SUB-D FEMALE 25P
Number of poles, min.	25-pole
Outer diameter	10.15 ± 1 mm
Wire cross-section	0.25 mm²
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
High voltage test	1 KV/1s
Permissible current strength per path, max.	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Resistance	≤ 80 mΩ/m
Total current, max.	3 A
RoHS Compliance Status	Compliant with exemption
RoHS Exemption	6c
REACH SVHC	Lead 7439-92-1
SCIP	4bbf2c0d-0764-4fc8-bb24-9351c28c190d
ETIM classifications	{'6.0': 'EC000237', '7.0': 'EC000237', '8.0': 'EC000237', '9.0': 'EC000237', '10.0': 'EC000237'}
ECLASS classifications	{'9.0': '27-24-22-20', '9.1': '27-24-22-20', '10.0': '27-24-22-20', '11.0': '27-24-22-20', '12.0': '27-24-22-20', '13.0': '27-24-22-20', '14.0': '27-24-22-20', '15.0': '27-24-22-20'}
