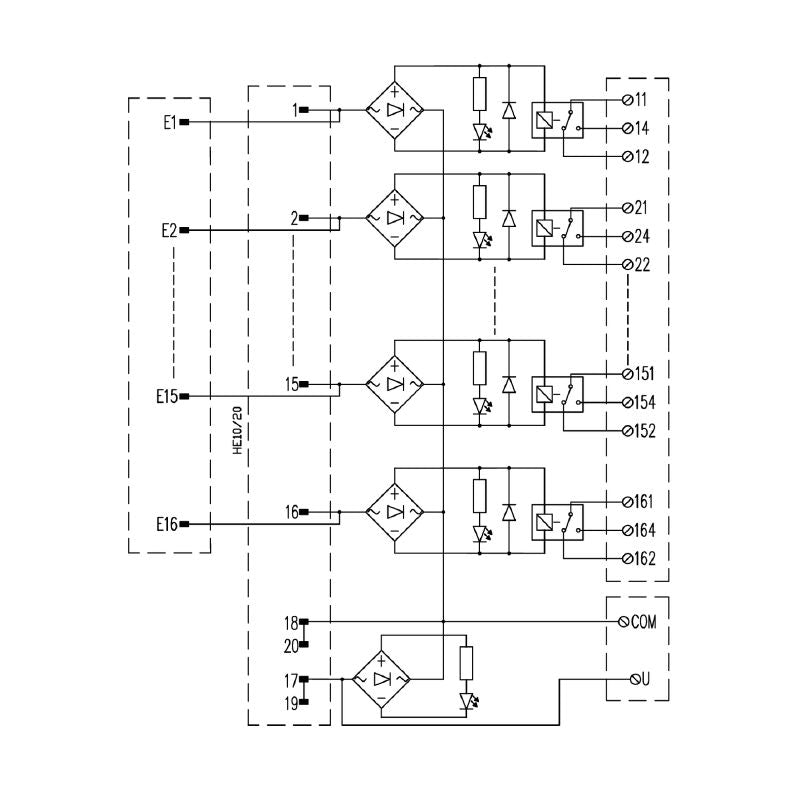

9444610000 - 24V Relay Module with LED Indicators and Screw Connections

9444610000 - 24V Relay Module with LED Indicators and Screw Connections

SKU: 9444610000 Download PDF

Variant:
  • 9444610000 - 24V Relay Module with LED Indicators and Screw Connections
Now $287.43
BEFORE   $0.00 Now $287.43
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16 24V(-/+) 1CO S relay module—a versatile solution designed for a wide range of applications With its convenient screw connections, this module ensures easy installation Each relay is equipped with an LED status indicator, featuring a green light to signal operation and a yellow light to indicate supply voltage Compliant with RoHS standards, it operates effectively within specified temperature ranges.

This relay module guarantees dependable performance for all your switching needs, backed by its rated mechanical life and appropriate input and output specifications.

Features and Benefits:

    •LED status display for real-time monitoring.

    •No fuses required for operation per relay.

    •Potential-free contact for versatile applications.

    •Clamping range suitable for various wire sizes.

Specifications:

 Depth 68 mm
 Height 87 mm
 Width 267 mm
 Net weight 655 g
 Storage temperature -40...60 °C
 Operating temperature -25...40 °C
 Input voltage 24 V DC ± 10%
 Input current 22 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 Vdc ≤ 250 Vac
 Max. AC continuous current 5 A
 AC peak current 16 A
 Minimum contact current 0.01 A
 Minimum contact voltage 10 V
 Rated input insulation voltage < 50 V AC
 Rated output insulation voltage < 250 V AC
 Overvoltage category input/input III
 Overvoltage category input/output III
 Overvoltage category output/output II
 Pollution severity level 2
 Pulse voltage test 6 kV
 Insulation test voltage AC 2.5 kV
 Clearance input/output ≥ 5.5 mm
 Clearance input/input ≥ 0.2 mm
 Clearance output/output ≥ 1.17 mm
 Max. wire cross-section AWG 12
 Min. wire cross-section AWG 26
 Type of connection Screw connection
