Description:

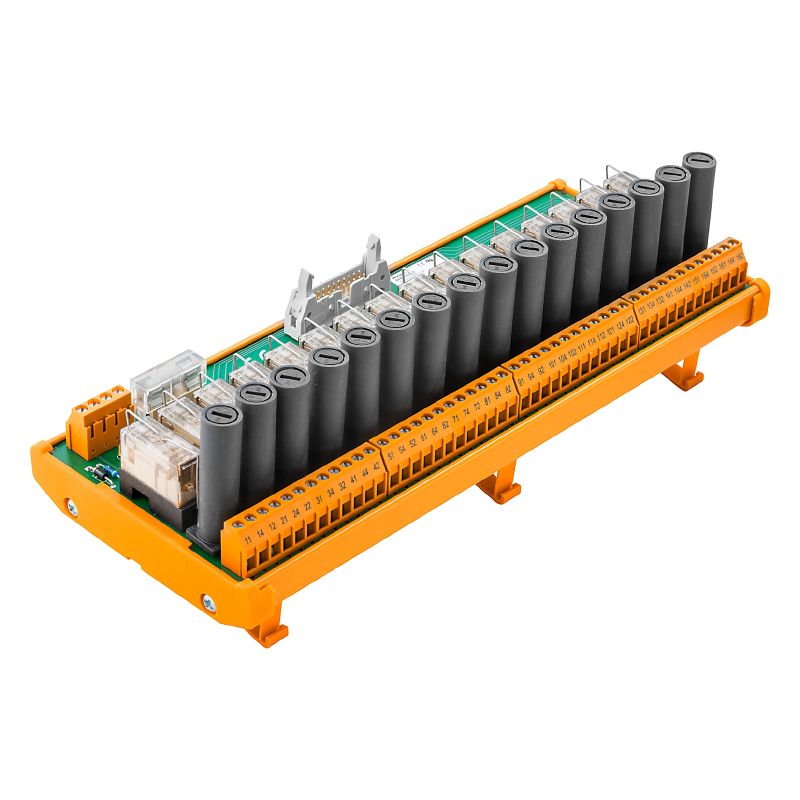

Introducing the RSM-16 FUS 1CO S device, an expertly designed product with multiple certifications, including ROHS compliance It comes equipped with a secure screw connection interface and can handle a rated current of 20 mA at a voltage supply of 24 V This device measures 75 mm deep, 109 mm high, and 261 mm wide, with a weight of 955 g Designed to operate efficiently, it functions in a temperature range of -25°C to 40°C, while it can be stored in conditions as low as -40°C and as high as 60°C.

For connectivity, it features a 20-pole plug on the control side The relay boasts a maximum output current of 5 A, making it a versatile solution for a range of applications, thanks to its sturdy specifications.

Features and Benefits:

•ROHS compliant with exemption.

•LED status display for each relay.

•Power supply fuse rated at 3.15 A.

•Environmentally compliant with REACH regulations.

Specifications:

Depth	75 mm
Height	109 mm
Width	261 mm
Net weight	955 g
Operating temperature	-25...40 °C
Storage temperature	-40...60 °C
Rated current (supply)	2 A
Rated voltage (supply)	24 V
Rated voltage fuse (supply)	250 V
Rated current fuse (supply)	3.15 A
Rated voltage (output)	250 V
Rated current (output)	5 A
Input voltage	24 V DC ± 10%
Power rating	0.4 VA
Mechanical service life	3 x 10⁷ switching cycles
Connection type	Screw connection
