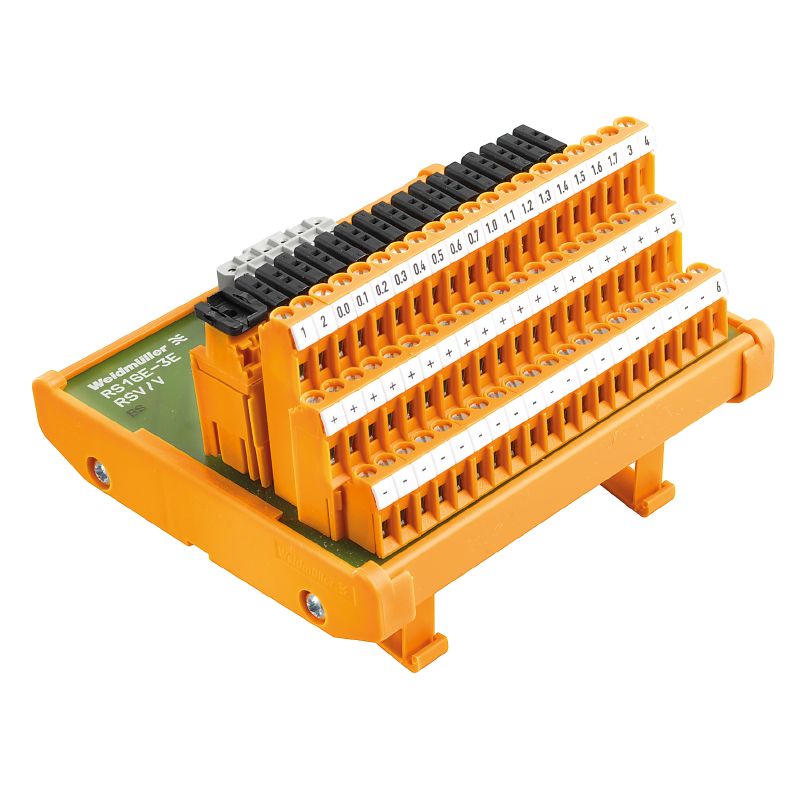

9441600000 - 84mm Deep 3-Wire Screw Connection Device, UL Approved

9441600000 - 84mm Deep 3-Wire Screw Connection Device, UL Approved

SKU: 9441600000   Download PDF

Select a Variant:
  • 9441600000 - 84mm Deep 3-Wire Screw Connection Device, UL Approved
Qty:
Now $132.77   Web pricing policy
BEFORE   $0.00 Now $132.77 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RS 16IO 3W I R S, a reliable device featuring a three-wire interface with a secure screw connection This UL-approved unit, confirmed by certificate number E141197, meets RoHS standards with an exemption Measuring 84 mm deep, 109 mm tall, and 116 mm wide, it has a lightweight design at only 380 grams While it does not include individual LED status indicators per channel, it offers the flexibility to disconnect channels as needed.

With a maximum operating voltage of 150 V UC, it can support up to 1 A of current per channel and a total of 3 A across all channels This model operates on a 24 V DC supply and comes with a power supply fuse rated at 315 A, ensuring reliable functionality for your electrical needs.

Features and Benefits:

    •UL approved.

    •RoHS compliant with exemption.

    •Disconnection per channel.

    •Screw connection-type.

    •LED status display not available.

Specifications:

 Depth 84 mm
 Height 109 mm
 Width 116 mm
 Net weight 380 g
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated current 1 A
 Rated voltage supply 24 V
 Operating voltage 150 V UC
 Total operating current 3 A
 Clamping range, max 6 mm²
 Clamping range, min 0.13 mm²
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
