9441510000 - Compact 1-Wire Device, 72mm Depth, RoHS & UL Certified

9441510000 - Compact 1-Wire Device, 72mm Depth, RoHS & UL Certified

SKU: 9441510000 Download PDF

Variant:
  • 9441510000 - Compact 1-Wire Device, 72mm Depth, RoHS & UL Certified
Now $114.65
BEFORE   $0.00 Now $114.65
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

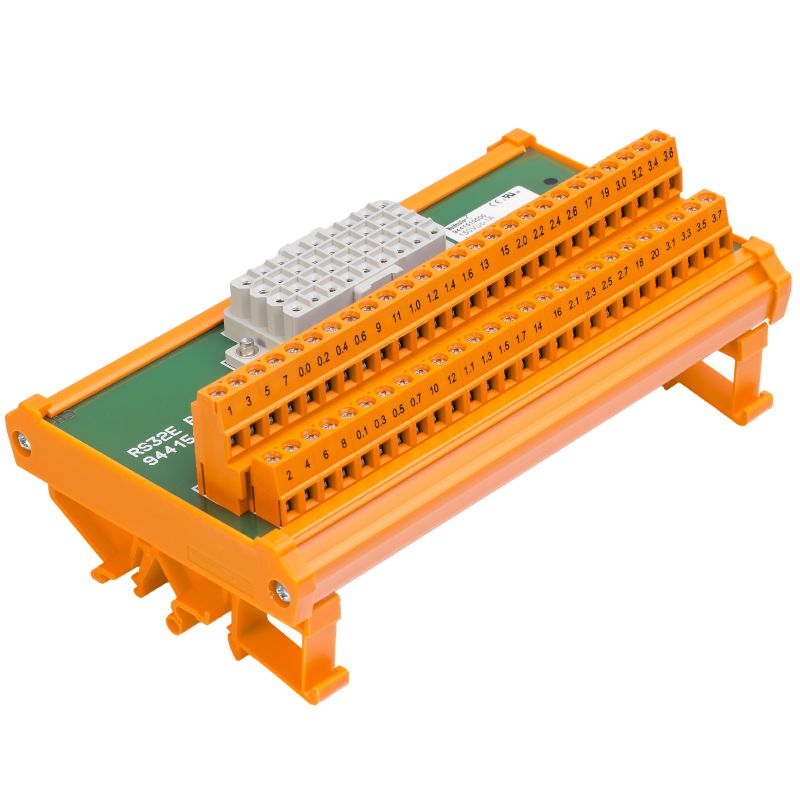

Introducing the RS 32IO 1W R S, a sophisticated device engineered with a 1-wire interface for screw connection applications Fully compliant with RoHS standards, it carries a UL recognition certification (E141197) for added assurance This device boasts a compact form factor with dimensions of 148 mm in width, 87 mm in height, and 72 mm in depth, making it easy to integrate into a variety of setups Weighing only 240.

24 g, it is lightweight yet sturdy, operating efficiently within a temperature range of -25 to 50 °C The connection side features a 36-pole female configuration, providing reliable and robust electrical connectivity for your projects.

Features and Benefits:

    •ROHS compliant with exemption 6c.

    •LED status display per channel is not included.

    •No disconnection per channel or type of test point provided.

    •Connection for field side is LM2N 5.08 mm.

Specifications:

 Depth 72 mm
 Height 87 mm
 Width 148 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Operating voltage 150 V UC
 Max. current per channel 1 A
 Total operating current 3 A
 Rated current I N 1 A
 Rated voltage U N 142 V
 Rated voltage DC U N 24 V
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage <150 V AC
 Surge voltage category II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 1.5 kV
 Insulation test voltage AC 1.1 kV
 Clamping range 0.2 mm² to 2.5 mm²
 Stripping length 6 mm
 Tightening torque 0.5 Nm to 0.6 Nm
 Type of connection Screw connection
