9447160000 - RSM-16 Device, 68mm x 109mm x 263mm, RoHS Compliant

9447160000 - RSM-16 Device, 68mm x 109mm x 263mm, RoHS Compliant

SKU: 9447160000 Download PDF

Variant:
  • 9447160000 - RSM-16 Device, 68mm x 109mm x 263mm, RoHS Compliant
Now $366.39
BEFORE   $0.00 Now $366.39
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

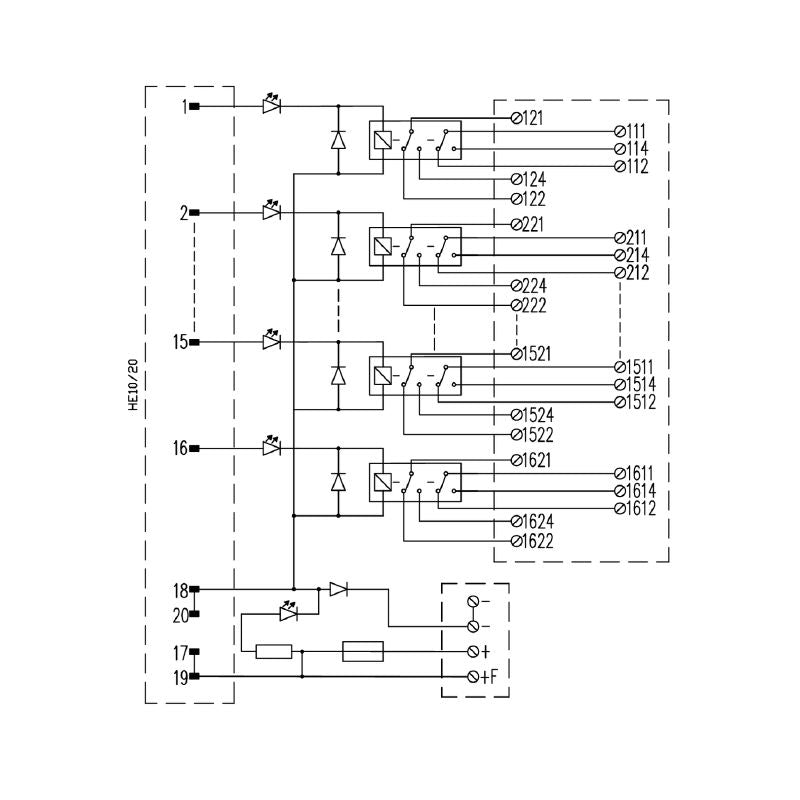

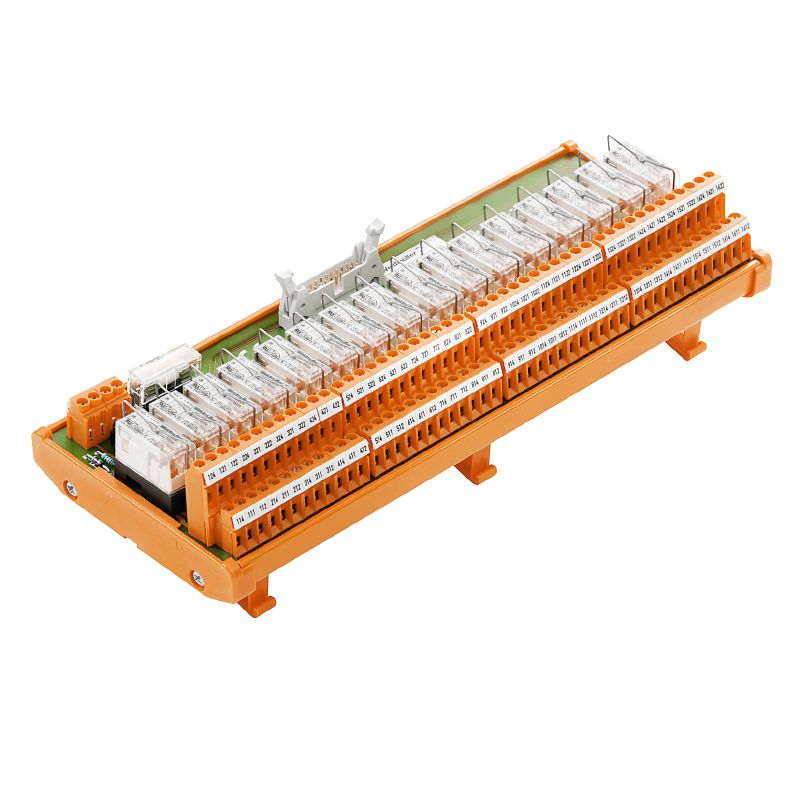

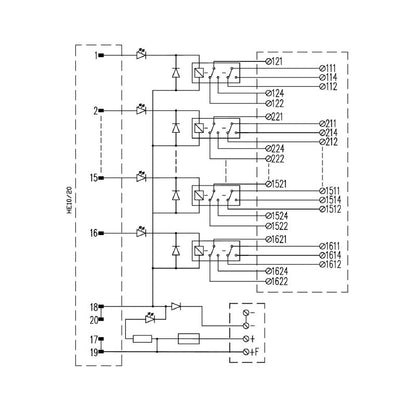

Introducing the RSM-16 2CO Z device, a RoHS-compliant solution featuring a reliable RCL with a tension-clamp connection Identified by the order number 9447160000 and GTIN 4032248253135, this device boasts compact dimensions of 263 mm in width, 109 mm in height, and a depth of 68 mm Weighing in at a net total of 830 g, it combines both functionality and design for your needs.

Features and Benefits:

    •LED status display for each relay.

    •Fuse not included per relay.

    •LED status indicator for supply voltage.

    •Power supply fuse rated at 3.15 A.

    •Tension-clamp connections for field and supply sides.

Specifications:

 Storage temperature -40...60 °C
 Operating temperature -25...40 °C
 Mechanical service life 3 x 10^7 switching cycles
 Input voltage 24 V DC ± 10%
 Input current 17 mA
 Power rating 0.4 VA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 Vdc ≤ 250 Vac
 Max. AC continuous current 4 A
 AC peak current 16 A
 Minimum contact current 0.01 A
 Minimum contact voltage 10 V
 Insulation coordinates (EN50178) According to DIN EN 50178
 Rated input insulation voltage < 50 V AC
 Rated output insulation voltage < 250 V AC
 Overvoltage category input/input III
 Overvoltage category input/output III
 Overvoltage category output/output II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 2.5 kV
 Clearance input/output ≥ 5.5 mm
 Clearance input/input ≥ 0.2 mm
 Clearance output/output ≥ 1.17 mm
 Clamping range, max. 1.5 mm²
 Clamping range, min. 0.15 mm²
 Flexible with sleeve, max. 1.5 mm²
 Flexible, max. H05(07) V-K 1.5 mm²
 Flexible, min. H05(07) V-K 0.5 mm²
 Max. wire cross-section, AWG AWG 14
 Min. wire cross-section, AWG AWG 26
 Solid, max. H05(07) V-U 1.5 mm²
 Solid, min. H05(07) V-U 0.5 mm²
 Stripping length 7 mm
 Type of connection Tension-clamp connection
