9445000000 - Compact Interface Device, 68mm x 110mm x 109mm, RoHS Compliant

9445000000 - Compact Interface Device, 68mm x 110mm x 109mm, RoHS Compliant

SKU: 9445000000   Download PDF

Select a Variant:
  • 9445000000 - Compact Interface Device, 68mm x 110mm x 109mm, RoHS Compliant
Qty:
Now $120.55   Web pricing policy
BEFORE   $0.00 Now $120.55 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

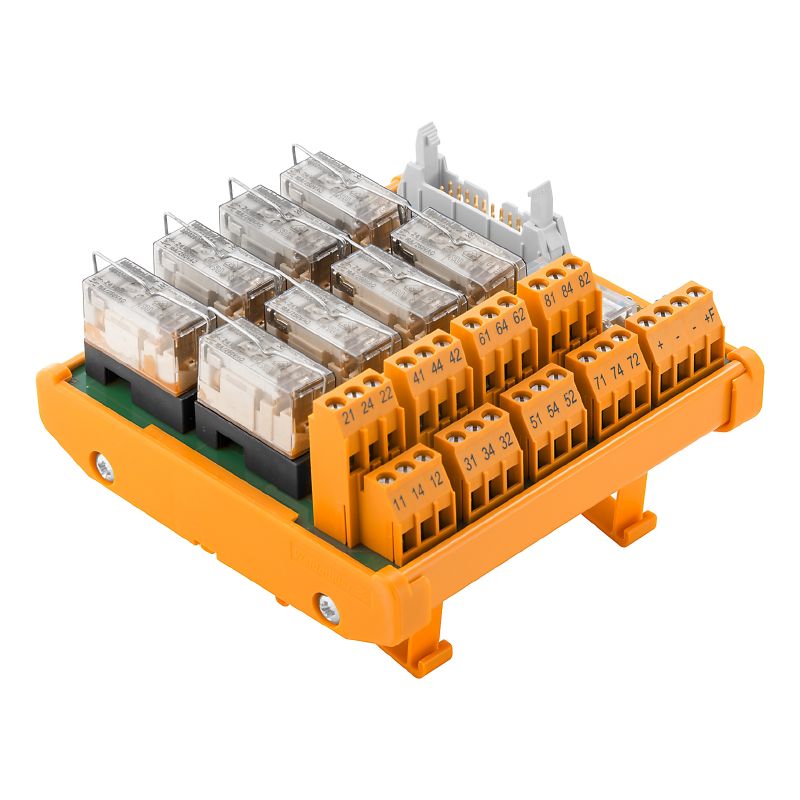

Introducing the RSM-8 C 1CO S, a versatile and compact interface device ideal for screw connections This device measures 68 mm deep, 109 mm high, and 110 mm wide (approximately 27 in × 43 in × 43 in) and has a weight of 388 grams It is built to perform reliably in a range of temperatures: it can be stored from -40 to 60 °C and operates efficiently between -25 to 50 °C The device is RoHS compliant, with specific exemptions for certain substances.

Equipped with LED status indicators, it displays a green light for relays and a yellow light for supply voltage It includes a power supply fuse of 315 A and boasts an impressive mechanical service life of up to 30 million switching cycles, making it a robust choice for your needs.

Features and Benefits:

    •Compact design for easy integration.

    •LED indicators for operational status.

    •Screw connection type for secure installation.

    •Wide operating temperature range.

    •RoHS compliant.

Specifications:

 Depth 68 mm (2.677 inch)
 Height 109 mm (4.291 inch)
 Width 110 mm (4.331 inch)
 Net weight 388 g
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 LED status display per relay green
 Fuse per relay No
 LED status of the supply voltage yellow
 Power supply fuse 3.15 A
 Input voltage 24 V DC ± 10%
 Input current 20 mA
 Power rating 0.4 VA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 Vdc ≤ 250 Vac
 Max. AC continuous current 5 A
 AC peak current 16 A
 Minimum contact current 0.01 A
 Minimum contact voltage 10 V
 Insulation coordinates (EN50178) According to DIN EN 50178
 Rated input insulation voltage < 50 V AC
 Rated output insulation voltage < 250 V AC
 Overvoltage category input/input III
 Overvoltage category input/output III
 Overvoltage category output/output II
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Clearance input/output ≥ 5.5 mm
 Clearance input/input ≥ 0.2 mm
 Clearance output/output ≥ 1.17 mm
