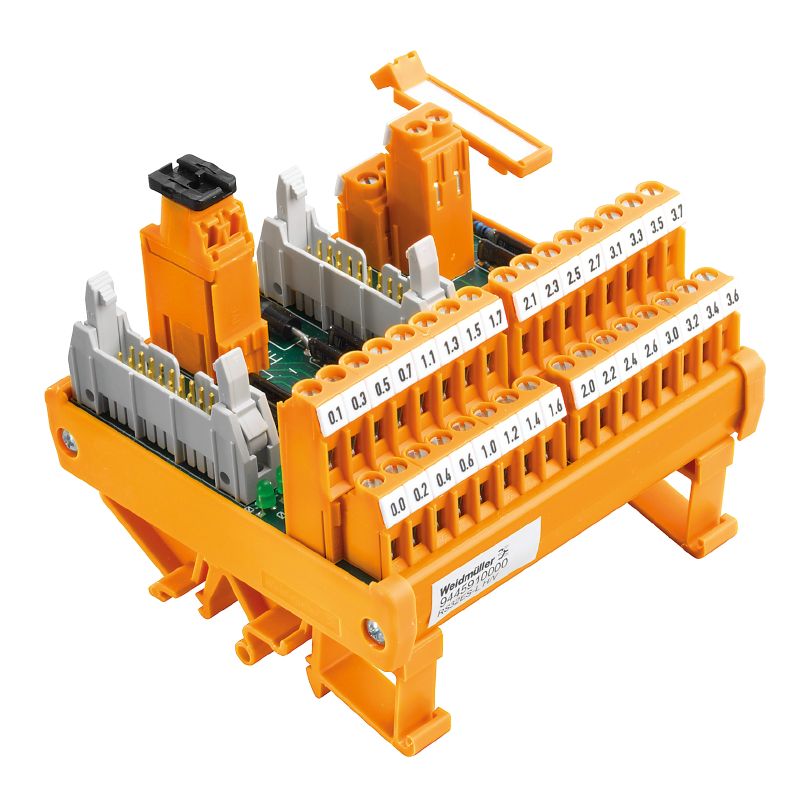

9445910000 - RS One-Wire LED Interface with Status Indicators

SKU: SKU: 9445910000 Download PDF

Select a Variant:

9445910000 - RS One-Wire LED Interface with Status Indicators

SET THE QTY:

Now $148.10 Web pricing policy

~~BEFORE $0.00~~ Now $148.10 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience reliable connectivity with the RS 32IO 1W L H S interface This device features an LED-driven one-wire screw connection and meets ROHS compliance standards It operates efficiently within designated temperature ranges and is optimized for varied environmental conditions The interface is equipped with a yellow LED to indicate supply voltage and a green LED for channel status, making monitoring straightforward.

With a total current handling capability of 2 A, it is perfectly suited for control and field side connections, accommodating a versatile clamping range for different wire sizes.

Features and Benefits:

•LED status display per channel.

•Disconnection feature not available per channel.

•No test points included.

•No fuses provided for each channel.

•Common pole polarity feature not present.

Specifications:

Depth (mm)	72
Height (mm)	87
Width (mm)	90
Net weight (g)	208
Storage temperature (°C)	-40...60
Operating temperature (°C)	-25...50
Operating voltage	24 V DC ± 10%
Max. current per channel	1 A
Total operating current	2 A
Rated insulation voltage	< 50 V AC
Surge voltage category	III
Pollution severity level	2
Insulation test voltage AC (kV)	0.35
Clamping range, max. (mm²)	6
Clamping range, min. (mm²)	0.13
Sleeve with plastic collar, max. (mm²)	2.5
Stripping length (mm)	6
Tightening torque, max. (Nm)	0.6
Tightening torque, min. (Nm)	0.5
Type of connection	Screw connection
