Description:

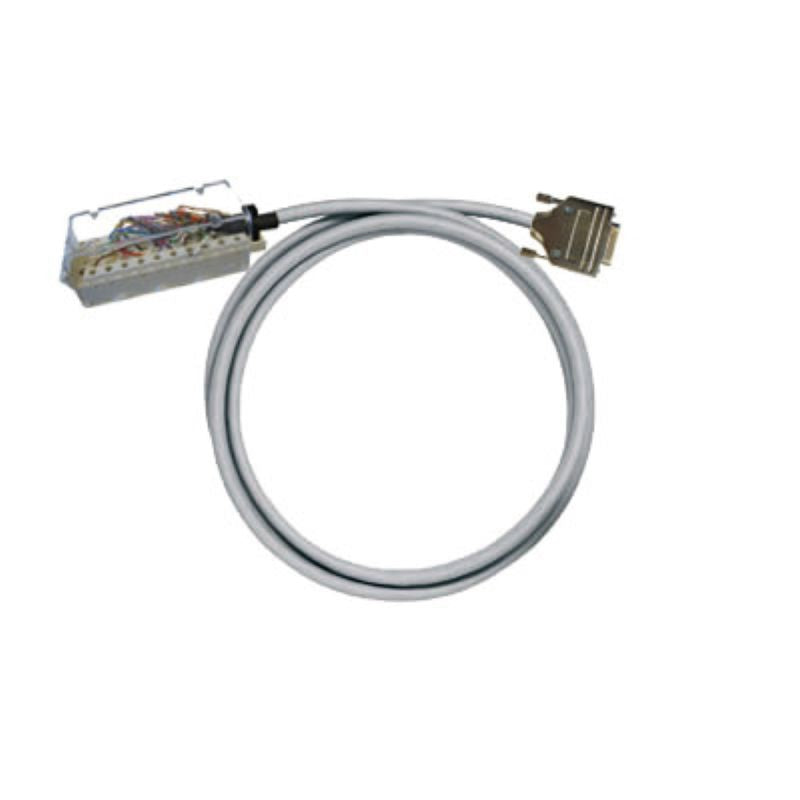

Introducing the PAC-M340-SD25-V1-3M, a pre-assembled cable crafted from durable PVC material, featuring a cross-section of 025 mm² This cable spans an impressive 3 meters in length and is optimized for transmitting analog signals With an outer diameter of 1015 ± 1 mm, it ensures compatibility with various applications On one end, it connects effortlessly to a SCHNEIDER BMX FTB 2000 20P connector, while the other end is equipped with a SUB-D FEMALE 25P interface connector, making it a versatile choice for your connectivity needs.

Features and Benefits:

•Approved for RoHS compliance.

•High voltage test passed at 1 KV for 1 second.

•Permissible current strength is up to 1 A per path.

•Rated for voltage up to 60 V DC and 25 V AC.

•Maximum total current capacity is 3 A.

•Resistance is ≤ 80 mΩ/m.

•Suitable for analog signal transmission.
