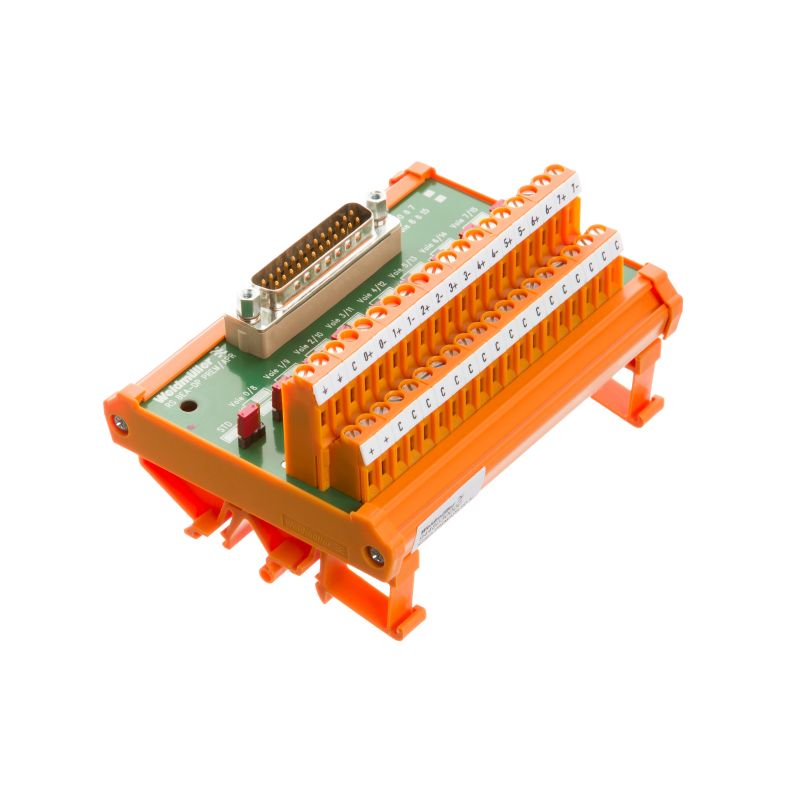

9448030000 - RS 2-Wire Interface Module, 72mm Deep, 206.8g

9448030000 - RS 2-Wire Interface Module, 72mm Deep, 206.8g

SKU: 9448030000   Download PDF

Select a Variant:
  • 9448030000 - RS 2-Wire Interface Module, 72mm Deep, 206.8g
Qty:
Now $186.90   Web pricing policy
BEFORE   $0.00 Now $186.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a reliable unit equipped with an RS interface, featuring a straightforward 2-wire screw connection With dimensions measuring 116 mm in width, 87 mm in height, and a depth of 72 mm, this compact device weighs in at just 2068 grams It operates effectively in temperatures ranging from -20°C to 50°C and can be safely stored in environments from -40°C to 60°C Compliant with environmental standards, it meets RoHS requirements with specific exemptions.

The unit supports a maximum rated current of 05 A and is capable of handling voltages up to 25 V AC and 50 V DC Additionally, it operates at a rated supply voltage of 24 V, with the common pole accommodating a maximum current of 315 A Perfect for various electronic applications, this device combines functionality with compliance.

Features and Benefits:

    •Two-wire design for efficient connectivity.

    •Screw connection type for secure attachment.

    •Compact dimensions suitable for various applications.

    •LED status display feature not included.

Specifications:

 Depth 72 mm
 Height 87 mm
 Width 116 mm
 Net weight 206.8 g
 Storage temperature -40...60 °C
 Operating temperature -20...50 °C
 Rated current I max 0.5 A
 Rated voltage UN ≤ 25 V AC / 50 V DC
 Rated voltage DC UN (supply) 24 V
 Rated current (supply) 3 A
 Max. current per channel 0.5 A
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage <50 V AC
 Surge voltage category III
 Pollution severity level 2
 Connection on control side D-sub connectors, acc. to IEC 60807 / DIN 41652
 Type of connection Screw connection
 Clamping range, max 6 mm²
 Clamping range, min 0.13 mm²
 Stripping length 6 mm
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
