9448020000 - Compact 205mm Screw Connection Interface, RoHS & UL Certified

9448020000 - Compact 205mm Screw Connection Interface, RoHS & UL Certified

SKU: 9448020000   Download PDF

Select a Variant:
  • 9448020000 - Compact 205mm Screw Connection Interface, RoHS & UL Certified
Qty:
Now $189.48   Web pricing policy
BEFORE   $0.00 Now $189.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a versatile product equipped with a 2-wire interface and a reliable screw connection, making it suitable for a variety of applications This item proudly holds multiple certifications, including RoHS and UL, validated by certificate number E141197 Measuring 205 mm in width, 81 mm in depth, and 87 mm in height, it has a lightweight design at just 394 g Furthermore, this unit operates efficiently within a storage temperature range of -40 to 60 °C, while functioning effectively at an operational temperature of -20 to 50 °C.

Features and Benefits:

    •RoHS compliant with exemptions.

    •Contains lead as a registered substance.

    •Common pole polarity can be selected using a jumper.

    •2-wire wiring system for connection.

Specifications:

 Depth 81 mm
 Height 87 mm
 Width 205 mm
 Net weight 394 g
 Operating temperature UL, max 25 °C
 Operating temperature UL, min 0 °C
 Rated current I N 0.5 A
 Rated current I max 0.5 A
 Rated voltage U N ≤ 25 V AC 50 V DC
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 3 A
 Rated voltage fuse U N (supply) 250 V
 Rated current fuse (supply) 3.15 A
 LED status display per channel No
 Disconnection per channel No
 Voltage point of measurement No
 Current-measuring testpoint No
 Type of test point No
 LED status of the supply voltage No
 Power supply fuse 3.15 A
 Connection (field side) LP2N 5.08mm

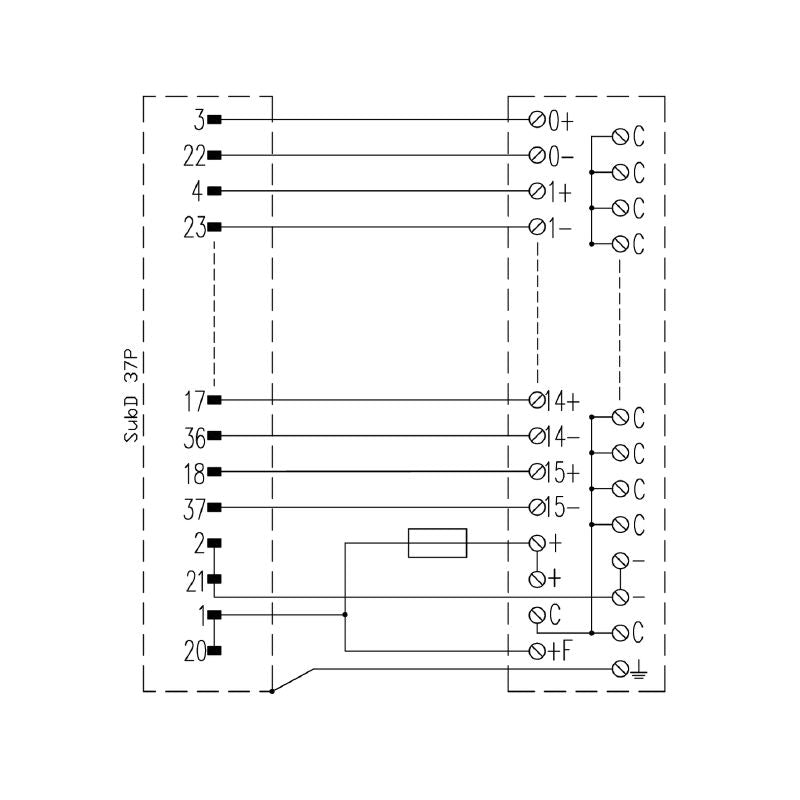

 Connection on control side D-sub connectors, acc. to IEC 60807 / DIN 41652
 Connection supply LL2N 5.08 mm
 Number of poles (control side) 37-pole plug
 Insulation coordination (EN50178) According to DIN EN 50178
 Rated insulation voltage <50 V AC
 Surge voltage category III
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 0.8 kV
 Insulation test voltage AC 0.35 kV
 Clamping range, max 6 mm²
 Clamping range, min 0.13 mm²
 Flexible with sleeve, max 2.5 mm²
 Flexible with sleeve, min 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
 Type of connection Screw connection
