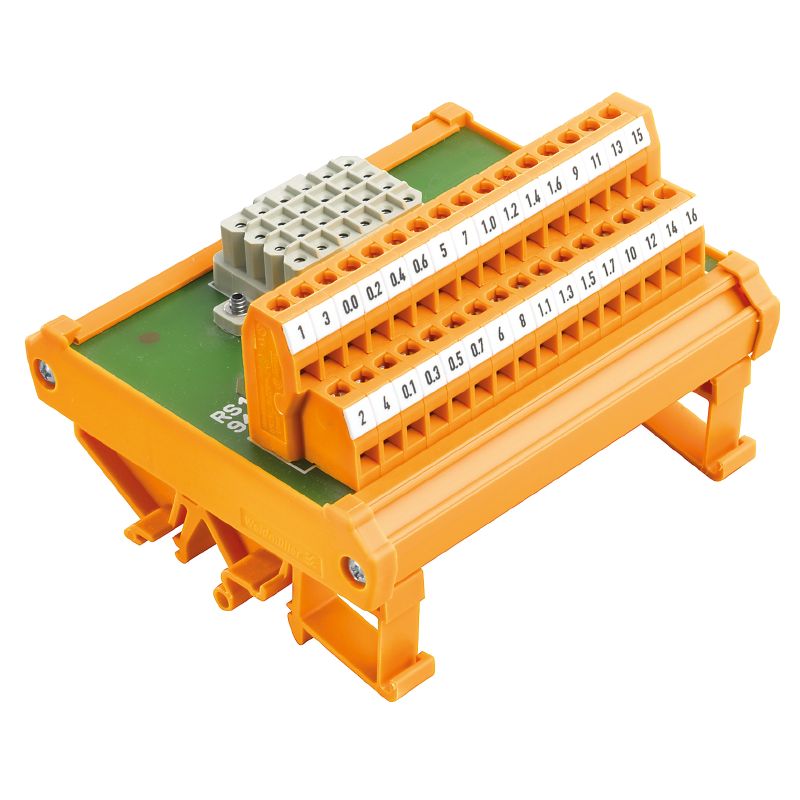

9441500000 - RS Interface 1-Wire Connector, 97mm x 87mm x 68mm

SKU: SKU: 9441500000 Download PDF

Select a Variant:

9441500000 - RS Interface 1-Wire Connector, 97mm x 87mm x 68mm

SET THE QTY:

Now $75.13 Web pricing policy

~~BEFORE $0.00~~ Now $75.13 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

This component is equipped with an RS interface featuring a 1-wire screw connection, ensuring reliable connectivity It adheres to RoHS standards, confirming its compliance with environmental regulations Measuring 97 mm in width, 87 mm in height, and 68 mm in depth, the unit has a net weight of 207 grams It functions across a wide range of temperatures, suitable for storage from -40 to 60 °C and operational use between -25 to 50 °C.

Its diverse connection capabilities and rated data attributes make it ideal for a variety of applications.

Features and Benefits:

•Compliant with RoHS and has exemptions.

•LED status display not present per channel.

•No disconnection per channel.

•Features no fuse or test point per channel.

Specifications:

Depth	68 mm
Height	87 mm
Width	97 mm
Operating temperature UL, max	25 °C
Operating temperature UL, min	0 °C
Rated current I	1 A
Rated current I max	1 A
Rated voltage U N (supply)	24 V
Total operating current	3 A
Rated insulation voltage	<150 V AC
Surge voltage category	II
Pollution severity level	2
Pulse voltage test (1,2/50μs)	1.5 kV
Connection (field side)	LM2N 5.08 mm
Clamping range, max	2.5 mm²
Clamping range, min	0.2 mm²
Stripping length	6 mm
Tightening torque, max	0.6 Nm
Tightening torque, min	0.5 Nm
Type of connection	Screw connection
